更新记录

1.0（2023-05-31）

组件初始化

平台兼容性

使用方法

    <!-- 引入加入 导出pdf插件 -->
    <script type="text/javascript" src="./static/html2canvas.js"></script>
    <script type="text/javascript" src="./static/jspdf.debug.js"></script>

            //  调用页面加水印方法
            this.watermark({
                "watermark_txt": "中国广东cc.gd"
            });

// 调用下载pdf报告方法
            downKcReport();

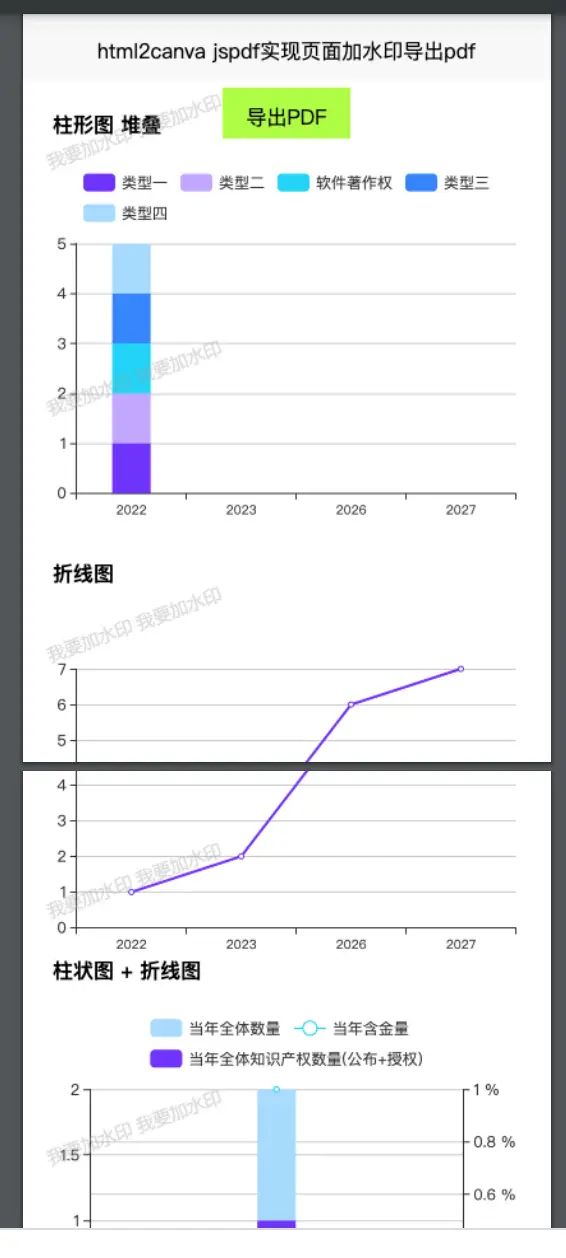

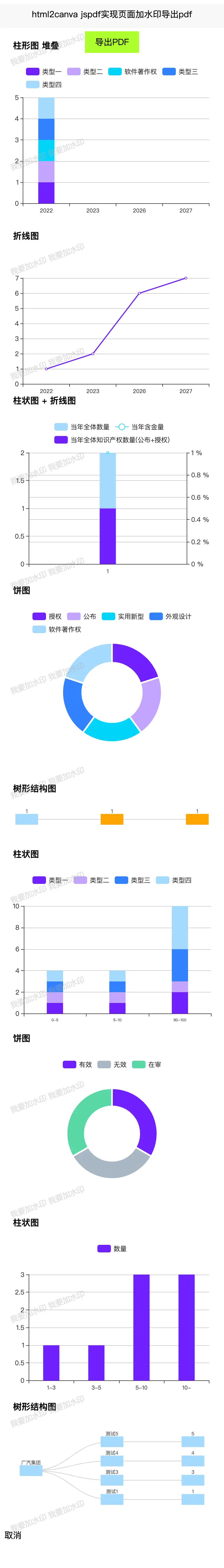

HTML代码部分

<template>
    <view class="content">

        <view class="exportPdfBtn" @click="downKcReport()">导出PDF</view>

        <!-- 可视化 -->
        <view style="background-color: white; border-radius: 4px; margin-top: -4px;">

            <!-- 柱形图 堆叠 -->
            <h4 style="margin-left: 12px; font-size: 16px; height: 30px; line-height: 30px;"> 柱形图 堆叠
            </h4>
            <div class="mui-content-padded">

                <div id="dsj_zscq" style="width: calc(100vw - 40px); height: 280px;"></div>

            </div>

            <!-- 折线图 -->
            <h4 style="margin-left: 12px; font-size: 16px; height: 30px; line-height: 30px;"> 折线图
            </h4>
            <div class="mui-content-padded">

                <div id="dsj_cxcg" style="width: calc(100vw - 40px); margin: -18px 0px; height: 280px;">
                </div>

            </div>

            <!-- 柱状图 + 折线图-->
            <h4 style="margin-left: 12px; font-size: 16px; height: 30px; line-height: 30px; margin-top: 0px;">
                柱状图 + 折线图 </h4>
            <div class="mui-content-padded">

                <div id="dsj_zlhjl" style="width: calc(100vw - 40px); height: 290px;"></div>

            </div>

            <!-- 有效知识产权结构 -->
            <h4 style="margin-left: 12px; font-size: 16px; height: 30px; line-height: 30px; margin-top: 0px;">
                饼图 </h4>
            <div class="mui-content-padded">

                <div id="dsj_zscqjg" style="width: calc(100vw - 40px); height: 306px;"></div>

            </div>

            <!-- 专利iPC结构 -->
            <h4 style="margin-left: 12px; font-size: 16px; height: 30px; line-height: 30px; margin-top: 0px;">
                树形结构图 </h4>
            <div class="mui-content-padded">

                <div id="dsj_zlipc_content"
                    style="margin-left: -10px;  width: calc(100vw - 40px); height: auto; margin-bottom: 30px;">
                </div>

            </div>

            <!-- 柱状图 -->
            <h4 style="margin-left: 12px; font-size: 16px; height: 30px; line-height: 30px; margin-top: 0px;">
                柱状图 </h4>
            <div class="mui-content-padded">

                <div id="dsj_zljz" style="width: calc(100vw - 40px); height: 280px;"></div>

            </div>

            <!-- 专利法律状态分布 -->
            <h4 style="margin-left: 12px; font-size: 16px; height: 30px; line-height: 30px; margin-top: 0px;">
                饼图 </h4>
            <div class="mui-content-padded">

                <div id="dsj_zlfl" style="width: calc(100vw - 40px); height: 280px;"></div>

            </div>

            <!-- 专利寿命分布 -->
            <h4 style="margin-left: 12px; font-size: 16px; height: 30px; line-height: 30px; margin-top: 0px;">
                柱状图 </h4>
            <div class="mui-content-padded">

                <div id="dsj_zlsm" style="width: calc(100vw - 40px); height: 280px;"></div>

            </div>

            <!-- 树形结构图 -->
            <h4 style="margin-left: 12px; font-size: 16px; height: 30px; line-height: 30px; margin-top: 0px;">
                树形结构图 </h4>
            <div class="mui-content-padded">

                <div id="dsj_zllhsq" style="width: calc(100vw - 40px); height: auto; margin-bottom: 30px;">
                </div>

            </div>

        </view>
    </view>
</template>

JS代码 （引入组件 填充数据）

<script>
    import myIndex from '../index/index.js'

    export default {
        data() {
            return {
                title: 'Hello'
            }
        },
        mounted() {

            // 刷新Echart数据
            this.refreshEchartData();

        },

        onLoad() {

            //  页面加水印方法
            this.watermark({
                "watermark_txt": "中国广东cc.gd"
            });

        },
        methods: {

            //  页面加水印方法
            watermark(settings) {

                //默认设置
                var defaultSettings = {
                    watermark_txt: "text",
                    watermark_x: 20, //水印起始位置x轴坐标
                    watermark_y: 80, //水印起始位置Y轴坐标
                    watermark_rows: 80, //水印行数
                    watermark_cols: 20, //水印列数
                    watermark_x_space: 80, //水印x轴间隔
                    watermark_y_space: 102, //水印y轴间隔
                    watermark_color: '#aaa', //水印字体颜色
                    watermark_alpha: 0.4, //水印透明度
                    watermark_fontsize: '14px', //水印字体大小
                    watermark_font: '微软雅黑', //水印字体
                    watermark_width: 180, //水印宽度
                    watermark_height: 80, //水印长度
                    watermark_angle: 20 //水印倾斜度数
                };
                //采用配置项替换默认值，作用类似jquery.extend
                if (arguments.length === 1 && typeof arguments[0] === "object") {

                    console.log("arguments = " + JSON.stringify(arguments[0]));
                    // 获取参数配置
                    var src = arguments[0];
                    for (let key in src) {
                        if (src[key] && defaultSettings[key] && src[key] === defaultSettings[key])
                            continue;
                        else if (src[key])
                            defaultSettings[key] = src[key];
                    }
                }

                var oTemp = document.createDocumentFragment();

                //获取页面最大宽度
                var page_width = Math.max(document.body.scrollWidth, document.body.clientWidth);
                var cutWidth = page_width * 0.0150;
                var page_width = page_width - cutWidth;
                //获取页面最大高度
                var page_height = Math.max(document.body.scrollHeight, document.body.clientHeight) + 2860;
                // var page_height = document.body.scrollHeight+document.body.scrollTop;
                //如果将水印列数设置为0，或水印列数设置过大，超过页面最大宽度，则重新计算水印列数和水印x轴间隔
                if (defaultSettings.watermark_cols == 0 || (parseInt(defaultSettings.watermark_x + defaultSettings
                        .watermark_width * defaultSettings.watermark_cols + defaultSettings.watermark_x_space * (
                            defaultSettings.watermark_cols - 1)) > page_width)) {
                    defaultSettings.watermark_cols = parseInt((page_width - defaultSettings.watermark_x + defaultSettings
                        .watermark_x_space) / (defaultSettings.watermark_width + defaultSettings
                        .watermark_x_space));
                    defaultSettings.watermark_x_space = parseInt((page_width - defaultSettings.watermark_x -
                        defaultSettings
                        .watermark_width * defaultSettings.watermark_cols) / (defaultSettings.watermark_cols - 1));
                }
                //如果将水印行数设置为0，或水印行数设置过大，超过页面最大长度，则重新计算水印行数和水印y轴间隔
                if (defaultSettings.watermark_rows == 0 || (parseInt(defaultSettings.watermark_y + defaultSettings
                        .watermark_height * defaultSettings.watermark_rows + defaultSettings.watermark_y_space * (
                            defaultSettings.watermark_rows - 1)) > page_height)) {
                    defaultSettings.watermark_rows = parseInt((defaultSettings.watermark_y_space + page_height -
                        defaultSettings
                        .watermark_y) / (defaultSettings.watermark_height + defaultSettings.watermark_y_space));
                    defaultSettings.watermark_y_space = parseInt(((page_height - defaultSettings.watermark_y) -
                        defaultSettings
                        .watermark_height * defaultSettings.watermark_rows) / (defaultSettings.watermark_rows - 1));
                }
                var x;
                var y;
                for (var i = 0; i < defaultSettings.watermark_rows; i++) {
                    y = defaultSettings.watermark_y + (defaultSettings.watermark_y_space + defaultSettings
                        .watermark_height) * i;
                    for (var j = 0; j < defaultSettings.watermark_cols; j++) {
                        x = defaultSettings.watermark_x + (defaultSettings.watermark_width + defaultSettings
                                .watermark_x_space) *
                            j;

                        var mask_div = document.createElement('div');
                        mask_div.id = 'mask_div' + i + j;
                        mask_div.className = 'mask_div';
                        mask_div(document.createTextNode(defaultSettings.watermark_txt));
                        //设置水印div倾斜显示
                        mask_div.style.webkitTransform = "rotate(-" + defaultSettings.watermark_angle + "deg)";
                        mask_div.style.MozTransform = "rotate(-" + defaultSettings.watermark_angle + "deg)";
                        mask_div.style.msTransform = "rotate(-" + defaultSettings.watermark_angle + "deg)";
                        mask_div.style.OTransform = "rotate(-" + defaultSettings.watermark_angle + "deg)";
                        mask_div.style.transform = "rotate(-" + defaultSettings.watermark_angle + "deg)";
                        mask_div.style.visibility = "";
                        mask_div.style.position = "absolute";
                        mask_div.style.left = x + 'px';
                        mask_div.style.top = y + 'px';
                        mask_div.style.overflow = "hidden";
                        mask_div.style.zIndex = "9999";
                        mask_div.style.pointerEvents = 'none'; //pointer-events:none  让水印不遮挡页面的点击事件
                        //mask_div.style.border="solid #eee 1px";
                        mask_div.style.opacity = defaultSettings.watermark_alpha;
                        mask_div.style.fontSize = defaultSettings.watermark_fontsize;
                        mask_div.style.fontFamily = defaultSettings.watermark_font;
                        mask_div.style.color = defaultSettings.watermark_color;
                        mask_div.style.textAlign = "center";
                        mask_div.style.width = defaultSettings.watermark_width + 'px';
                        mask_div.style.height = defaultSettings.watermark_height + 'px';
                        mask_div.style.display = "block";
                        oTemp(mask_div);
                    };
                };
                document.body(oTemp);
            },

            // 下载pdf报告
            downKcReport() {

                html2canvas(
                    document.body, {
                        scale: 2,
                        dpi: 192, //导出pdf清晰度
                        onrendered: function(canvas) {
                            var contentWidth = canvas.width;
                            var contentHeight = canvas.height;

                            //一页pdf显示html页面生成的canvas高度;
                            var pageHeight = contentWidth / 592.28 * 841.89;
                            //未生成pdf的html页面高度
                            var leftHeight = contentHeight;
                            //pdf页面偏移
                            var position = 0;
                            //html页面生成的canvas在pdf中图片的宽高（a4纸的尺寸[595.28,841.89]）
                            var imgWidth = 595.28;
                            var imgHeight = 592.28 / contentWidth * contentHeight;

                            var pageData = canvas.toDataURL('image/jpeg', 1.0);
                            var pdf = new jsPDF('', 'pt', 'a4');

                            //有两个高度需要区分，一个是html页面的实际高度，和生成pdf的页面高度(841.89)
                            //当内容未超过pdf一页显示的范围，无需分页
                            if (leftHeight < pageHeight) {
                                pdf.addImage(pageData, 'JPEG', 0, 0, imgWidth, imgHeight);
                            } else {
                                while (leftHeight > 0) {
                                    pdf.addImage(pageData, 'JPEG', 0, position, imgWidth, imgHeight)
                                    leftHeight -= pageHeight;
                                    position -= 841.89;
                                    //避免添加空白页
                                    if (leftHeight > 0) {
                                        pdf.addPage();
                                    }
                                }
                            }
                            pdf.save(name + '.pdf');
                            console.log('成功导出pdf');

                        },
                        //背景设为白色（默认为黑色）
                        background: "#fff"
                    })

            },

            refreshEchartData() {

                // 返回数据需在json转换格式工具 转成Json格式
                let result = {
                    "data": {
                        "unionCompanyNum": 4,
                        "goldList": [{
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "fmsqYx": "1",
                            "cfmwyxzscqsl": "1",
                            "years": "1",
                            "yxzscqsl": "1",
                            "dnzlhjl": "1"
                        }],
                        "patentLifeList": [{
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "percentage": "1",
                            "quantity": "1",
                            "scope": "1-3",
                            "totalNum": "1"
                        }, {
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "percentage": "1",
                            "quantity": "1",
                            "scope": "3-5",
                            "totalNum": "2"
                        }, {
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "percentage": "1",
                            "quantity": "3",
                            "scope": "5-10",
                            "totalNum": "3"
                        }, {
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "percentage": "1",
                            "quantity": "3",
                            "scope": "10-",
                            "totalNum": "4"
                        }],
                        "patentValueList": [{
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "fmgbZs": "1",
                            "fmsqYx": "1",
                            "syxxYx": "1",
                            "wgsjYx": "1",
                            "scope": "0-5",
                            "totalNum": "1",
                            "percentageHighRights": "1",
                            "percentageHigh": "1",
                            "dspw": "1",
                            "jslypw": "1"
                        }, {
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "fmgbZs": "1",
                            "fmsqYx": "1",
                            "syxxYx": "1",
                            "wgsjYx": "1",
                            "scope": "5-10",
                            "totalNum": "1",
                            "percentageHighRights": "1",
                            "percentageHigh": "1",
                            "dspw": "1",
                            "jslypw": "1"
                        }, {
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "fmgbZs": "1",
                            "fmsqYx": "2",
                            "syxxYx": "3",
                            "wgsjYx": "4",
                            "scope": "90-100",
                            "totalNum": "10"
                        }],
                        "legalList": [{
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "underTrial": "1",
                            "invalid": "1",
                            "efficient": "1",
                            "totalNum": "1",
                            "percentage": "1"
                        }],
                        "propertyRightList": [{
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "fmgbZs": "1",
                            "fmgbZsP": "1",
                            "fmsqYx": "1",
                            "fmsqYxP": "1",
                            "syxxYx": "1",
                            "syxxYxP": "1",
                            "wgsjYx": "1",
                            "wgsjYxP": "1",
                            "rzYx": "1",
                            "rzYxP": "1",
                            "maxPercentage": "1",
                            "maxPercentageRights": "1",
                            "dspw": "1",
                            "jslypw": "1"
                        }],
                        "unionPatentNum": 13,
                        "ipcList": [{
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "ipcDept": "1",
                            "ipcClass": "1",
                            "ipcNum": "1",
                            "ipcZbClass": "1",
                            "ipcZb": "1",
                            "dspw": "1",
                            "jslypw": "1"
                        }],
                        "yearList": [{
                            "isNewRecord": true,
                            "comId": "1",
                            "fmgbZs": "1",
                            "fmsqYx": "1",
                            "syxxYx": "1",
                            "wgsjYx": "1",
                            "rzYx": "1",
                            "years": "2022",
                            "dnkjcxcgkbjshl": "1",
                            "socialCode": "123456"
                        }, {
                            "isNewRecord": true,
                            "comId": "1",
                            "years": "2023",
                            "dnkjcxcgkbjshl": "2",
                            "socialCode": "123456"
                        }, {
                            "isNewRecord": true,
                            "comId": "1",
                            "years": "2026",
                            "dnkjcxcgkbjshl": "6",
                            "socialCode": "123456"
                        }, {
                            "isNewRecord": true,
                            "comId": "1",
                            "years": "2027",
                            "dnkjcxcgkbjshl": "7",
                            "socialCode": "123456"
                        }],
                        "unionList": [{
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "unionName": "测试5",
                            "unionNum": "5",
                            "unionCompany": "1"
                        }, {
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "unionName": "测试4",
                            "unionNum": "4",
                            "unionCompany": "1"
                        }, {
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "unionName": "测试3",
                            "unionNum": "3",
                            "unionCompany": "1"
                        }, {
                            "isNewRecord": true,
                            "comId": "1",
                            "socialCode": "123456",
                            "unionName": "测试1",
                            "unionNum": "1",
                            "unionCompany": "1"
                        }]
                    },
                    "statusCode": 200,
                    "header": {
                        "date": "Tue, 30 May 2023 07:08:28 GMT",
                        "powered-by": "JeeSite V5.0.1 0",
                        "transfer-encoding": "chunked",
                        "content-type": "application/json"
                    },
                    "errMsg": "request:ok"
                };

                let resultData = result.data;

                if (resultData.yearList != undefined && resultData.yearList.length > 0) {
                    console.log('执行图表1');
                    // 填充图表1 2
                    myIndex.fillChartOneTwo(resultData.yearList);

                }
                if (resultData.goldList != undefined && resultData.goldList.length > 0) {

                    // 填充图表3
                    myIndex.fillChartThree(resultData.goldList);

                }
                if (resultData.propertyRightList != undefined && resultData.propertyRightList.length > 0) {

                    // 填充图表4
                    myIndex.fillChartFour(resultData.propertyRightList);

                }
                if (resultData.ipcList != undefined && resultData.ipcList.length > 0) {

                    // 填充图表5
                    myIndex.fillChartFive(resultData.ipcList);

                }
                if (resultData.patentValueList != undefined && resultData.patentValueList.length > 0) {

                    // 填充图表6
                    myIndex.fillChartSix(resultData.patentValueList);

                }
                if (resultData.legalList != undefined && resultData.legalList.length > 0) {

                    // 填充图表7 法律
                    myIndex.fillChartSeven(resultData.legalList);

                }
                if (resultData.patentLifeList != undefined && resultData.patentLifeList.length > 0) {

                    // 填充图表8 寿命
                    myIndex.fillChartEight(resultData.patentLifeList);

                }
                if (resultData.unionList != undefined && resultData.unionList.length > 0) {

                    // 填充图表9 专利联合
                    myIndex.fillChartNine(resultData, "广汽集团");

                }
            }

        }
    }
</script>

CSS

<style>
    .content {
        display: flex;
        flex-direction: column;
        align-items: center;
        justify-content: center;

    }

    .mui-content-padded {
        margin: 10px 8px;
    }

    .mui-content-padded div {

        font-size: 13px;
    }

    .exportPdfBtn {

        width: 100px;
        height: 40px;
        line-height: 40px;
        margin-top: 20px;
        background-color: greenyellow;
        text-align: center;
    }
</style>
