更新记录
1.0.10(2024-08-16)
- 修复高版本Android系统个别机型的适配问题
1.0.9(2024-03-27)
- Android补充系统文件选择器的支持
1.0.8(2024-01-09)
- 适配Android 10以后读取U盘文件方案
平台兼容性
Vue2 | Vue3 |
---|---|
√ | √ |
App | 快应用 | 微信小程序 | 支付宝小程序 | 百度小程序 | 字节小程序 | QQ小程序 |
---|---|---|---|---|---|---|
HBuilderX 3.6.8,Android:4.4,iOS:9,HarmonyOS:不确定 | × | × | × | × | × | × |
钉钉小程序 | 快手小程序 | 飞书小程序 | 京东小程序 |
---|---|---|---|
× | × | × | × |
H5-Safari | Android Browser | 微信浏览器(Android) | QQ浏览器(Android) | Chrome | IE | Edge | Firefox | PC-Safari |
---|---|---|---|---|---|---|---|---|
× | × | × | × | × | × | × | × | × |
读写外接U盘、移动硬盘、SD卡、缓存目录、数据目录、自定义目录等文件
常用文件处理插件
-
文件预览https://ext.dcloud.net.cn/plugin?id=17167
- 支持pdf/word/excel/ppt/图片,支持本地或在线文件
-
文件增删查改copy遍历https://ext.dcloud.net.cn/plugin?id=14130
- 文件读写、copy、move、遍历文件夹、是否存在、删除、重命名......等等
-
读取常用文件目录(包含U盘)https://ext.dcloud.net.cn/plugin?id=15243
- uniapp(_www、_doc、_download)
- Android(数据目录、文件目录、缓存目录、环境environment目录、SDCard目录、外接U盘)
- iOS(documentDirectory、temporaryDirectory、libraryDirectory、cachesDirectory)
- 从U盘读取或保存文件
-
读取本地相册图片视频音频https://ext.dcloud.net.cn/plugin?id=15711
- 获取相册图片、视频、音频文件
- 常用于自定义相册UI
读取U盘文件
- android通过getStorageVolumes接口直接获取到U盘路径,通过UTSFileUtils来遍历U盘路径下的所有文件
- ios受限系统没法直接读取到U盘路径,可以通过selectFile来拉起文件app,把用户选择到文件保存到自定义目录,通过UTSFileUtils来读取文件
- android 10需要采用系统文件选择器来获取或保存
- Android 11以后需要手动打开授予管理所有文件的权限,路径: 设置-》隐私与安全(或隐私保护) -》其他权限-》特殊权限设置-》所有文件访问权限-》选择app-》进入授权页面授权(授予管理所有文件的权限),开启权限后重启app,再进行usb授权后,进入u盘目录即可
写入文件到U盘
- android需要先获取USB文件授权(通过UTSUsbManager插件来请求USB权限),通过getStorageVolumes接口直接获取到U盘路径,通过UTSFileUtils将文件写入到U盘
- ios受限系统没法直接保存文件到U盘,可以通过saveFile来保存文件
获取app开发中常用到目录路径
- uniapp(_www、_doc、_download)
- Android(数据目录、文件目录、缓存目录、环境environment目录、SDCard目录)
- iOS(documentDirectory、temporaryDirectory、libraryDirectory、cachesDirectory)
demo里用到了文件插件(android和iOS对文件增删查改)https://ext.dcloud.net.cn/plugin?id=14130,即:
import {
UTSFileUtils
} from "@/uni_modules/wrs-uts-commonutils"
demo里用到了USB权限插件(android对USB授权,iOS不需要)https://ext.dcloud.net.cn/plugin?id=13300,即:
import {
UTSUsbManager,
} from "@/uni_modules/wrs-uts-usbmanager";
如果需要监听Android U盘的插拔和USB权限操作,可以使用这个插件https://ext.dcloud.net.cn/plugin?id=13300
如果需要写入数据到U盘,需要先请求USB权限
UTSUsbManager.getDeviceList((resp) => {
let devices = resp.devices;
if (devices.length > 0) {
let titles = [];
for (let i = 0; i < devices.length; i++) {
let device = devices[i];
let title = device.deviceName;
titles.push(title);
}
this.showActionSheet(titles, (index) => {
let device = devices[index];
let deviceId = device.deviceId;
let requestCode = this.requestCode;
let action = this.action;
let flags = 0;
UTSUsbManager.requestPermission(deviceId, requestCode, action, flags);
});
} else {
this.showToast("没有找到USB设备");
}
});
不熟悉UTS插件集成步骤的同学可以参数https://www.jianshu.com/p/830ccc503e29
Android配置
- 下载示例项目demo,将demo里的AndroidManifest.xml和nativeResources拷贝到自己项目的根目录,如果已经存在对应文件,请合并里面的内容(如果不会合并加QQ252797991)
- 将AndroidManifest.xml文件的manifest节点的package值设置Android打包的包名
- 增加权限
"<uses-permission android:name=\"android.permission.READ_EXTERNAL_STORAGE\"/>",
"<uses-permission android:name=\"android.permission.WRITE_EXTERNAL_STORAGE\"/>",
"<uses-permission android:name=\"android.permission.MANAGE_EXTERNAL_STORAGE\"/>"
- 关于Android 10、11及其以后系统无法访问外接U盘,没有读写权限的方案
- android 10需要采用系统文件选择器来选取和保存文件到U盘
UTSFilePath.selectFile()
UTSFilePath.saveFile()
var sdkVersion = UTSFilePath.getSDKVersion()
if(sdkVersion == 29) { // android 10系统
}
- android 11以后需要跳到文件设置页面进行授权,授权以后重启app才能对外部路径(如U盘)进行读写。 路径:设置-》隐私与安全(或隐私保护) -》其他权限-》特殊权限设置-》所有文件访问权限-》选择app-》进入授权页面授权(授予管理所有文件的权限),开启权限后重启app,再进行usb授权后,进入u盘目录即可
var sdkVersion = UTSFilePath.getSDKVersion()
if (sdkVersion >= 30) { // android 11以后需要跳到文件设置页面进行授权,授权以后重启app才能访问外部路径
var isExternalStorageManager = UTSFilePath.isExternalStorageManager()
if(!isExternalStorageManager) {
UTSFilePath.toMgrAllFilesPermissionPage()
}
}
引入插件
import {
UTSFilePath
} from "@/uni_modules/wrs-uts-filePath"
- 获取手机所有存储卷路径,包含外接U盘、移动硬盘,仅支持Android
var resp = UTSFilePath.getStorageVolumes()
if (resp.storageVolumes) {
this.dataArray.push(...resp.storageVolumes)
}
返回的数据结构:
{
"storageVolumes": [{
"isRemovable": false, // 是否可插拔,true表示是外接的U盘或移动硬盘,false表示是内部固定盘
"description": "内部存储",
"state": "mounted",
"path": "/storage/emulated/0"
}, {
"isRemovable": true, // true表示是外接的U盘或移动硬盘
"description": "U 盘",
"state": "mounted",
"path": "/storage/C0C4-9B54"
}]
}
- 获取app常用路径
var commonPath = UTSFilePath.getCommonPath()
返回的数据结构:
android:
{
"environment": {
"downloadCacheDirectory": "/data/cache",
"dataDirectory": "/data",
"externalStorageDirectory": "/storage/emulated/0",
"rootDirectory": "/system",
"externalStorageState": "mounted"
},
"cacheDir": "/data/user/0/uni.UNI005DB01/cache",
"externalCacheDir": "/storage/emulated/0/Android/data/uni.UNI005DB01/cache",
"dataDir": "/data/user/0/uni.UNI005DB01",
"filesDir": "/data/user/0/uni.UNI005DB01/files"
}
ios: 常用的路径有:documentDirectory、temporaryDirectory、libraryDirectory、cachesDirectory
{
"desktopDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Desktop",
"homeDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB",
"allApplicationsDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Applications",
"adminApplicationDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Applications/Utilities",
"preferencePanesDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Library/PreferencePanes",
"applicationSupportDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Library/Application Support",
"temporaryDirectory": "/private/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/tmp/",
"documentationDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Library/Documentation",
"moviesDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Movies",
"developerDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Developer",
"developerApplicationDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Developer/Applications",
"documentDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Documents",
"inputMethodsDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Library/Input Methods",
"cachesDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Library/Caches",
"musicDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Music",
"picturesDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Pictures",
"allLibrariesDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Library",
"sharedPublicDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Public",
"autosavedInformationDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Library/Autosave Information",
"libraryDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Library",
"demoApplicationDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Applications/Demos",
"applicationDirectory": "/var/mobile/Containers/Data/Application/4B6CBD9F-2B8B-4110-B9F1-698509C213BB/Applications"
}

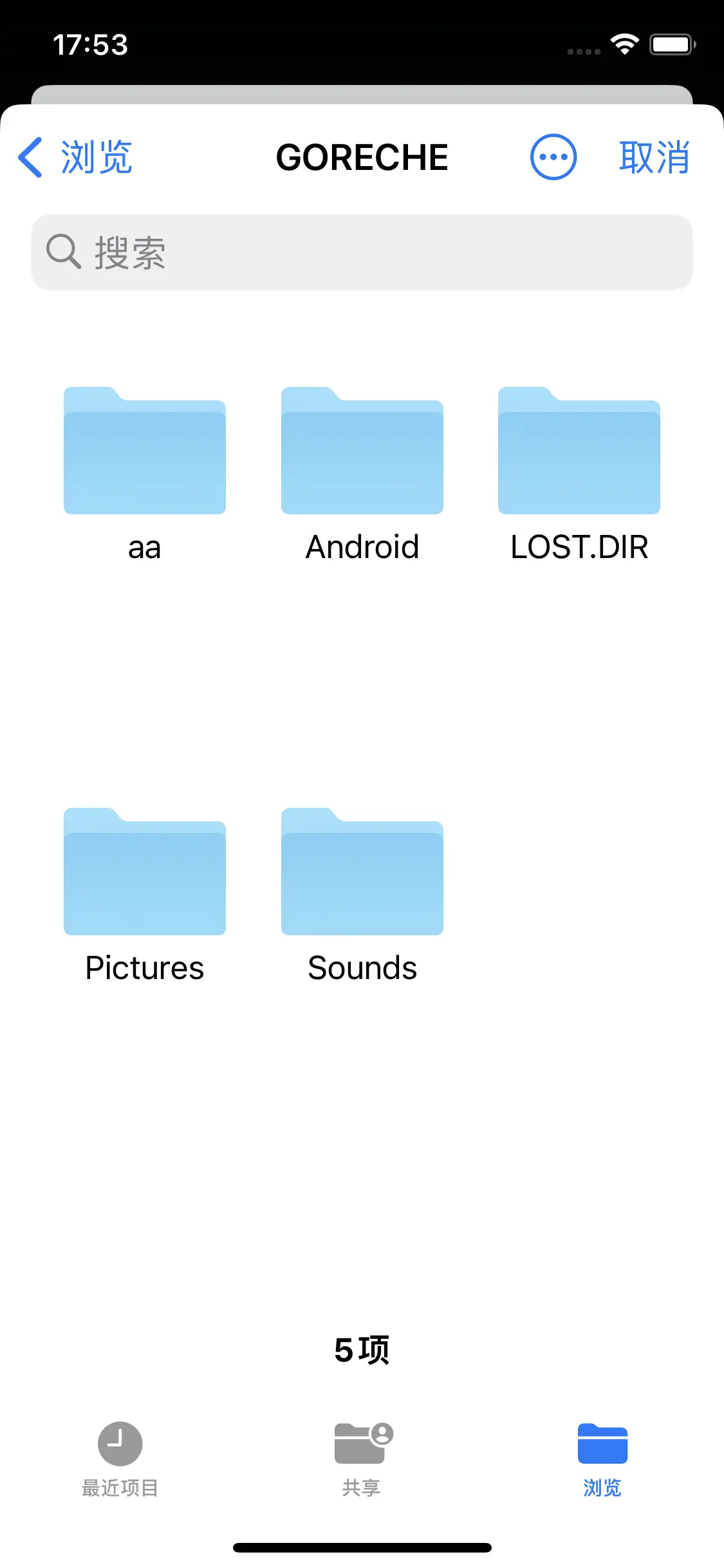

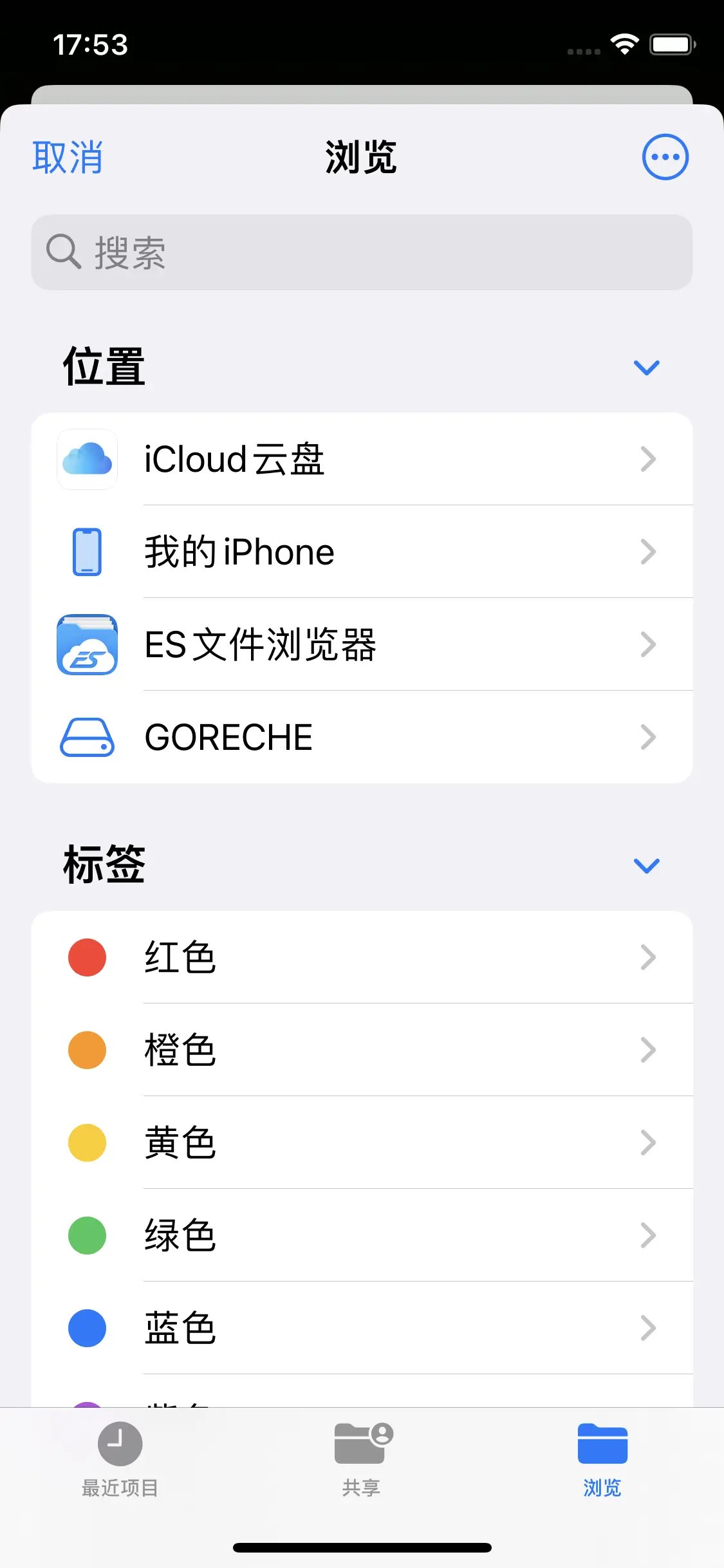

- 调用系统文件选择器来选择文件(从U盘或移动硬盘里获取文件)
ar params = {}
if (this.isAndroid) { // ios
// image/*、audio/*、video/*、video/*;image/*
params.type = "*/*" //无类型限制
params.category = ["android.intent.category.OPENABLE"]
// params.extra = {
// 'android.intent.extra.ALLOW_MULTIPLE': true // 是否允许多选
// }
} else {
params.modalPresentationStyle = 0
params.documentTypes = [
"public.item",
"public.data",
"public.symlink",
"public.directory",
"public.content",
"public.text",
"public.source-code",
"public.image",
"public.audiovisual-content",
"com.adobe.pdf",
"com.apple.keynote.key",
"com.microsoft.word.doc",
"com.microsoft.excel.xls",
"com.microsoft.powerpoint.ppt",
"org.openxmlformats.wordprocessingml.document",
"com.microsoft.excel.xls",
"org.openxmlformats.presentationml.presentation"
] // 可以选择的文件类型,更多类型请查询资料自行添加
params.allowsMultipleSelection = true // 是否允许多选,ios 11以后支持
params.modalPresentationStyle = 0
}
params.saveDir = plus.io.convertLocalFileSystemURL("_download") // 文件保存目录
UTSFilePath.selectFile(JSON.stringify(params), (resp) => {
// android与iOS返回到resp值不一样,需要各端去适配
this.showMsg(JSON.stringify(resp))
var opt = resp.opt
switch (opt) {
case "presented":
break
case "cancel":
break;
// 选择完文件开始保存文件
case "didPick":
break
// 文件保存完成
case "savedFiles":
break
default:
break;
}
})
- 调用文件选择器来保存文件(可以保存文件到U盘或移动硬盘里)
var params = {};
params.url = plus.io.convertLocalFileSystemURL("_www/static/logo.png");
if (this.isAndroid) {
params.EXTRA_TITLE = "logo.png"
} else {
params.allowsMultipleSelection = false // 是否允许多选,ios 11以后支持
params.modalPresentationStyle = 0
}
UTSFilePath.saveFile(JSON.stringify(params), (resp) => {
// android与iOS返回到resp值不一样,需要各端去适配
this.showMsg(JSON.stringify(resp))
if (this.isAndroid) {
var resultCode = resp.resultCode
if (resultCode == -1) {
let fileArray = resp.fileArray
if (fileArray) {
}
}
} else {
var opt = resp.opt
switch (opt) {
case "presented":
break
case "cancel":
break;
case "didPick":
break
case "savedFiles":
break
default:
break;
}
}
})
