插件说明

form-create-uni是为form-create vue组件开发的uni端适配组件,对标的web端组件是form-create,此组件不具备表单的设计功能,只具备表单动态显示功能,可以通过 JSON 生成具有动态渲染、数据收集、验证和提交功能的表单生成组件,本组件的实现,使用了uview-plus(除颜色选择器外的其它组件使用)、uv-ui(颜色选择器使用)等第三方依赖.

用户在web端设计表单内容,使用FcDesigner组件来设计组件,然后可以在uni端,使用此组件来显示表单内容.

插件使用说明

使用代码如下，请看示例代码中注释内容：

<template>
    <view>

        <form-create-uni ref="formCreateRef" :option="option" @submit="submit"></form-create-uni>

        <u-button type="primary" text="获取表单数据" customStyle="margin-top: 50px" @click="getFormData"></u-button>

        <br><br><br>

    </view>
</template>

<script setup lang="ts">
    import {
        ref,
        onMounted,
    } from 'vue'

    const formCreateRef = ref()

    const option = ref({}) // 表单整体属性值，通过组件属性注入

    const submit=(formData)=>{ // 点击组件内置提交按钮后的事件

        console.log(JSON.stringify(formData)); // [{"type":"input","field":"Ffyi631rgf2hn","title":"输入框","info":"","$required":true,"_fc_drag_tag":"input","hidden":false,"display":true,"values":"111"},{"type":"inputNumber","field":"F78g6323ffje1","title":"计数器","info":"","$required":false,"_fc_drag_tag":"inputNumber","hidden":false,"display":true},{"type":"radio","field":"Fo0p6323ffxyk","title":"单选框","info":"","effect":{"fetch":""},"$required":false,"options":[{"label":"选项1","value":1},{"label":"选项2","value":2}],"_fc_drag_tag":"radio","hidden":false,"display":true,"values":1},{"type":"checkbox","field":"Fjfh6323fgc5h","title":"多选框","info":"","effect":{"fetch":""},"$required":false,"options":[{"label":"选项1","value":1},{"label":"选项2","value":2}],"_fc_drag_tag":"checkbox","hidden":false,"display":true,"values":[1,2]},{"type":"select","field":"Fork1oukyaqp1g","title":"选择器","info":"","effect":{"fetch":""},"$required":false,"options":[{"label":"选项1","value":1},{"label":"选项2","value":2}],"_fc_drag_tag":"select","hidden":false,"display":true},{"type":"switch","field":"Fsuh1oukyatz0r","title":"开关","info":"","$required":false,"_fc_drag_tag":"switch","hidden":false,"display":true},{"type":"timePicker","field":"Fnnm1oukyaz4tq","title":"时间选择器","info":"","$required":false,"_fc_drag_tag":"timePicker","hidden":false,"display":true},{"type":"datePicker","field":"Fud81oukyb2p59","title":"日期选择器","info":"","$required":false,"_fc_drag_tag":"datePicker","hidden":false,"display":true},{"type":"rate","field":"Fnjf1oukyb7tps","title":"评分","info":"","$required":false,"_fc_drag_tag":"rate","hidden":false,"display":true,"value":0,"values":2},{"type":"colorPicker","field":"F5zc1oukybcmk3","title":"颜色选择器","info":"","$required":false,"_fc_drag_tag":"colorPicker","hidden":false,"display":true},{"type":"upload","field":"Futt1oukybhfh6","title":"上传","info":"","$required":false,"props":{"action":""},"_fc_drag_tag":"upload","hidden":false,"display":true}]

    }

    const getFormData=()=>{ // 在不点击内置的提交按钮的情况下，获取表单内输入的数据值，表单校验将不起作用

        const formData = formCreateRef.value.getFormData()

        console.log(JSON.stringify(formData)); // [{"type":"input","field":"Ffyi631rgf2hn","title":"输入框","info":"","$required":true,"_fc_drag_tag":"input","hidden":false,"display":true,"values":"111"},{"type":"inputNumber","field":"F78g6323ffje1","title":"计数器","info":"","$required":false,"_fc_drag_tag":"inputNumber","hidden":false,"display":true},{"type":"radio","field":"Fo0p6323ffxyk","title":"单选框","info":"","effect":{"fetch":""},"$required":false,"options":[{"label":"选项1","value":1},{"label":"选项2","value":2}],"_fc_drag_tag":"radio","hidden":false,"display":true,"values":1},{"type":"checkbox","field":"Fjfh6323fgc5h","title":"多选框","info":"","effect":{"fetch":""},"$required":false,"options":[{"label":"选项1","value":1},{"label":"选项2","value":2}],"_fc_drag_tag":"checkbox","hidden":false,"display":true,"values":[1,2]},{"type":"select","field":"Fork1oukyaqp1g","title":"选择器","info":"","effect":{"fetch":""},"$required":false,"options":[{"label":"选项1","value":1},{"label":"选项2","value":2}],"_fc_drag_tag":"select","hidden":false,"display":true},{"type":"switch","field":"Fsuh1oukyatz0r","title":"开关","info":"","$required":false,"_fc_drag_tag":"switch","hidden":false,"display":true},{"type":"timePicker","field":"Fnnm1oukyaz4tq","title":"时间选择器","info":"","$required":false,"_fc_drag_tag":"timePicker","hidden":false,"display":true},{"type":"datePicker","field":"Fud81oukyb2p59","title":"日期选择器","info":"","$required":false,"_fc_drag_tag":"datePicker","hidden":false,"display":true},{"type":"rate","field":"Fnjf1oukyb7tps","title":"评分","info":"","$required":false,"_fc_drag_tag":"rate","hidden":false,"display":true,"value":0,"values":2},{"type":"colorPicker","field":"F5zc1oukybcmk3","title":"颜色选择器","info":"","$required":false,"_fc_drag_tag":"colorPicker","hidden":false,"display":true},{"type":"upload","field":"Futt1oukybhfh6","title":"上传","info":"","$required":false,"props":{"action":""},"_fc_drag_tag":"upload","hidden":false,"display":true}]

    }

    /** 初始化 **/
    onMounted(() => {

        // 表单整体属性值，通过组件属性注入
        option.value = { "form": { "labelPosition": "right", "size": "small", "labelWidth": "125px", "hideRequiredAsterisk": true, "showMessage": true, "inlineMessage": false }, "submitBtn": { "show": true, "innerText": "提交" }, "resetBtn": { "show": true, "innerText": "重置" } }

        // 表单内各组件，需要通过方法来设值，因为设值后，需要动态生成表单验证内容
        const rule = [{"type":"input","field":"Ffyi631rgf2hn","title":"输入框","info":"","$required":true,"_fc_drag_tag":"input","hidden":false,"display":true},{"type":"inputNumber","field":"F78g6323ffje1","title":"计数器","info":"","$required":false,"_fc_drag_tag":"inputNumber","hidden":false,"display":true},{"type":"radio","field":"Fo0p6323ffxyk","title":"单选框","info":"","effect":{"fetch":""},"$required":false,"options":[{"label":"选项1","value":1},{"label":"选项2","value":2}],"_fc_drag_tag":"radio","hidden":false,"display":true},{"type":"checkbox","field":"Fjfh6323fgc5h","title":"多选框","info":"","effect":{"fetch":""},"$required":false,"options":[{"label":"选项1","value":1},{"label":"选项2","value":2}],"_fc_drag_tag":"checkbox","hidden":false,"display":true},{"type":"select","field":"Fork1oukyaqp1g","title":"选择器","info":"","effect":{"fetch":""},"$required":false,"options":[{"label":"选项1","value":1},{"label":"选项2","value":2}],"_fc_drag_tag":"select","hidden":false,"display":true},{"type":"switch","field":"Fsuh1oukyatz0r","title":"开关","info":"","$required":false,"_fc_drag_tag":"switch","hidden":false,"display":true},{"type":"timePicker","field":"Fnnm1oukyaz4tq","title":"时间选择器","info":"","$required":false,"_fc_drag_tag":"timePicker","hidden":false,"display":true},{"type":"datePicker","field":"Fud81oukyb2p59","title":"日期选择器","info":"","$required":false,"_fc_drag_tag":"datePicker","hidden":false,"display":true},{"type":"rate","field":"Fnjf1oukyb7tps","title":"评分","info":"","$required":false,"_fc_drag_tag":"rate","hidden":false,"display":true,"value":0},{"type":"colorPicker","field":"F5zc1oukybcmk3","title":"颜色选择器","info":"","$required":false,"_fc_drag_tag":"colorPicker","hidden":false,"display":true},{"type":"upload","field":"Futt1oukybhfh6","title":"上传","info":"","$required":false,"props":{"action":""},"_fc_drag_tag":"upload","hidden":false,"display":true}]

        formCreateRef.value.showForm(rule)

    })
</script>

<style lang="scss">
</style>

依赖的第三方库

https://www.uviewui.com/

https://uiadmin.net/uview-plus/

https://www.uvui.cn/

https://nutui.jd.com/#/

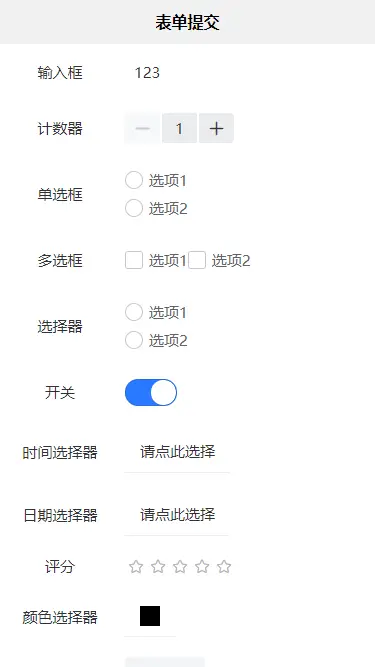

页面名称

pages/frontPage/formSubmit/page.vue-表单提交
