前言

涂鸦插件，包含Wi-Fi、蓝牙、有线、zigbee版本，可以控制照明、传感、家电、网关等等遵循涂鸦协议的外设，包含账号家庭管理、设备配网、设备控制管理等等

支持定制，请点击上面“进入交流群”联系作者

功能

按照涂鸦APIhttps://developer.tuya.com/cn/docs/app-development/android-energy-consumption?id=Kaosznjd98j7v分类,为了快速查找API方法，可以现在涂鸦官网复制中文方法名称，然后在此网页上搜索，如要查找发送手机号码验证码的API，复制“发送手机号码验证码”在此网页上搜索相关API，有些API无法搜索再仔细阅读此文当或查看demo查找。 关于涂鸦云开发(垂直品类硬件API(万能红外开放能力、设备连接服务、设备OTA固件升级、实时音视频、睡眠带开放能力、体脂秤开放能力、智能门锁开放能力、视频云存储 、邮件服务 、 语音消息服务、消息推送服务、短信服务 、内测版 API)、行业通用API等等)插件见https://ext.dcloud.net.cn/plugin?id=6744

快速入门

设备配网注意点

1. 设备配网前需要先创建一个家庭，然后选择一个家庭
2. 配网前手机需要开启定位，手机连接Wi-Fi，不能用4G网络
3. Wi-Fi路由器需要关闭5G信号(涂鸦设备目前只支持2.4GHz网络)，登录路由器，关闭5GHz(各种品牌路由器关闭方法参考厂家说明或自定百度)

集成插件步骤

1. 在涂鸦IOT平台里的App 工作台，在App -> App SDK(SDK 开发) -> SDK开发创建应用，并在应用里绑定Android、iOS包名(即uniapp的android包名、iOS的Bundle ID)
2. android还需要在涂鸦IOT平台里(点击创建的应用进入应用详情-> 获取密钥-> Android -> 证书)绑定签名的SHA256。(SHA265的获取可参考涂鸦的说明https://developer.tuya.com/cn/docs/app-development/iot_app_sdk_core_sha1?id=Kao7c7b139vrh)
3. 进入到创建的应用详情页的SDK页面里，切换到“获取SDK”栏目，选择对应到功能模块，分别下载"下载iOS开发版"、"下载Android开发版“、"获取鸿蒙SDK",下载后解压， 正式版需要重新下载集成一遍
4. 点击右上角"试用"按钮，按照指示步骤集成插件到自己的项目
5. 下载demo(点击右上角"使用HBuilderX导入示例项目")拷贝demo里的uni_modules/wrs-tuya、Info.plist、AndroidManifest.xml、harmony-configs到项目对应目录
6. 为iOS创建一个public的git仓库，将https://gitee.com/uniapp_uts/thing-smart-cryption.git里的内容推送上去，iOS开发版解压后，替换此仓库里的ThingSmartCryption.podspec文件和Build文件夹，替换后提交推送到远程仓库，并打上tag,修改uni_modules/wrs-uts-tuya/utssdk/app-ios/config.json文件，将name为ThingSmartCryption里的git和tag替换为此仓库的git地址和tag
7. android开发版解压后，将security-algorithm-1.0.0-beta.aar文件替换uni_modules/wrs-tuya/utssdk/app-android/libs/security-algorithm-1.0.0-beta.aar文件，替换AndroidManifest.xml里THING_SMART_APPKEY和THING_SMART_SECRET的值
8. 鸿蒙sdk解压后，替换项目里的uni_modules/wrs-tuya/utssdk/app-harmony/libs/TSmartSecurity.har、uni_modules/wrs-tuya/utssdk/app-harmony/resources/rawfile/t_s.bmp
9. manifest.json的app-plus => distribute => android => packagingOptions增加下面配置(可以参考demo)

"packagingOptions": [
                    "pickFirst 'lib/*/libc++_shared.so'",
                    "pickFirst 'lib/*/libgnustl_shared.so'",
                    "pickFirst 'lib/*/liblog.so'",
                    "pickFirst 'lib/*/libopenh264.so'",
                    "pickFirst 'lib/*/libyuv.so'"
                ]

9. ios EZ 配网的数据包。此时，App 需要额外开启一个 com.apple.developer.networking.multicast 的权限,参考https://www.jianshu.com/p/c2f6e6aa41a3?v=1682211826634
10. 在App.vue里引入插件变量，如：

import {UTSTuya} from "@/uni_modules/wrs-uts-tuya"
import {WRSTuya} from  "@/uni_modules/wrs-tuya"

9. 删除本地基座和手机上安装的app，重新自定义基座运行

涂鸦错误码查询链接：

https://developer.tuya.com/cn/docs/app-development/errorcode?id=Ka6o3bubtl735

调用接口时，出现"xxx非法客户端"的错误排查步骤：

android:

1. 检查uniapp项目的包名是否与涂鸦IOT平台里对应应用的包名一致
2. uni_modules/wrs-tuya/utssdk/app-android/libs/security-algorithm-1.0.0-beta.aary里对应文件是否按照集成步骤里的说明进行替换
3. android签名的SHA256是否与涂鸦IOT平台里对应应用的包名一致
4. 删除手机app重新自定义基座安装

iOS：

1. 检查uniapp项目的Bundle ID是否与涂鸦IOT平台里对应应用的包名一致
2. 共有仓库里对应文件是否按照集成步骤里的说明进行替换、
3. 删除手机app重新自定义基座安装

接口

import {UTSTuya} from "@/uni_modules/wrs-uts-tuya"
import {WRSTuya} from  "@/uni_modules/wrs-tuya"

• 初始化SDK

let params = {}
let platform = uni.getSystemInfoSync().platform
switch (platform) {
    case "ios": {
        params.appkey = "7hsnayvpgapxckxsw99v"
        params.appSerect = "vt4fg5rst9eyk8ktydwt7gunqv8jv75u"
    }
    break;
    case "android": {
        params.appkey = "87jnyvghe5w5uun99qc3"
        params.appSerect = "msp4a54s8s57jhhp4mhc844c7cednyq5"
    }
    break;
    default:
        break;
}
UTSTuya.sdkInit(params)

• 设置回调

UTSTuya.onSetCallback((resp) => {
    let opt = resp.opt
    switch (opt) {
        // 低功耗蓝牙配网或蓝牙Wi-Fi双模配网扫描到蓝牙设备的回调
        case "onDiscoverDevice": {
            let data = resp.data

            switch (uni.getSystemInfoSync().platform) {
                case 'android': {
                    if (data.configType == "config_type_wifi") {
                        let params = {}
                        params.uuid = data.uuid
                        params.homeId = this.homeId
                        params.ssid = this.ssid
                        params.password = this.password
                        params.timeout = 120 * 1000
                        params.token = this.token
                        UTSTuya.startConfigBLEWifiDevice(params, (resp) => {
                            if (resp.flag) {
                                this.showMsg("配网中。。。")
                            } else {
                                this.showMsg("配网数据发送失败。。。resp:" + JSON.stringify(resp))
                            }
                        })

                    } else {

                    }

                }
                break;
                case 'ios': {
                    let bleType = data.bleType
                    // typedef enum : NSUInteger {
                    //     /// The unknown type of Bluetooth LE device.
                    //     ThingSmartBLETypeUnknow = 1,
                    //     /// The type of Bluetooth LE device that supports an earlier protocol. The device does not support a security protocol.
                    //     ThingSmartBLETypeBLE,
                    //     /// The type of Bluetooth LE device that supports an earlier protocol of a lower security level.
                    //     ThingSmartBLETypeBLEPlus,
                    //     /// The type of Bluetooth LE device that supports an earlier protocol. The device does not support a security protocol.
                    //     ThingSmartBLETypeBLEWifi,
                    //     /// The type of Bluetooth LE device that supports a later protocol of a higher security level.
                    //     ThingSmartBLETypeBLESecurity,
                    //     /// The type of Bluetooth LE dual-mode device that supports a later protocol of a higher security level.
                    //     ThingSmartBLETypeBLEWifiSecurity,
                    //     /// The type of Bluetooth LE dual-mode device that supports a later protocol of a higher security level and that supports the plug and play (PnP) function.
                    //     ThingSmartBLETypeBLEWifiPlugPlay,
                    //     /// The type of Bluetooth LE and Zigbee dual-mode device that supports a later protocol of a higher security level.
                    //     ThingSmartBLETypeBLEZigbee,
                    //     /// The type of Bluetooth LE and LTE Category 1 dual-mode device that supports a later protocol of a higher security level.
                    //     ThingSmartBLETypeBLELTESecurity,
                    //     /// The beacon security.
                    //     ThingSmartBLETypeBLEBeacon,
                    //     /// Same as the ThingSmartBLETypeBLEWifiPlugPlay, but BLE is prior while configing.
                    //     ThingSmartBLETypeBLEWifiPriorBLE,
                    // } ThingSmartBLEType;
                    if (bleType == 1 || bleType == 2 || bleType == 5 || bleType == 3 || bleType ==
                        8 ||
                        bleType ==
                        10) {
                        this.showMsg("请使用低功耗蓝牙配网")
                        return
                    } else {
                        let params = {}
                        params.uuid = data.uuid
                        params.homeId = this.homeId
                        params.productId = data.productId
                        params.ssid = this.ssid
                        params.password = this.password
                        params.timeout = 100
                        console.log("startConfigBLEWifiDevice params:" + JSON.stringify(params))
                        UTSTuya.startConfigBLEWifiDevice(params, (resp) => {
                            if (resp.flag) {
                                this.showMsg("配网中。。。")
                            } else {
                                this.showMsg("配网数据发送失败。。。resp:" + JSON.stringify(resp))
                            }
                        })
                    }
                }
                break
                default:
                    break;
            }

        }
        break;
        // 蓝牙Wi-Fi双模配网配网成功
        case "onReceiveBLEWifiConfigDeviceSuc": {
            this.showMsg("配网成功!" + JSON.stringify(resp))
            let data = resp.data
            let error = resp.error
            if (data) {

            }
        }
        break;
        // 蓝牙Wi-Fi双模配网失败
        case "onReceiveBLEWifiConfigDeviceFail": {
            this.showMsg("配网失败!" + JSON.stringify(resp))
        }
        break;
        // 仅支持iOS， AP配网确认同一个Wi-Fi
        case "onPassWIFIToSecurityLevelDevice": {
            this.showModel("是否继续？(请确认手机连接的是同一个Wi-Fi)", () => {
                UTSTuya.continueConfigSecurityLevelDevice()
            })
        }
        break;
        default:
            break;
    }
})

用户账号

查询验证码服务可用地区

UTSTuya.getWhiteListWhoCanSendMobileCodeSuccess((resp)=>{
    if(resp.flag) {
        let countryCodes = resp.countryCodes
    }
})

发送手机号码验证码

UTSTuya.sendVerifyCode({
    userName: this.phone,  // 手机号码/邮箱账号
    region: "",  // 区域，默认填写：“” 即可
    countryCode: this.countryCode, // 手机区号：如 “86”
    type: 1 // 发送验证码类型,1：注册 2：登录 3：重置密码
}, (resp)=>{
    let flag = resp.flag
    if(flag) {
        this.showMsg("验证码已发送")
    } else {
        this.showMsg("验证码发送失败:" + JSON.stringify(resp))
    }
})

校验填入的验证码

UTSTuya.checkCodeWithUserName({
    userName: this.phone,  // 手机号码/邮箱账号
    region: "",  // 区域，默认填写：“” 即可
    code: "", // 验证码
    type: 1 // 发送验证码类型,1：注册 2：登录 3：重置密码 4:注销手机账号
}, (resp)=>{
    let flag = resp.flag
    if(flag) {
        this.showMsg("验证码已发送")
    } else {
        this.showMsg("验证码发送失败:" + JSON.stringify(resp))
    }
})

使用手机号码注册账号

let params = {
    phoneNumber: this.phone, // 手机号
    passwd: this.password, // 密码
    countryCode: this.countryCode, // 手机区号
    code: this.code // 验证码
};
UTSTuya.registerAccountWithPhone(params, (resp)=>{
    let flag = resp.flag
    if(flag) {
        this.showMsg("注册成功")
    } else {
        this.showMsg("注册失败:" + JSON.stringify(resp))
    }
})

使用手机号码和密码登录账号

let params = {
    phoneNumber: this.phone, // 手机号
    countryCode: this.countryCode, // 手机区号
    passwd: this.password // 验证码
};
UTSTuya.loginWithPhonePassword(params, (resp) => {
    var str = JSON.stringify(resp);
    if (resp.flag) { // 成功
        let user = resp.data;
        try {
            uni.setStorageSync('user', user);
        } catch (e) {
            // error
        }
        this.showMsg("登陆成功")
        uni.reLaunch({
            url:"/pages/index/main"
        })
    } else { // 失败
        this.showMsg("登陆失败：" + JSON.stringify(resp));

    }
});

使用手机号码和验证码登录账号

let params = {
    phone: "", // 手机号
    countryCode: "86",
    code: "" // 验证码
};
UTSTuya.loginWithPhone(params, (resp) => {
    if (resp.flag) { // 成功

    } else { // 失败

    }
});

重置手机号码注册的账号密码

let params = {
    phone: "", // 手机号
    countryCode: "86",
    code: "" // 验证码
};
UTSTuya.resetPhonePassword(params, (resp) => {
    if (resp.flag) { // 成功

    } else { // 失败

    }
});

为账号绑定邮箱地址-获取绑定验证码

let params = {
    phoneNumber: "", // 手机号
    countryCode: "86"
};
UTSTuya.sendBindVerifyCode(params, (resp) => {
    if (resp.flag) { // 成功

    } else { // 失败

    }
});

为账号绑定邮箱地址-绑定邮箱地址

let params = {
    email: "", // 手机号
    countryCode: "86",
    code: "",
    sId: ""
};
UTSTuya.bindEmail(params, (resp) => {
    if (resp.flag) { // 成功

    } else { // 失败

    }
});

使用邮箱地址注册账号

let params = {
    email: this.email, // 手机号
    passwd: this.password, // 密码
    countryCode: this.countryCode, // 手机区号
    code: this.code // 验证码
};
UTSTuya.registerAccountWithEmail(params, (resp) => {
    let flag = resp.flag
    if (flag) {
        this.showMsg("注册成功")
    } else {
        this.showMsg("注册失败:" + JSON.stringify(resp))
    }
})

使用邮箱地址和密码登录账号

let params = {}
params.countryCode = "86"
params.email = ""
params.passwd = ""
UTSTuya.loginWithEmail(params, (resp)=>{

})

使用邮箱地址和验证码登录账号

let params = {}
params.countryCode = "86"
params.email = ""
params.code = ""
UTSTuya.loginWithEmailCode(params, (resp)=>{

})

重置邮箱地址账户的密码

let params = {}
params.countryCode = "86"
params.email = ""
params.emailCode = ""
params.passwd = ""
UTSTuya.resetEmailPassword(params, (resp)=>{

})

为账号绑定手机号-获取绑定验证码

let params = {}
params.countryCode = "86"
params.phoneNumber = ""
UTSTuya.sendBindVerifyCode(params, (resp)=>{

})

为账号绑定手机号-绑定手机号码

let params = {}
params.countryCode = "86"
params.phoneNumber = ""
params.code = ""
UTSTuya.bindMobile(params, (resp)=>{

})

用户 UID 登录

let params = {}
params.countryCode = "86"
params.uid = ""
params.passwd = ""
// params.isCreateHome = true
UTSTuya.loginOrRegisterWithUid(params, (resp)=>{

})

微信登录

let params = {}
params.countryCode = "86"
params.code = ""
UTSTuya.loginByWechat(params, (resp)=>{

})

QQ 登录

let params = {}
params.countryCode = "86"
params.userId = ""
params.accessToken = ""
UTSTuya.loginByQQ(params, (resp)=>{

})

OAuth2 登录

let params = {}
params.countryCode = "86"
params.type = ""
params.accessToken = ""
params.extraInfo = ""
UTSTuya.thirdLogin(params, (resp)=>{

})

作为匿名用户登录

let params = {}
params.countryCode = "86"
params.nickName = ""

UTSTuya.touristRegisterAndLogin(params, (resp)=>{

})

创建家庭

let params = {};
params.name = this.name;
// Get location by yourself, here just sample as Shanghai's location
params.longitude = 120.52;
params.latitude = 30.40;
params.geoName = this.geoName; // 城市名称，如:广州、上海
params.rooms = []
UTSTuya.createHome(params, (resp) => {
    if(resp.flag) { // 创建成功
        this.showMsg("创建成功")
    } else { // 创建失败
        this.showMsg("创建失败:" + JSON.stringify(resp))
    }
});

查询家庭列表

UTSTuya.getHomeList((resp) => {
    if (resp.flag) {
        let data = resp.data
        if (data) {

            this.refreshData(data)
        }
    } else {
        uni.showToast({
            title: "code:" + resp.code + "  error:" + resp.error,
            duration: 2000
        });
    }
})

获取家庭详细信息

UTSTuya.getHomeDetail(homeId, (resp) => {
   if(resp.flag) {
       let homeDetail = resp.data
       let dataList = homeDetail.deviceList // 设备数组
   }
});

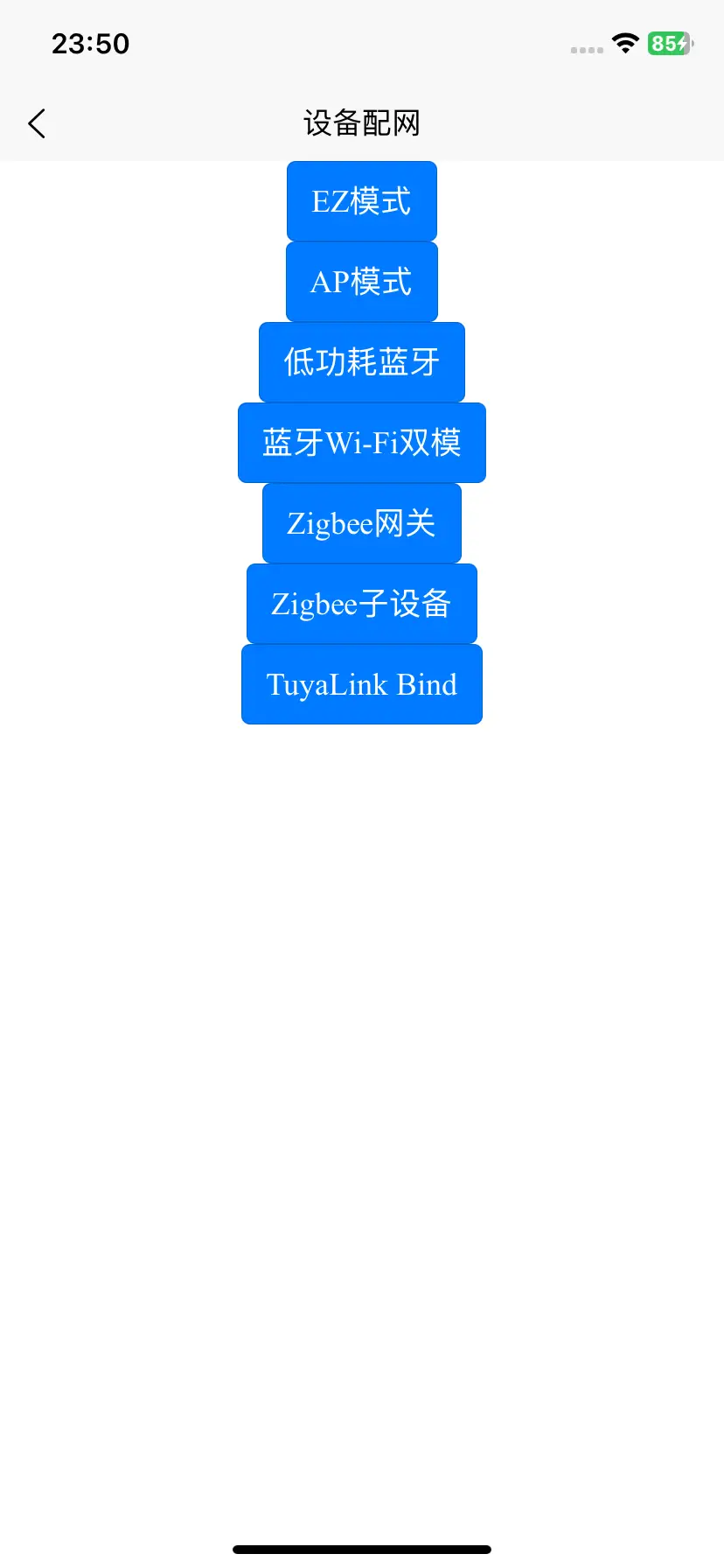

设备配网

AP配网

配网结果在UTSTuya.onSetCallback的onReceiveDevice回调里

let params = {}
params.mode = "ap"
params.ssid = this.ssid
params.password = this.password
params.token = this.token
params.timeout = 100
console.log("vue startConfigWiFi params:" + JSON.stringify(params))
UTSTuya.startConfigWiFi(params)

EZ配网

配网结果在UTSTuya.onSetCallback的onReceiveDevice回调里

let params = {}
params.mode = "ez"
params.ssid = this.ssid
params.password = this.password
params.token = this.token
params.timeout = 100
console.log("vue startConfigWiFi params:" + JSON.stringify(params))
UTSTuya.startConfigWiFi(params)

低功耗蓝牙配网

先调用UTSTuya.bleWifiConfigureStart进行蓝牙扫描，扫描到设备再调用配网接口UTSTuya.startConfigBLEDevice

1. 扫描蓝牙

let params = {} params.timeout = 60 * 1000 // 仅支持Android params.type = "single" // 仅支持Android UTSTuya.bleWifiConfigureStart(params)

2. 配网

```javascript

let data = resp.data
switch (uni.getSystemInfoSync().platform) {
    case 'android': {
        if (data.configType == "config_type_single") {
            let params = {}
            params.uuid = data.uuid
            params.homeId = this.homeId
            params.ssid = this.ssid
            params.password = this.password
            params.timeout = 120 * 1000
            UTSTuya.startConfigBLEDevice(params, (resp) => {
                if (resp.flag) {
                    this.showMsg("配网成功:" + JSON.stringify(resp.data))
                } else {
                    this.showMsg("配网失败:" + JSON.stringify(resp))
                }
            })
        } else {

        }
    }
    break;
    case "ios": {
        let bleType = data.bleType
        if (bleType == 1 || bleType == 2 || bleType == 5 || bleType == 3 || bleType == 8 ||
            bleType ==
            10) {
            let params = {}
            params.uuid = data.uuid
            params.homeId = this.homeId
            UTSTuya.startConfigBLEDevice(params, (resp) => {
                if (resp.flag) {
                    this.showMsg("配网成功:" + JSON.stringify(resp.data))
                } else {
                    this.showMsg("配网失败:" + JSON.stringify(resp))
                }
            })
        } else {
            this.showMsg("请使用蓝牙Wi-Fi双模配网")
        }
    }
    break;
    default:
        break;
}

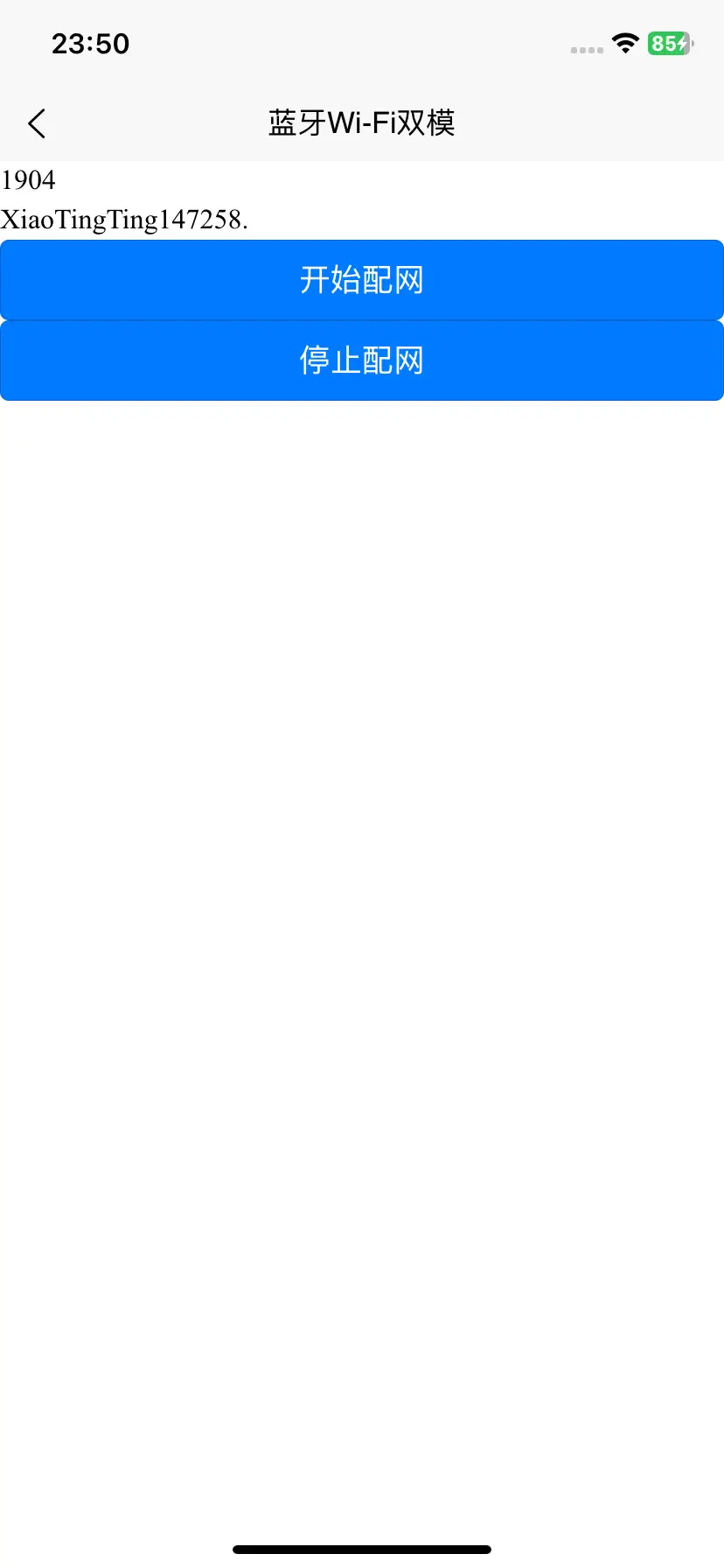

蓝牙Wi-Fi双模配网

先调用UTSTuya.bleWifiConfigureStart进行蓝牙扫描，扫描到设备再调用配网接口UTSTuya.startConfigBLEWifiDevice

1. 蓝牙扫描

   let params = {}
   params.timeout = 60 * 1000 // 仅支持Android
   params.type = "single" // 仅支持Android
   UTSTuya.bleWifiConfigureStart(params)

2. 配网 配网结果在UTSTuya.onSetCallback的回调onReceiveBLEWifiConfigDeviceSuc、onReceiveBLEWifiConfigDeviceFail

let data = resp.data

switch (uni.getSystemInfoSync().platform) {
    case 'android': {
        if (data.configType == "config_type_wifi") {
            let params = {}
            params.uuid = data.uuid
            params.homeId = this.homeId
            params.ssid = this.ssid
            params.password = this.password
            params.timeout = 120 * 1000
            params.token = this.token
            UTSTuya.startConfigBLEWifiDevice(params, (resp) => {
                if (resp.flag) {
                    this.showMsg("配网中。。。")
                } else {
                    this.showMsg("配网数据发送失败。。。resp:" + JSON.stringify(resp))
                }
            })

        } else {

        }

    }
    break;
    case 'ios': {
        let bleType = data.bleType
        // typedef enum : NSUInteger {
        //     /// The unknown type of Bluetooth LE device.
        //     ThingSmartBLETypeUnknow = 1,
        //     /// The type of Bluetooth LE device that supports an earlier protocol. The device does not support a security protocol.
        //     ThingSmartBLETypeBLE,
        //     /// The type of Bluetooth LE device that supports an earlier protocol of a lower security level.
        //     ThingSmartBLETypeBLEPlus,
        //     /// The type of Bluetooth LE device that supports an earlier protocol. The device does not support a security protocol.
        //     ThingSmartBLETypeBLEWifi,
        //     /// The type of Bluetooth LE device that supports a later protocol of a higher security level.
        //     ThingSmartBLETypeBLESecurity,
        //     /// The type of Bluetooth LE dual-mode device that supports a later protocol of a higher security level.
        //     ThingSmartBLETypeBLEWifiSecurity,
        //     /// The type of Bluetooth LE dual-mode device that supports a later protocol of a higher security level and that supports the plug and play (PnP) function.
        //     ThingSmartBLETypeBLEWifiPlugPlay,
        //     /// The type of Bluetooth LE and Zigbee dual-mode device that supports a later protocol of a higher security level.
        //     ThingSmartBLETypeBLEZigbee,
        //     /// The type of Bluetooth LE and LTE Category 1 dual-mode device that supports a later protocol of a higher security level.
        //     ThingSmartBLETypeBLELTESecurity,
        //     /// The beacon security.
        //     ThingSmartBLETypeBLEBeacon,
        //     /// Same as the ThingSmartBLETypeBLEWifiPlugPlay, but BLE is prior while configing.
        //     ThingSmartBLETypeBLEWifiPriorBLE,
        // } ThingSmartBLEType;
        if (bleType == 1 || bleType == 2 || bleType == 5 || bleType == 3 || bleType == 8 ||
            bleType ==
            10) {
            this.showMsg("请使用低功耗蓝牙配网")
            return
        } else {
            let params = {}
            params.uuid = data.uuid
            params.homeId = this.homeId
            params.productId = data.productId
            params.ssid = this.ssid
            params.password = this.password
            params.timeout = 100
            console.log("startConfigBLEWifiDevice params:" + JSON.stringify(params))
            UTSTuya.startConfigBLEWifiDevice(params, (resp) => {
                if (resp.flag) {
                    this.showMsg("配网中。。。")
                } else {
                    this.showMsg("配网数据发送失败。。。resp:" + JSON.stringify(resp))
                }
            })
        }
    }
    break
    default:
        break;
}

Zigbee网关配网

配网结果在UTSTuya.onSetCallback的回调onReceiveDevice里

startConfigure() {
    switch (uni.getSystemInfoSync().platform) {
        case 'android': {
            UTSTuya.onRegisterGwSearchListener((resp)=>{
                let data = resp.data
                if(data) {
                    this.startConfigZigbeeGateway(data.gwId)
                }
            })
        }
        break;
        case "ios": {
            let params = {}
            params.token = this.token
            params.timeout = 100
            UTSTuya.startConfigWiFiWithToken(params)
        }
        break;
        default:
            break;
    }

},
startConfigZigbeeGateway(gwId) {
    let params = {}
    params.gwId = gwId
    params.timeout = 100
    params.token = this.token
    UTSTuya.startConfigZigbeeGateway(params,(resp)=>{
        if (resp.flag) {
            this.showMsg("配网成功!" + JSON.stringify(resp))
        } else if (error) {
            this.showMsg("配网失败:" + JSON.stringify(resp))
        }
    })
},

Zigbee子设备配网

配网结果在UTSTuya.onSetCallback的回调onReceiveDevice里

let params = {}
params.devId = device.devId // 网关ID
params.timeout = 100
UTSTuya.startConfigZigbeeSubDevice(params)

停止配网

UTSTuya.stopConfigZigbeeSubDevice({
    devId: this.devId
})

TuyaLink Bind

let homeId = value.homeId;
let params = {}
params.code = this.code
params.homeId = homeId
UTSTuya.bindThingLinkDevice(params, (resp) => {
    if (resp.flag) {
        this.showMsg("配网成功:" + JSON.stringify(resp))
    } else {
        this.showMsg("配网失败:" + JSON.stringify(resp))
    }
})

设备控制

获取设备详情

// 获取涂鸦设备信息
let deviceBean = UTSTuya.getDeviceBean(devId);
console.log("deviceBean:" + JSON.stringify(deviceBean))
this.device = deviceBean.deviceModel

获取设备schema

let schemaBean = UTSTuya.getSchema(devId);
 console.log("schemaBean:" + JSON.stringify(schemaBean))
this.schemaArray = schemaBean.schemaArray;

注册设备监听

监听结果在UTSTuya.onSetCallback的回调onDpUpdate、onRemoved、onStatusChanged、onNetworkStatusChanged、onDevInfoUpdate里

// 注册设备状态监听，页面卸载时移除监听
UTSTuya.registerDevListener(this.device.devId)

取消监听

UTSTuya.unRegisterDevListener(this.device.devId);

发送dps指令给设备

let dps = {};
dps[model.schema.id] = operation;
let params = {};
params.devId = this.device.devId;
params.dps = dps;
// anddroid:local、internet、auto、mqtt、http
// ios: local、internet、auto
params.publishMode = "auto"
// console.log("publishDps params:" + JSON.stringify(params))
UTSTuya.publishDps(params, (resp) => {
    console.log("publishDps resp:" + JSON.stringify(resp))
    if (resp.flag) {
        // 指令下发成功并不是指设备真正操作成功，只是意味着成功发送指令。操作成功会有 DP 数据信息通过 registerDevListener onDpUpdate 接口返回。
        // uni.showToast({
        //  title: "指令下发成功",
        //  duration: 2000
        // });
    } else {
        uni.showToast({
            title: "code:" + resp.code + "  error:" + resp.error,
            duration: 2000
        });
    }
});

查询设备信息

查询的数据通过UTSTuya.registerDevListener里的监听返回

let params = {}
params.devId = ""
params.dpId = ""
UTSTuya.getDp(params, (resp)=>{

})

删除设备

UTSTuya.remove(this.devId, (resp) => {
    if (resp.flag) { // 删除成功

    } else {

    }
});

恢复出厂设置

UTSTuya.resetFactory(this.devId, (resp) => {
    if (resp.flag) {

    } else {

    }
});
