更新记录

1.0.0（2026-06-23）

专注解决 MTK 设备黑屏问题，支持多摄像头预览。

平台兼容性

uni-app(3.7.12)

uni-app x(3.7.12)

zy-uvccamera

📺 演示视频

基于 UVC 协议的 USB 摄像头插件，支持在 Android 设备上连接与使用外接 USB 摄像头，提供相机预览、拍照、录像、参数调节等功能。

特性

• USB 摄像头即插即用（需设备支持 USB Host/OTG）
• 已解决MTK设备预览不正常问题
• 支持预览画面旋转与镜像
• 支持拍照（JPEG 格式）
• 支持录像（MP4 格式，可选音频）
• 支持动态切换分辨率
• 支持调节 UVC 参数（亮度、对比度、饱和度、 hue、白平衡、锐度、增益、曝光、焦距、缩放、背光补偿、Gamma）
• 支持多摄像头设备枚举
• 支持多摄像头同时预览

平台支持

最低 Android SDK 版本: 21 (Android 5.0)

快速开始

引入组件

在页面 template 中使用组件标签：

<zy-uvccamera
  ref="uvcCamera"
  class="camera"
  @onEvent="onEvent"
  @onEventMethod="onEventMethod">
</zy-uvccamera>

打开摄像头

// 自动选择第一个 USB 摄像头
this.$refs.uvcCamera.startCamera()

// 按设备名指定
this.$refs.uvcCamera.startCamera({ deviceName: '/dev/bus/usb/001/002' })

拍照

this.$refs.uvcCamera.takePicture()
// 照片保存至: {app-files-dir}/uvcCamera/uvc_{timestamp}.jpg

录像

// 开始录像（默认采集音频）
this.$refs.uvcCamera.startRecord()

// 关闭音频
this.$refs.uvcCamera.startRecord({ audio: false })

// 停止录像
this.$refs.uvcCamera.stopRecord()
// 视频保存至: {app-files-dir}/uvcCamera/uvc_{timestamp}.mp4

API

组件属性

无外部 props，所有操作通过方法调用与事件监听完成。

事件

@onEvent

处理拍照、录像等异步操作的回调。

onEvent(e) {
  const { type, data } = e.detail
  // data: { message, code, data }
  if (type === 'takePicture' && data.code === 0) {
    console.log('照片已保存:', data.data.uri)
  }
}

事件 type 取值:

@onEventMethod

处理方法调用返回结果。

onEventMethod(e) {
  const { type, data } = e.detail
  // data: { code, msg, data }
  if (type === 'startCamera' && data.code === 0) {
    console.log('摄像头已就绪')
  }
}

事件 type 取值:

方法

startCamera(param?: CameraOptions)

打开 USB 摄像头。

type CameraOptions = {
  deviceName?: string   // 按 USB 设备名选择
  productName?: string  // 按产品名选择
  size?: number[]       // 指定分辨率 [width, height]
}

stopCamera()

关闭摄像头并释放资源。

takePicture()

拍照。成功回调携带 { uri: string }。

startRecord(param?: RecordOptions)

开始录像。

type RecordOptions = {
  audio?: boolean  // 是否录制音频，默认 true
}

stopRecord()

停止录像。成功回调携带 { uri: string, path: string }。

getSupportedSizeList()

获取所有支持的分辨率列表。

getPreviewSize()

获取当前预览分辨率。

setResolution(size: UvcSize)

切换预览分辨率。

type UvcSize = {
  width: number
  height: number
  type?: number      // 7 = MJPEG
  fps?: number
  fpsList?: number[]
}

setPreviewRotationAndMirror(rotation: number, mirror: number)

设置预览旋转与镜像。

• rotation: 0 | 90 | 180 | 270
• mirror: 0=关闭, 1=水平, 2=垂直

isCameraOpen()

查询摄像头是否已打开。

getAllUvcCameras()

枚举所有已连接的 USB 摄像头设备。

type UvcDeviceInfo = {
  deviceName: string
  deviceId: number
  vendorId: number
  productId: number
  manufacturerName: string | null
  productName: string | null
  serialNumber: string | null
  interfaceCount: number
}

getUVCControlParam()

读取当前 UVC 控制参数（含 min/max 范围）。

setUVCControlParam(action: string, value: number)

设置 UVC 控制参数。

resetAllControlParams()

重置所有 UVC 参数到硬件默认值。

错误码

权限与要求

Android 权限

<uses-permission android:name="android.permission.CAMERA" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.RECORD_AUDIO" />

硬件要求

• 设备须支持 USB Host 模式（OTG）
• Android 5.0 (API 21) 及以上

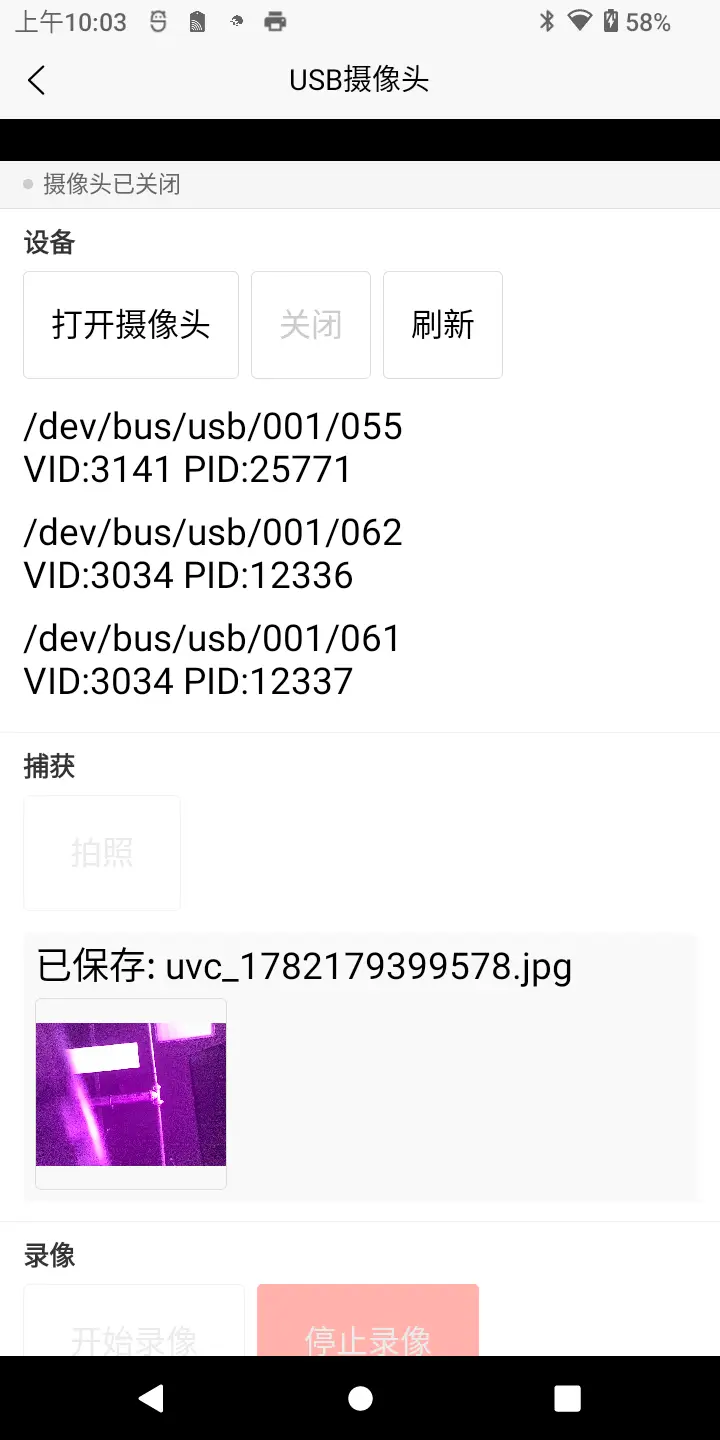

完整示例

<template>
    <view class="page">
        <scroll-view scroll-y class="scroll-content">
            <view class="preview-wrap">
                <zy-uvccamera ref="uvcCamera" class="camera" @onEvent="onEvent" @onEventMethod="onEventMethod">
                </zy-uvccamera>
            </view>

            <view class="status-bar">
                <view class="status-dot" :class="cameraReady ? 'dot-online' : 'dot-offline'"></view>
                <text class="status-text">{{ statusText }}</text>
            </view>

            <view class="section">
                <text class="section-title">设备</text>
                <view class="btn-row">
                    <button class="btn" :class="cameraReady ? 'btn-disabled' : ''" @click="startCamera(null)"
                        :disabled="cameraReady">打开摄像头</button>
                    <button class="btn" :class="!cameraReady ? 'btn-disabled' : ''" @click="stopCamera"
                        :disabled="!cameraReady">关闭</button>
                    <button class="btn" @click="refreshDevices">刷新</button>
                </view>
                <view v-if="deviceList.length" class="device-list">
                <view class="device-item" v-for="(d, i) in deviceList" :key="i" @click="startCamera(d.deviceName)">
                        <text>{{ d.deviceName || ('设备' + i) }}</text>
                        <text>VID:{{ d.vendorId }} PID:{{ d.productId }}</text>
                    </view>
                </view>
                <text class="hint" v-else>未检测到 USB 摄像头设备</text>
            </view>

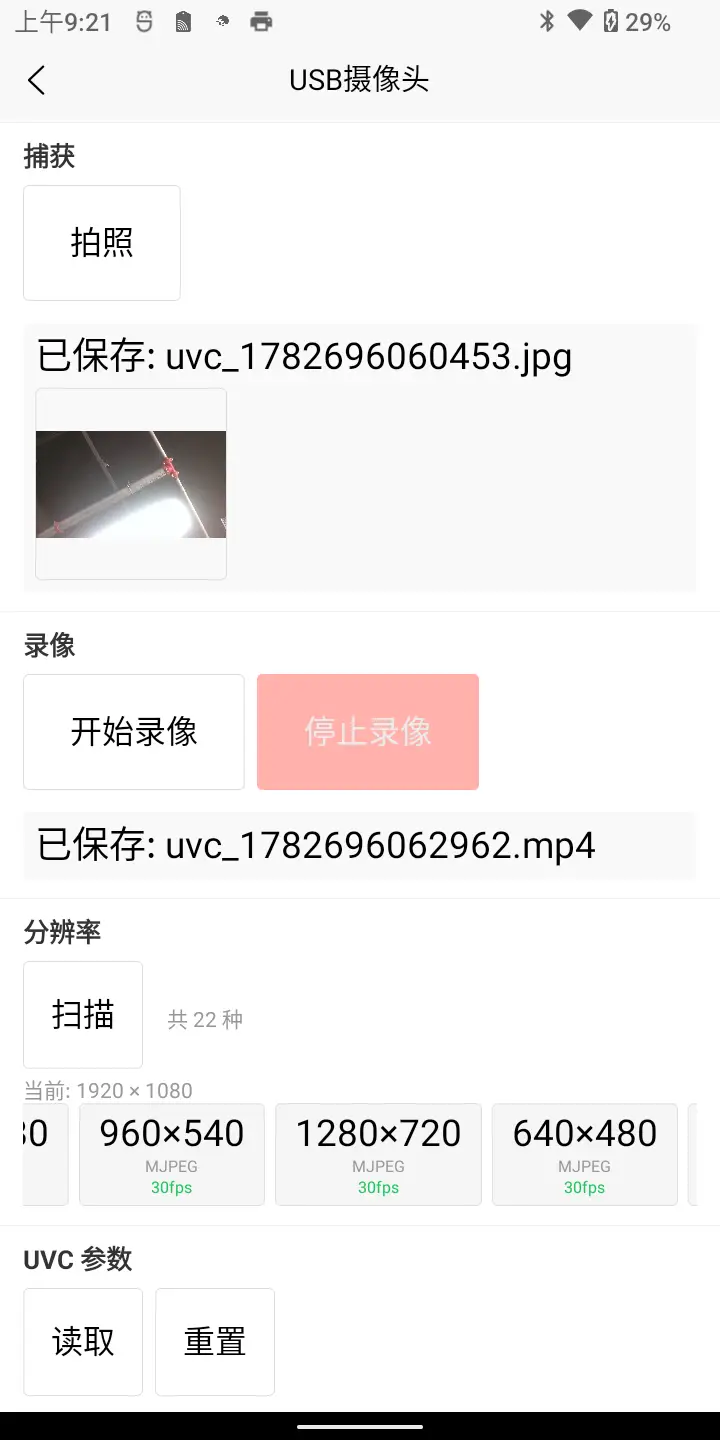

            <view class="section">
                <text class="section-title">捕获</text>
                <view class="btn-row">
                    <button class="btn btn-capture" :class="!cameraReady ? 'btn-disabled' : ''" @click="takePicture"
                        :disabled="!cameraReady">拍照</button>
                </view>
                <view class="file-result" v-if="lastFilePath">
                    <text>已保存: {{ lastFileName }}</text>
                    <image :src="previewPath" class="preview-img" mode="aspectFit" v-if="previewPath"></image>
                </view>
            </view>

            <view class="section">
                <text class="section-title">录像</text>
                <view class="btn-row">
                    <button class="btn btn-capture" :class="!cameraReady || isRecording ? 'btn-disabled' : ''"
                        @click="startRecord" :disabled="!cameraReady || isRecording">开始录像</button>
                    <button class="btn btn-capture" :class="!isRecording ? 'btn-disabled' : ''"
                        @click="stopRecord" :disabled="!isRecording" style="background:#ff3b30;color:#fff;border-color:#ff3b30">停止录像</button>
                </view>
                <view class="file-result" v-if="lastVideoPath">
                    <text>已保存: {{ lastVideoName }}</text>
                </view>
                <text class="hint" v-if="recordingStatus" style="color:#ff3b30">● {{ recordingStatus }}</text>
            </view>

            <view class="section">
                <text class="section-title">分辨率</text>
                <view class="btn-row">
                    <button class="btn" :class="!cameraReady ? 'btn-disabled' : ''" @click="loadSupportedSizes"
                        :disabled="!cameraReady">扫描</button>
                    <text class="hint" v-if="supportedSizes.length" style="margin-left:12rpx">共 {{ supportedSizes.length }} 种</text>
                </view>
                <text class="hint" v-if="currentPreviewSize">
                    当前: {{ currentPreviewSize.width }} × {{ currentPreviewSize.height }}
                </text>
                <scroll-view scroll-x class="size-scroll" v-if="supportedSizes.length">
                    <view class="size-chip" v-for="(s, i) in supportedSizes" :key="i"
                        @click="applyResolution(s)"
                        :class="currentPreviewSize && currentPreviewSize.width == s.width && currentPreviewSize.height == s.height ? 'size-chip-active' : ''">
                        <text>{{ s.width }}×{{ s.height }}</text>
                        <text class="size-type">{{ s.type == 7 ? 'MJPEG' : 'YUYV' }}</text>
                        <text class="size-fps" v-if="s.fps">{{ s.fps }}fps</text>
                    </view>
                </scroll-view>
            </view>

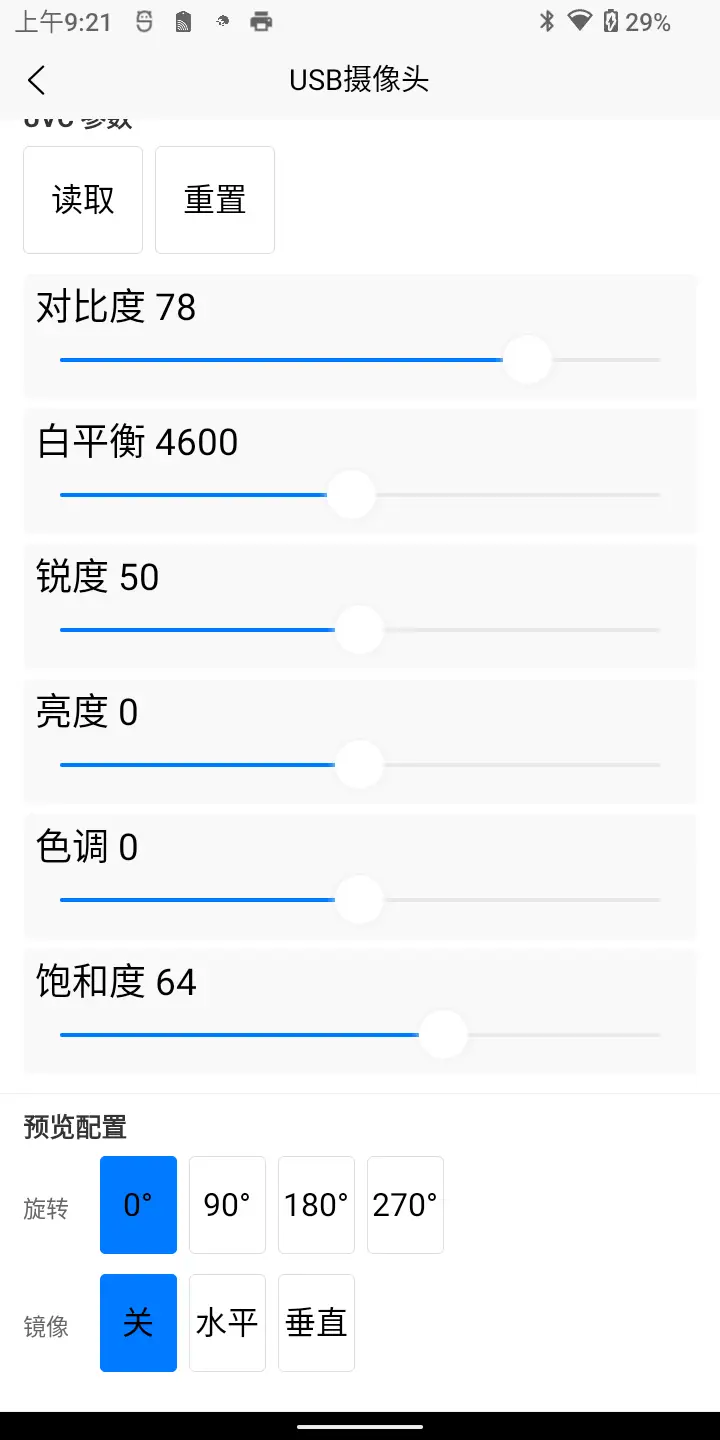

            <view class="section">
                <text class="section-title">UVC 参数</text>
                <view class="btn-row">
                    <button class="btn" :class="!cameraReady ? 'btn-disabled' : ''" @click="loadUVCParams">读取</button>
                    <button class="btn" :class="!cameraReady ? 'btn-disabled' : ''"
                        @click="resetControlParams">重置</button>
                </view>
                <view v-if="!Object.keys(controlParams).length" class="hint">点击"读取"获取当前值</view>
                <view class="control-group" v-for="(ctrl, key) in controlParams" :key="key">
                    <view class="control-header">
                        <text>{{ ctrl.label }} {{ ctrl.current }}</text>
                    </view>
                    <slider :min="ctrl.min" :max="ctrl.max" :value="ctrl.current"
                        @changing="onSliderChanging(key, $event)" @change="onSliderChange(key, $event)" />
                </view>
            </view>

            <view class="section">
                <text class="section-title">预览配置</text>
                <view class="config-row">
                    <text class="config-label">旋转</text>
                    <view class="btn-row">
                        <button class="btn btn-xs" :class="rotation == 0 ? 'btn-active' : ''"
                            @click="setRotation(0)">0°</button>
                        <button class="btn btn-xs" :class="rotation == 90 ? 'btn-active' : ''"
                            @click="setRotation(90)">90°</button>
                        <button class="btn btn-xs" :class="rotation == 180 ? 'btn-active' : ''"
                            @click="setRotation(180)">180°</button>
                        <button class="btn btn-xs" :class="rotation == 270 ? 'btn-active' : ''"
                            @click="setRotation(270)">270°</button>
                    </view>
                </view>
                <view class="config-row">
                    <text class="config-label">镜像</text>
                    <view class="btn-row">
                        <button class="btn btn-xs" :class="mirror == 0 ? 'btn-active' : ''"
                            @click="setMirror(0)">关</button>
                        <button class="btn btn-xs" :class="mirror == 1 ? 'btn-active' : ''"
                            @click="setMirror(1)">水平</button>
                        <button class="btn btn-xs" :class="mirror == 2 ? 'btn-active' : ''"
                            @click="setMirror(2)">垂直</button>
                    </view>
                </view>
            </view>
        </scroll-view>
    </view>
</template>

<script>
    function unwrapUTS(obj) {
        if (!obj || typeof obj !== 'object') return obj
        if (obj.dynamicJSONFields) return unwrapUTS(obj.dynamicJSONFields)
        if (Array.isArray(obj)) return obj.map(unwrapUTS)
        let result = {}
        for (let key of Object.keys(obj)) {
            if (key === 'jSONArray') continue
            result[key] = unwrapUTS(obj[key])
        }
        return result
    }

    export default {
        data() {
            return {
                cameraReady: false,
                statusText: '等待 USB 摄像头...',
                lastFilePath: '',
                lastFileName: '',
                previewPath: '',
                deviceList: [],
                supportedSizes: [],
                currentPreviewSize: null,
                rotation: 0,
                mirror: 0,
                controlParams: {},
                isRecording: false,
                recordingStatus: '',
                lastVideoPath: '',
                lastVideoName: ''
            }
        },
        methods: {
            onEvent(e) {
                let data = unwrapUTS(e.detail)
                console.log("onEvent", data)
                if (!data) return
                let payload = data.data
                if (data.type == 'takePicture' && payload.code == 0) {
                    uni.hideLoading()
                    let d = payload.data
                    this.lastFileName = d.uri ? d.uri.substring(d.uri.lastIndexOf('/') + 1) : ''
                    this.lastFilePath = d.uri || ''
                    this.previewPath = d.uri || ''
                } else if (data.type == 'startRecord' && payload.code == 0) {
                    this.isRecording = true
                    this.recordingStatus = '录制中...'
                } else if (data.type == 'stopRecord' && payload.code == 0) {
                    this.isRecording = false
                    this.recordingStatus = ''
                    let d = payload.data
                    this.lastVideoName = d.uri ? d.uri.substring(d.uri.lastIndexOf('/') + 1) : ''
                    this.lastVideoPath = d.uri || ''
                    this.statusText = '录制完成'
                } else if (data.type == 'stopRecord' && payload.code != 0) {
                    this.isRecording = false
                    this.recordingStatus = ''
                    this.statusText = payload.message || '录制失败'
                } else if (payload.code != 0) {
                    this.statusText = payload.message || ''
                }
            },
            onEventMethod(e) {
                let data = unwrapUTS(e.detail)
                console.log("onEventMethod", data)
                if (!data) return
                let payload = data.data
                this.statusText = payload.msg || ''
                if (data.type == 'getAllUvcCameras' && payload.code == 0) {
                    this.deviceList = payload.data.devices || []
                } else if (data.type == 'startCamera' && payload.code == 0) {
                    this.cameraReady = true
                    this.statusText = '摄像头已就绪'
                } else if (data.type == 'stopCamera' && payload.code == 0) {
                    this.cameraReady = false
                } else if (data.type == 'takePicture' && payload.code == 0) {
                    uni.hideLoading()
                    let d = payload.data
                    this.lastFileName = d.uri ? d.uri.substring(d.uri.lastIndexOf('/') + 1) : ''
                    this.lastFilePath = d.uri || ''
                    this.previewPath = d.uri || ''
                } else if (data.type == 'startRecord' && payload.code == 0) {
                    this.isRecording = true
                    this.recordingStatus = '录制中...'
                } else if (data.type == 'stopRecord' && payload.code == 0) {
                    this.isRecording = false
                    this.recordingStatus = ''
                } else if (data.type == 'getSupportedSizeList' && payload.code == 0) {
                    this.supportedSizes = payload.data.sizes || []
                    this.statusText = '获取到 ' + this.supportedSizes.length + ' 种分辨率'
                } else if (data.type == 'getPreviewSize' && payload.code == 0) {
                    this.currentPreviewSize = payload.data
                } else if (data.type == 'startRecord' && payload.code != 0) {
                    this.statusText = payload.msg || '启动录像失败'
                } else if (data.type == 'stopRecord' && payload.code != 0) {
                    this.isRecording = false
                    this.recordingStatus = ''
                    this.statusText = payload.msg || '停止录像失败'
                } else if (data.type == 'getUVCControlParam' && payload.code == 0) {
                    let raw = payload.data
                    let params = {}
                    Object.keys(raw).forEach(key => {
                        let item = raw[key]
                        params[key] = {
                            current: item.current,
                            min: item.limit.min,
                            max: item.limit.max,
                            label: { brightness: '亮度', contrast: '对比度', saturation: '饱和度', hue: '色调', whiteBalance: '白平衡', sharpness: '锐度' }[key] || key
                        }
                    })
                    this.controlParams = params
                } else if (payload.code != 0 && payload.msg) {
                    uni.hideLoading()
                }
            },
            refreshDevices() {
                this.$refs.uvcCamera.getAllUvcCameras()
            },
            startCamera(deviceName) {
                this.statusText = '正在打开摄像头...'
                this.$refs.uvcCamera.startCamera({deviceName:deviceName})
            },
            stopCamera() {
                this.cameraReady = false
                this.statusText = '正在关闭...'
                this.$refs.uvcCamera.stopCamera()
            },
            takePicture() {
                this.statusText = '拍照中...'
                uni.showLoading({ title: '拍照中...', mask: true })
                try {
                    this.$refs.uvcCamera.takePicture()
                } catch (e) {
                    uni.hideLoading()
                    this.statusText = '拍照失败: ' + e.message
                }
            },
            startRecord() {
                this.recordingStatus = '启动中...'
                try {
                    this.$refs.uvcCamera.startRecord()
                } catch (e) {
                    this.recordingStatus = ''
                    this.statusText = '启动录像失败: ' + e.message
                }
            },
            stopRecord() {
                try {
                    this.$refs.uvcCamera.stopRecord()
                } catch (e) {
                    this.statusText = '停止录像失败: ' + e.message
                }
            },
            loadSupportedSizes() {
                this.$refs.uvcCamera.getSupportedSizeList()
                this.$refs.uvcCamera.getPreviewSize()
            },
            applyResolution(size) {
                this.statusText = '切换中...'
                this.$refs.uvcCamera.setResolution(size)
            },
            loadUVCParams() {
                this.$refs.uvcCamera.getUVCControlParam()
            },
            onSliderChanging(key, e) {
                if (this.controlParams[key]) {
                    this.controlParams[key].current = e.detail.value
                }
            },
            onSliderChange(key, e) {
                let val = parseInt(e.detail.value)
                this.$refs.uvcCamera.setUVCControlParam('set' + key.charAt(0).toUpperCase() + key.slice(1), val)
            },
            resetControlParams() {
                this.statusText = '重置中...'
                this.$refs.uvcCamera.resetAllControlParams()
            },
            setRotation(deg) {
                this.rotation = deg
                this.$refs.uvcCamera.setPreviewRotationAndMirror(deg, this.mirror)
            },
            setMirror(mode) {
                this.mirror = mode
                this.$refs.uvcCamera.setPreviewRotationAndMirror(this.rotation, mode)
            }
        }
    }
</script>

<style>
    .page { flex: 1; background: #fff; }
    .scroll-content { flex: 1; }
    .preview-wrap { width: 750rpx; height: 360px; background: #000; }
    .camera { width: 750rpx; height: 360px; }
    .status-bar { flex-direction: row; align-items: center; padding: 10rpx 24rpx; background: #f5f5f5; border-bottom: 1rpx solid #e0e0e0; }
    .status-dot { width: 10rpx; height: 10rpx; border-radius: 5rpx; margin-right: 10rpx; }
    .dot-online { background: #22c55e; }
    .dot-offline { background: #ccc; }
    .status-text { font-size: 24rpx; color: #666; }
    .section { padding: 20rpx 24rpx; border-bottom: 1rpx solid #f0f0f0; }
    .section-title { font-size: 28rpx; color: #333; font-weight: 600; margin-bottom: 14rpx; }
    .btn-row { flex-direction: row; flex-wrap: wrap; align-items: center; }
    .btn { padding: 14rpx 28rpx; border-radius: 6rpx; font-size: 26rpx; color: #333; background: #fff; border: 1rpx solid #ddd; text-align: center; margin-right: 12rpx; margin-bottom: 10rpx; }
    .btn-xs { padding: 8rpx 20rpx; font-size: 22rpx; width: 80rpx; }
    .btn-active { background: #007aff; color: #fff; border-color: #007aff; }
    .btn-disabled { opacity: 0.4; }
    .btn-capture { padding: 18rpx 48rpx; font-size: 28rpx; }
    .device-list { margin-top: 6rpx; }
    .device-item { padding: 10rpx 0; font-size: 24rpx; color: #333; }
    .file-result { margin-top: 12rpx; padding: 12rpx; background: #f9f9f9; border-radius: 6rpx; font-size: 22rpx; color: #999; }
    .preview-img { width: 200rpx; height: 200rpx; margin-top: 10rpx; border-radius: 6rpx; border: 1rpx solid #ddd; }
    .size-scroll { flex-direction: row; }
    .size-chip { padding: 8rpx 20rpx; background: #f5f5f5; border-radius: 6rpx; margin-right: 10rpx; border: 1rpx solid #e0e0e0; flex-direction: column; align-items: center; font-size: 24rpx; color: #333; }
    .size-chip-active { background: #007aff; border-color: #007aff; }
    .size-type { font-size: 18rpx; color: #999; margin-top: 2rpx; }
    .size-fps { font-size: 18rpx; color: #22c55e; margin-top: 2rpx; }
    .control-group { margin-top: 10rpx; padding: 12rpx; background: #f9f9f9; border-radius: 6rpx; }
    .control-header { margin-bottom: 4rpx; font-size: 24rpx; color: #333; }
    .config-row { flex-direction: row; align-items: center; margin-bottom: 10rpx; }
    .config-label { font-size: 24rpx; color: #666; width: 80rpx; }
    .hint { font-size: 22rpx; color: #999; }
</style>
