更新记录

1.0.0（2022-04-07） 下载此版本

1.0.0 实现手势识别算法

平台兼容性

原生插件通用使用流程：

1. 购买插件，选择该插件绑定的项目。
2. 在HBuilderX里找到项目，在manifest的app原生插件配置中勾选模块，如需要填写参数则参考插件作者的文档添加。
3. 根据插件作者的提供的文档开发代码，在代码中引用插件，调用插件功能。
4. 打包自定义基座，选择插件，得到自定义基座，然后运行时选择自定义基座，进行log输出测试。
5. 开发完毕后正式云打包

付费原生插件目前不支持离线打包。
Android 离线打包原生插件另见文档 https://nativesupport.dcloud.net.cn/NativePlugin/offline_package/android
iOS 离线打包原生插件另见文档 https://nativesupport.dcloud.net.cn/NativePlugin/offline_package/ios

注意事项：使用HBuilderX2.7.14以下版本，如果同一插件且同一appid下购买并绑定了多个包名，提交云打包界面提示包名绑定不一致时，需要在HBuilderX项目中manifest.json->“App原生插件配置”->”云端插件“列表中删除该插件重新选择

石头剪刀布 猜丁壳 手势识别

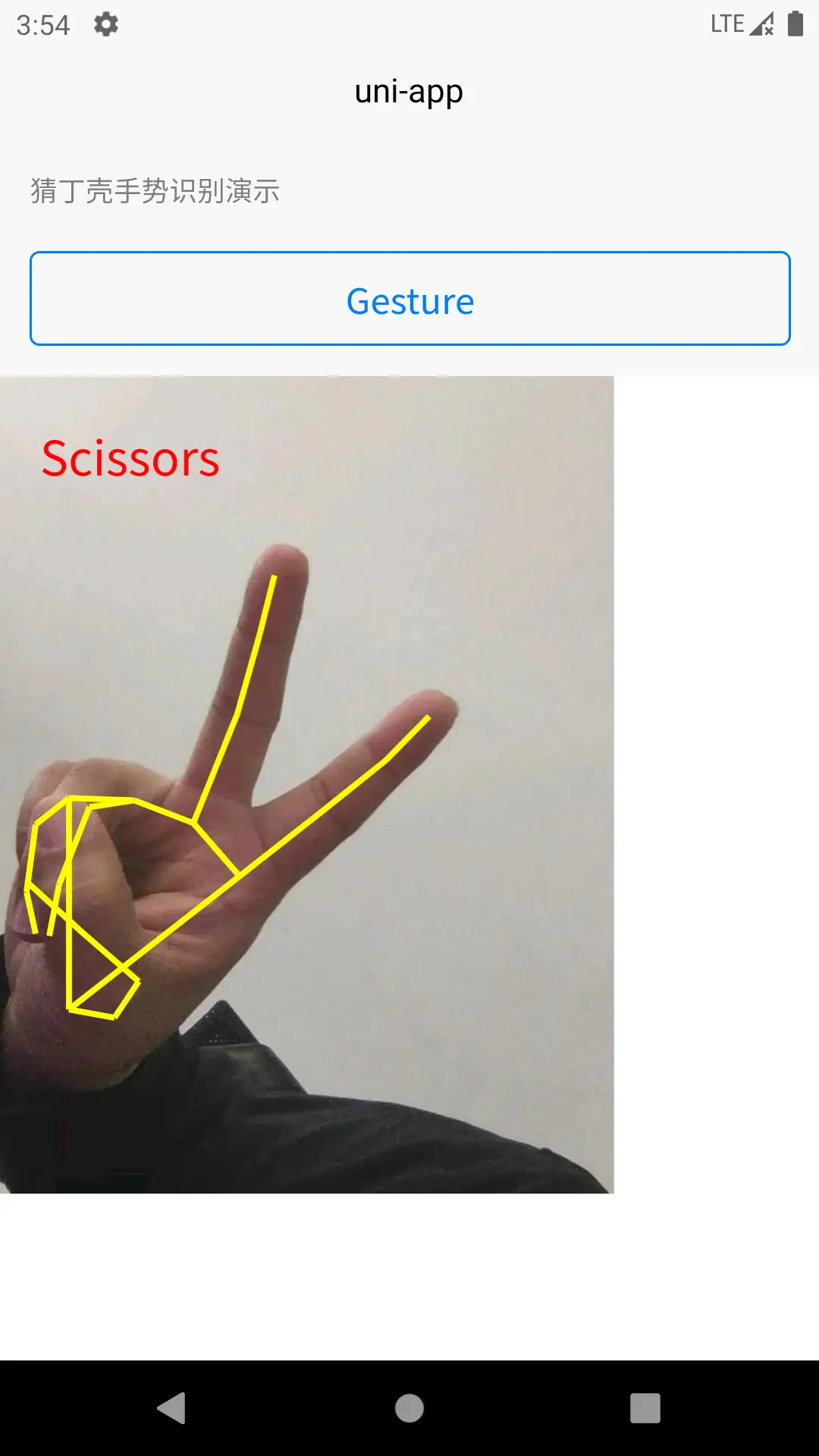

1、插件说明 此插件实现手势识别算法。

2、代码示例

<template>
    <view>
        <view class="uni-container">
            <view class="uni-hello-text">
                <text class="hello-text">猜丁壳手势识别演示</text>
            </view>
            <button type="primary" plain="true" @click="testGesture()">Gesture</button>
        </view>
        <canvas :style="{ width:  canw+'px', height: canh+'px' }" canvas-id="myCanvas" id="myCanvas"></canvas>
    </view>
</template>

<script>
// 获取 module
const gesture = uni.requireNativePlugin('kk-gesture');
export default {
    data() {
        canw: 0,
        canh: 0,
    },
    onLoad() {
        gesture.create()
    },
    methods: {
        testGesture() {
            const _this = this

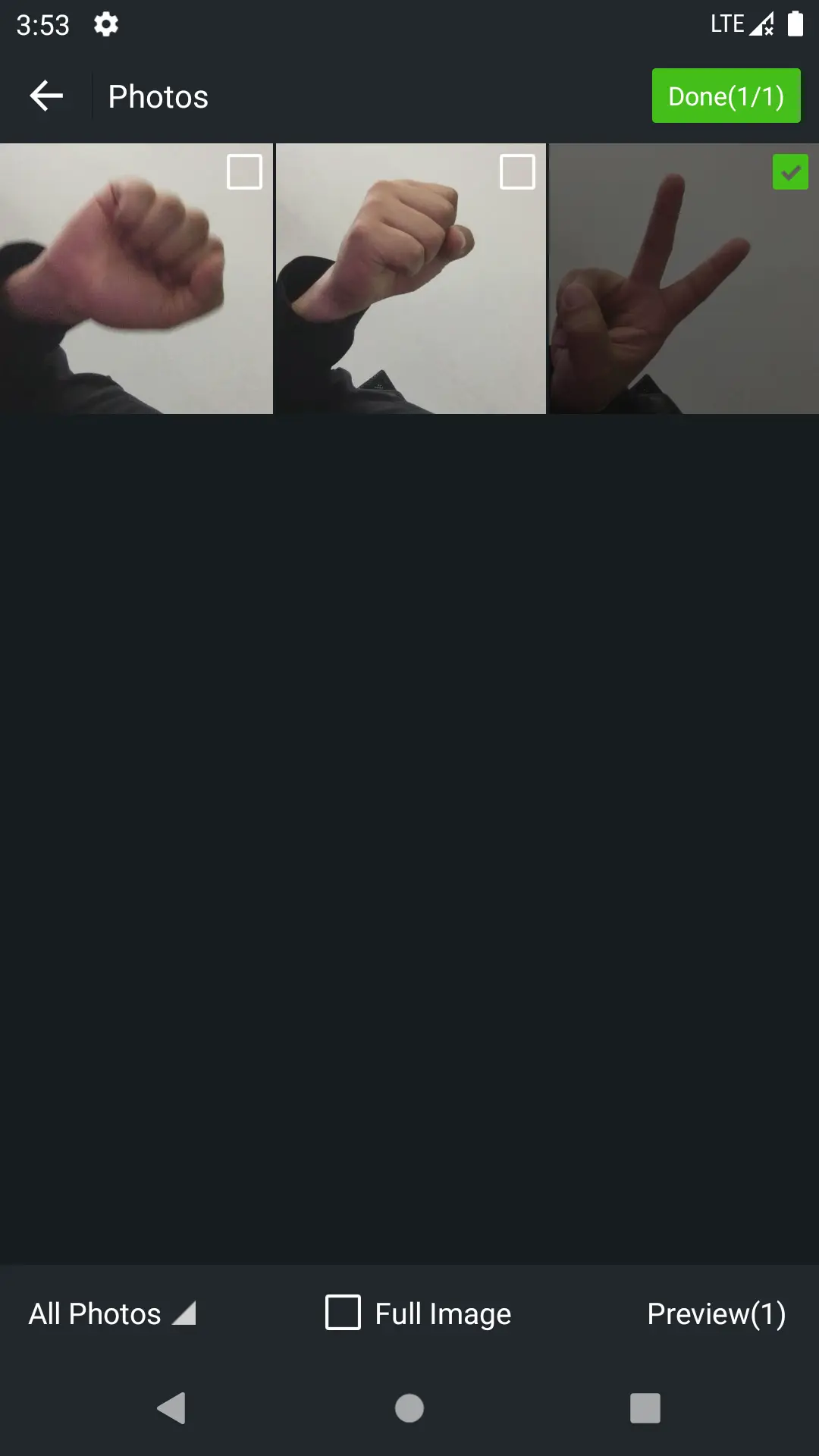

            uni.chooseImage({
                count: 1, //默认9
                sizeType: ['original', 'compressed'], //可以指定是原图还是压缩图，默认二者都有
                sourceType: ['album', 'camera'], //从相册选择
                success: async function(res) {
                    const info = await uni.getSystemInfoSync()
                    const image_path = plus.io.convertLocalFileSystemURL(res.tempFilePaths[0])

                    gesture.predict({
                        image: image_path,
                        threshold: 0.5
                    }, (ret) => {
                        // uni.showModal({
                        //  title: '识别结果',
                        //  content: JSON.stringify(ret),
                        //  showCancel: false
                        // })
                        console.log(ret)
                        // const image_path = res.tempFilePaths[0]
                        // var ret = {"height":256,"objects":[{"confidence":0.8696145,"landmarks":[{"x":138,"y":224},{"x":170,"y":202},{"x":191,"y":171},{"x":199,"y":143},{"x":199,"y":123},{"x":148,"y":130},{"x":145,"y":91},{"x":141,"y":69},{"x":136,"y":51},{"x":126,"y":131},{"x":117,"y":90},{"x":110,"y":65},{"x":103,"y":45},{"x":107,"y":140},{"x":96,"y":104},{"x":89,"y":80},{"x":83,"y":62},{"x":90,"y":155},{"x":77,"y":130},{"x":69,"y":112},{"x":63,"y":96}],"text":"Paper"}],"width":256}

                        const styles = [
                            [0, 1], [1, 2], [2, 3], [3, 4],
                            [5, 6], [6, 7], [7, 8],
                            [9, 10], [10, 11], [11, 12],
                            [13, 14], [14, 15], [15, 16],
                            [17, 18], [18, 19], [19, 20],
                            [0, 5], [5, 9], [9, 13], [13, 17],
                            [0, 17],
                        ];

                        var imgw = ret["width"]
                        var imgh = ret["height"]
                        _this.canw = info.windowWidth
                        _this.canh = info.windowWidth

                        var scale = Math.min(_this.canw / imgw, _this.canh / imgh)
                        var neww = scale * imgw
                        var newh = scale * imgh

                        var ctx = uni.createCanvasContext('myCanvas')
                        ctx.drawImage(res.tempFilePaths[0], 0, 0, neww, newh)

                        console.log(_this.canw, _this.canh, scale)

                        ctx.strokeStyle = "rgb(255, 255, 0)"
                        ctx.lineWidth = 3
                        ret.objects.forEach(obj => {
                            var lmk = obj.landmarks
                            styles.forEach(s => {
                                ctx.moveTo(lmk[s[0]].x * scale, lmk[s[0]].y * scale)
                                ctx.lineTo(lmk[s[1]].x * scale, lmk[s[1]].y * scale)
                            })
                            ctx.stroke()
                            ctx.setFontSize(24)
                            ctx.fillStyle = "#f00"
                            ctx.fillText(obj.text, 20, 50)
                        })
                        ctx.draw()
                    })
                }
            });
        },
    }
}
</script>
