更新记录

1.6.4（2026-03-11）

功能基本稳定

1.6.3（2026-02-09）

安卓端增加高德 tts 初始化接口

1.6.2（2026-02-04）

安卓后台定位通知栏文字支持自定义

平台兼容性

uni-app x(4.87)

pow-amapx

开发文档

UTS 语法 UTS API插件 UTS uni-app兼容模式组件 UTS 标准模式组件 Hello UTS

欢迎试用本插件，觉得合适再考虑购买

已支持：

1. 高德sdk，鸿蒙+安卓+ios
2. 定位功能：单次定位+持续定位+后台定位，安卓保活
3. 地图功能：控制以及绘制线+绘制圆+绘制多边形+绘制marker，地图上的多个marker可以同时显示气泡, 离线地图
4. 搜索功能：路线规划接口，地理信息查询，逆地理信息查询，行驶距离测量
5. 导航功能：驾车导航、步行导航、骑行导航、货车导航（鸿蒙端高德本身sdk目前不支持骑行/步行导航）
6. TTS功能： ios 安卓 鸿蒙 三端都支持语音播报功能
7. 关于后台定位，开始持续定位时，会去申请后台定位权限，申请成功后，即使app退到后台，定位也会继续。如果用户没同意后台定位权限。那就得自己做界面提示用户，让用户去设置界面手动去设置允许后台(始终)定位权限了
8. 只支持 uniappx，不支持 uniapp
9. 三端接口统一，所有功能，只要调一样的接口就行
10. 插件体积小，避免超过打包限制
11. 努力增加功能中...
12. 有未实现的需求的老板可以点上方进入[进入交流群]按钮定制需求，或者随时沟通
13. 如果需要支持 uniapp 可以参考本人另一款插件高德定位、地图、导航全功能，简单易用，支持安卓和iOS

使用方式

1. 在插件市场导入本插件到工程中（试用也可以）
2. 【鸿蒙】把示例工程根目录中的harmony-configs复制到自己工程根目录
3. 【鸿蒙】鸿蒙不用打自定义基座，直接仿照示例工程中的 index.uvue 中的getHarmonyAppId()方法，在自己项目中调用getHarmonyAppId()获取鸿蒙的 专属appIdentifier
4. 申请高德地图的key。（鸿蒙要把专属appIdentifier粘贴到高德地图key的申请页面）
5. 【鸿蒙，安卓，iOS】参考示例工程的index.uvue中的initAmapSDK方法，调用插件的setAmapKey方法
6. 【安卓】在 manifest.json 里面把targetSdkVersion 设置到 33 或者更高
7. 【安卓，iOS】打自定义基座（鸿蒙不需要打）
8. 【安卓，iOS】运行到自定义基座，【鸿蒙】直接运行
9. 【鸿蒙，安卓，iOS】参考示例工程的index.uvue中的申请定位权限,单次定位,持续定位方法
10. 【鸿蒙】鸿蒙平台如果想调用持续后台定位，需要参考示例工程的App.uvue，在自己工程的App.uvue的onShow调用amapOnAppShow()，在onHide调用amapOnAppHide()
11. 导航使用方式可以仿照powamap/pages/index/navi-view.uvue创建一个导航页面，然后仿照powamap/pages/index/navi.uvue来设置导航参数
12. 【HBuilderX的bug】【鸿蒙】4.87以及之前的hbx，试用插件鸿蒙端无法运行，不是插件问题，是 hbx 问题，要先这样绕过：把插件中的 项目根目录/uni_modules/pow-amapx/components 目录剪切，粘贴到 uni_modules 之外，让 components 目录和 uni_modules 目录平级，变成 项目根目录/components，然后就能正常运行了

示例页面

• pages/index/index.uvue：入口页，汇总所有功能按钮（定位、搜索、工具、TTS、离线地图等），用于快速验证接口。

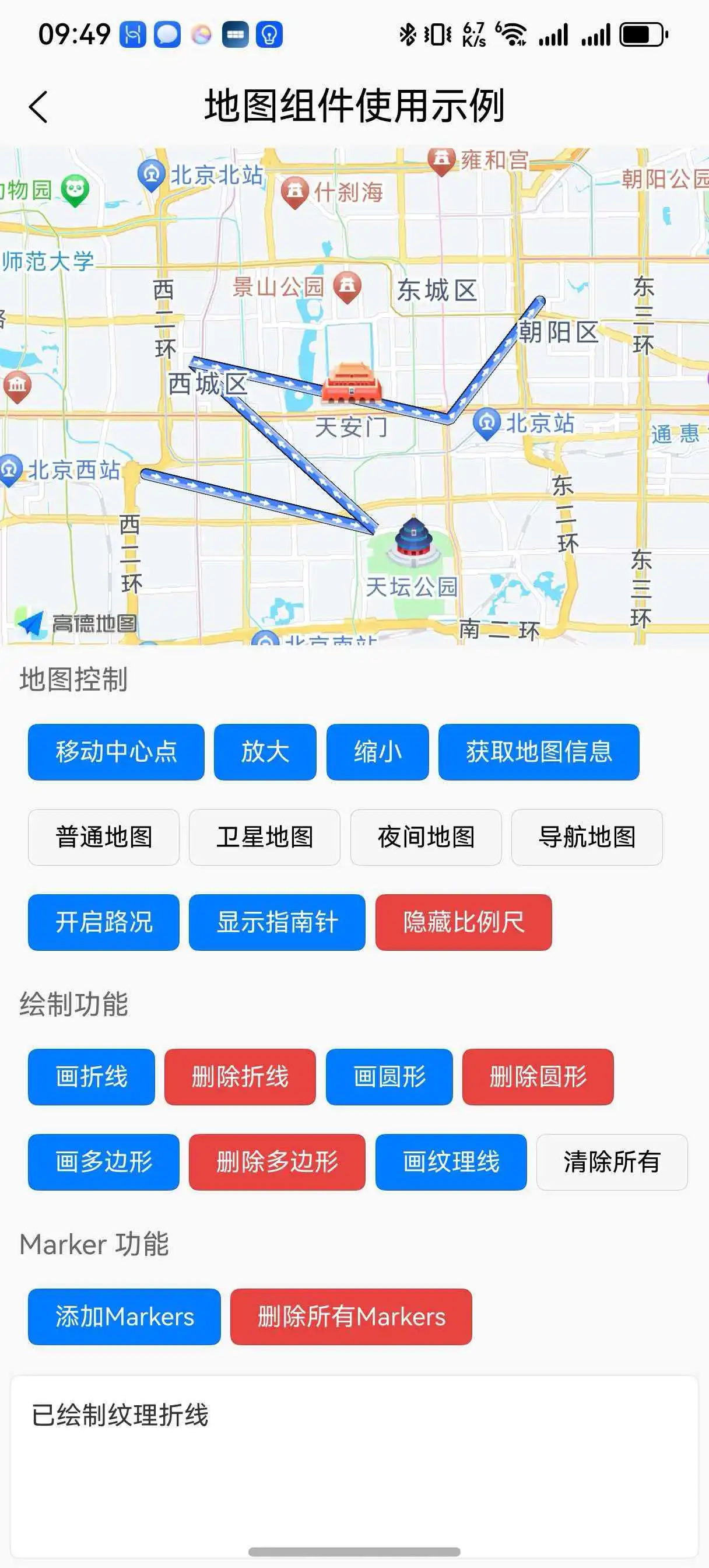

• pages/index/map.uvue：地图组件示例页，包含地图控制、绘制、手势、路径规划、热力图与海量点等。

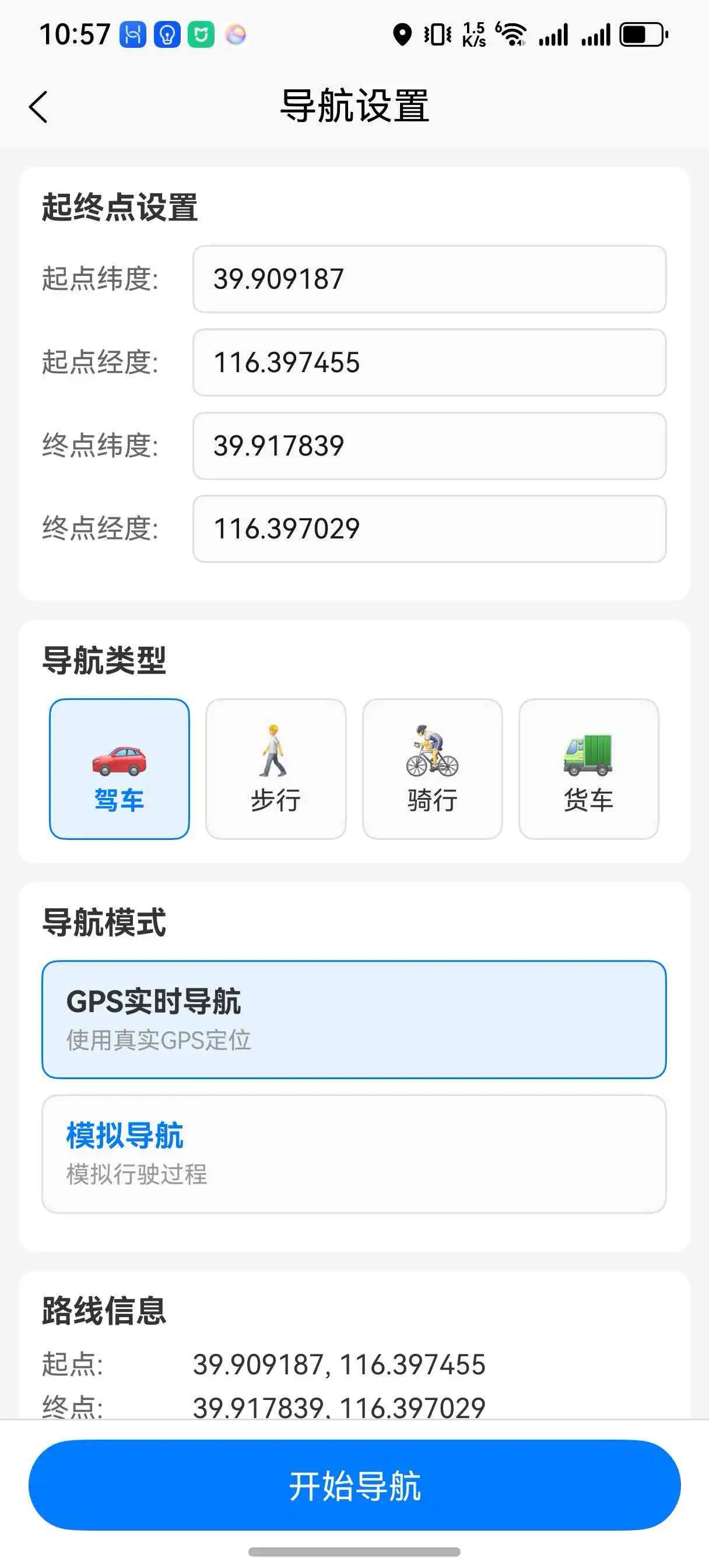

• pages/index/navi.uvue：导航参数配置页，设置起终点、导航方式与模式。

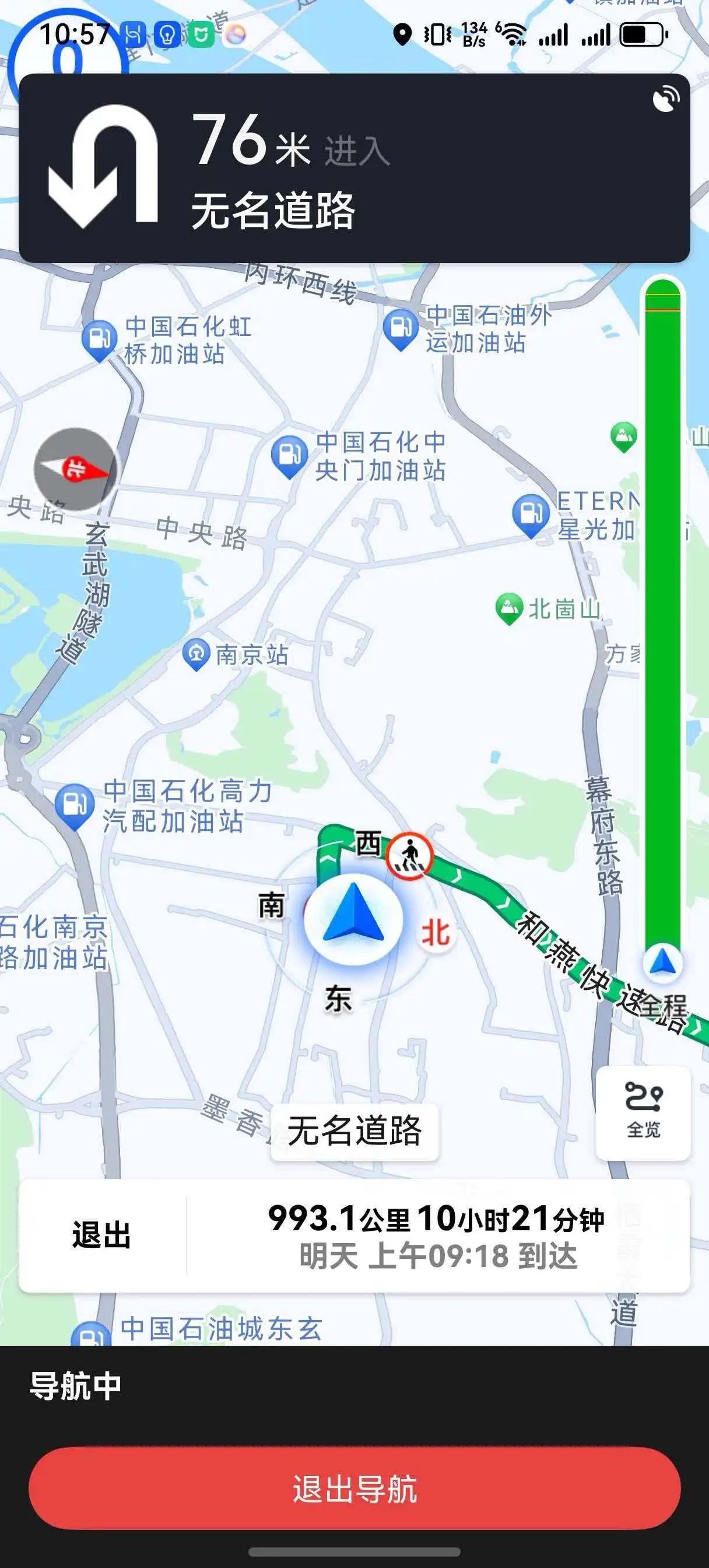

• pages/index/navi-view.uvue：导航展示页，承载导航组件并接收导航回调。
• pages/index/cruise.uvue：巡航示例页，展示巡航/监听相关功能。
• pages/index/map-offline-map-controller.uvue：离线地图页（鸿蒙端），承载 OfflineMapPage 组件展示离线地图管理界面。
• pages/index/map-setup写法.uvue：地图页面的 vue3 setup 写法。

接口示例

接口功能

<template>
    <view class="container">
        <scroll-view class="scroll-area" scroll-y="true">
            <text class="title">系统功能</text>
            <view class="content">
                <button type="primary" class="btn" size="mini" @click="jianchadingweiquanxian">检查定位权限</button>
                <button type="primary" class="btn" size="mini" @click="jianchahoutaidinweiquanxian">检查和申请后台定位权限</button>
                <button type="primary" class="btn" size="mini" @click="jiazailixian">加载离线地图</button>
                <!--  #ifdef  APP-ANDROID -->
                <button type="primary" class="btn" size="mini" @click="shenqingtongzhilanquanxian">申请通知栏权限</button>
                <button type="primary" class="btn" size="mini" @click="jianchahuluedianchi">检查忽略电池优化</button>
                <button type="primary" class="btn" size="mini" @click="shenqinghuluedianchi">申请忽略电池优化</button>
                <!-- #endif -->
                <!--  #ifdef  APP-HARMONY -->
                <button type="primary" class="btn" @click="reqHarmonyAppId" size='mini'>获取鸿蒙AppId</button>
                <!-- #endif -->
                <button type="primary" class="btn" size="mini" @click="goToMap">跳转到地图</button>
                <button type="primary" class="btn" size="mini" @click="goToNavi">跳转到导航</button>
                <button type="primary" class="btn" size="mini" @click="goToCruise">跳转到巡航</button>
            </view>
            <view class="content">
                <text class="switch-label">屏幕常亮：{{keepScreenOn ? '开启' : '关闭'}}</text>
                <switch class="switch-item" :checked="keepScreenOn" @change="toggleKeepScreenOn" />
            </view>
            <text class="title">定位功能</text>
            <view class="content">
                <button type="primary" class="btn" size="mini" @click="dancidingwei">单次定位</button>
                <button type="primary" class="btn" size="mini" @click="chixudingwei">持续定位</button>
                <button type="primary" class="btn" size="mini" @click="jieshuchixudingwei">结束持续定位</button>
            </view>
            <text class="title">搜索功能</text>
            <view class="content">
                <button type="primary" class="btn" size="mini" @click="searchPoi">关键词搜索</button>
                <button type="primary" class="btn" size="mini" @click="searchNearby">周边搜索</button>
            </view>
            <view class="content">
                <button type="primary" class="btn" size="mini" @click="searchGeocode">地理编码</button>
                <button type="primary" class="btn" size="mini" @click="searchRegeocode">逆地理编码</button>
            </view>
            <text class="title">工具功能</text>
            <view class="content">
                <button type="primary" class="btn" size="mini" @click="calcDistance">计算距离</button>
                <button type="primary" class="btn" size="mini" @click="calcArea">计算面积</button>
                <button type="primary" class="btn" size="mini" @click="convertCoord">坐标转换</button>
                <button type="primary" class="btn" size="mini" @click="calcDriveDistance">驾车距离测量</button>
            </view>
            <text class="title">TTS语音播报</text>
            <view class="content">
                <input class="voice-input" placeholder="输入要播放的文字" :value="ttsText" @input="inputTTSText" />
            </view>
            <view class="content">
                <button type="primary" class="btn" size="mini" @click="readTTS">播放</button>
            </view>
        </scroll-view>

        <!-- 结果显示区域 -->
        <view class="result-area">
            <text class="result-text">{{resultText}}</text>
        </view>
    </view>
</template>

<script lang="uts" setup>
    import {
        setAmapKey,
        getAmapLocation,
        startAmapLocation,
        stopAmapLocation,
        checkAndRequestLocationPermission,
        checkAndRequestBackgroundLocationPermission,
        manageOfflineMap,
        checkAndRequestNotificationPermission,
        setKeepScreenOn,
        checkIgnoreBatteryOptimizations,
        requestIgnoreBatteryOptimizations,
        searchAmapPoisWithKeywords,
        searchAmapPoisNearby,
        searchAmapGeocode,
        searchAmapRegeocode,
        amapLineDistance,
        amapCaculateArea,
        amapCoordFromOtherCoord,
        searchAmapDriveDistance,
        amapTTS,
        speakRu
    } from '@/uni_modules/pow-amapx'  //  导入插件内的方法

    // 当前位置（用于搜索）
    let currentLat = ref(39.91054)
    let currentLon = ref(116.398111)
    let resultText = ref('')
    let ttsText = ref('我是文字转语音,支持英语,hello')
    let keepScreenOn = ref(false)

    // 追加日志并添加时间戳（最新日志在最上方）
    const appendLog = (text : string) => {
        const now = new Date()
        const hours = now.getHours().toString().padStart(2, '0')
        const minutes = now.getMinutes().toString().padStart(2, '0')
        const seconds = now.getSeconds().toString().padStart(2, '0')
        const ms = now.getMilliseconds().toString().padStart(3, '0')
        const timestamp = `${hours}:${minutes}:${seconds}.${ms}`
        const logLine = `[${timestamp}] ${text}`
        if (resultText.value == '') {
            resultText.value = logLine
        } else {
            resultText.value = logLine + '\n' + resultText.value
        }
    }

    // #ifdef  APP-HARMONY
    import {
        getHarmonyAppId
    } from '@/uni_modules/pow-amapx'
    const reqHarmonyAppId = () => {
        // 获取鸿蒙AppId ， 高德后台要填这个字段
        let appid = getHarmonyAppId()
        console.log(`appid: ${appid}`)
        uni.showModal({
            title: '鸿蒙AppId',
            content: appid,
            confirmText: '复制到剪切板',
            cancelText: '取消',
            success: res => {
                if (res.confirm) {
                    uni.setClipboardData({
                        data: appid,
                        success: () => {
                            uni.showToast({
                                title: '已复制到剪切板'
                            })
                        }
                    })
                } else if (res.cancel) {
                    console.log('用户点击取消')
                }
            }
        })
    }
    // #endif

    const initAmapSDK = () => {
        /* setTencentKey
        接收4个参数，分别是
        1. ioskey
        2. 安卓key
        3. 鸿蒙key
        */

        setAmapKey(
            '2d3da96f1736d9403288c6ed95a5e85f',
            '72566fdc715020e355f355e4d9b7ceb1',
            'dc45c88c0fb6dbd5ffb54cd33475ab48')
    }

    onReady(() => {
        uni.setNavigationBarTitle({
            title: '高德demo'
        })
        initAmapSDK()
    })

    const jianchadingweiquanxian = () => {
        console.log('请求定位权限');
        checkAndRequestLocationPermission(res => {
            console.log(`定位权限状态：${JSON.stringify(res)}`)
            uni.showToast({
                title: `请求权限回调:${JSON.stringify(res)}`,
                icon: 'none'
            })
        })
    }

    const jianchahoutaidinweiquanxian = () => {
        console.log('检查和申请后台定位权限')
        checkAndRequestBackgroundLocationPermission(res => {
            console.log(`后台定位权限状态：${JSON.stringify(res)}`)
            uni.showToast({
                title: `后台定位权限:${JSON.stringify(res)}`,
                icon: 'none'
            })
        })
    }

    const jiazailixian = () => {
        // #ifdef APP-HARMONY
        uni.navigateTo({
            url: '/pages/index/map-offline-map-controller'
        })
        // #endif
        // #ifndef APP-HARMONY
        manageOfflineMap()
        // #endif
    }

    const shenqingtongzhilanquanxian = () => {
        checkAndRequestNotificationPermission(res => {
            console.log(`通知栏权限结果：${JSON.stringify(res)}`)
            uni.showToast({
                title: `通知栏权限:${JSON.stringify(res)}`,
                icon: 'none'
            })
        })
    }

    const jianchahuluedianchi = () => {
        checkIgnoreBatteryOptimizations(res => {
            console.log(`忽略电池优化状态：${JSON.stringify(res)}`)
            uni.showToast({
                title: `忽略电池优化:${JSON.stringify(res)}`,
                icon: 'none'
            })
        })
    }

    const shenqinghuluedianchi = () => {
        requestIgnoreBatteryOptimizations(res => {
            console.log(`申请忽略电池优化结果：${JSON.stringify(res)}`)
            uni.showToast({
                title: `申请忽略电池优化:${JSON.stringify(res)}`,
                icon: 'none'
            })
        })
    }

    const toggleKeepScreenOn = () => {
        keepScreenOn.value = !keepScreenOn.value
        setKeepScreenOn(keepScreenOn.value)
        uni.showToast({
            title: keepScreenOn.value ? '已开启屏幕常亮' : '已关闭屏幕常亮',
            icon: 'none'
        })
    }

    const dancidingwei = () => {
        uni.showLoading({
            title: '正在定位...'
        })
        appendLog('正在定位...')

        getAmapLocation({
            needAddress: true, //是否需要返回位置描述
            desiredAccuracy: 100, //期望的定位精度(单位米)，iOS直接传给desiredAccuracy；安卓根据值选择定位模式 10 以内是仅使用卫星定位，其他情况默认定位类型；鸿蒙传给maxAccuracy
        }, res => {
            uni.hideLoading()
            console.log(` 调用方收到定位结果：${JSON.stringify(res)} , typeof res :${typeof res}`)

            // 更新当前位置
            const lat = res['lat'] as Number | null
            const lon = res['lon'] as Number | null
            if (lat != null && lon != null) {
                currentLat.value = lat!
                currentLon.value = lon!
            }

            // 显示结果
            const address = res['address']
            const city = res['city']
            let text = `定位成功! 经度: ${lon}, 纬度: ${lat}`
            if (city != null) text += `, 城市: ${city}`
            if (address != null) text += `, 地址: ${address}`
            appendLog(text)

            uni.showToast({
                title: `定位成功`,
                icon: 'success'
            })
        })
    }
    const chixudingwei = () => {
        appendLog('开始持续定位...')
        const enableBg = true
        // #ifdef APP-ANDROID
        if (enableBg) {
            checkIgnoreBatteryOptimizations(res => {
                const enabled = res['enabled'] as boolean | null
                if (enabled == null || enabled == false) {
                    requestIgnoreBatteryOptimizations(() => {})
                }
            })
        }
        // #endif
        startAmapLocation({
            interval: 2000, // 定位间隔，单位毫秒，默认是2000
            enableBg: enableBg, // 是否开启后台定位, 默认false
            needAddress: true, //是否需要返回位置描述
            bgTitle: '定位中', // 后台定位时显示的标题
            desiredAccuracy: 100, //期望的定位精度(单位米)，iOS直接传给desiredAccuracy；安卓根据值选择定位模式 10 以内是仅使用卫星定位，其他情况默认定位类型；鸿蒙传给maxAccuracy
        }, res => {
            console.log(`持续定位结果：${JSON.stringify(res)}`)
            // 更新当前位置
            const lat = res['lat'] as Number | null
            const lon = res['lon'] as Number | null
            if (lat != null && lon != null) {
                currentLat.value = lat!
                currentLon.value = lon!
            }
            // 显示结果
            const address = res['address']
            let text = `持续定位: 经度: ${lon}, 纬度: ${lat}`
            if (address != null) text += `, 地址: ${address}`
            appendLog(text)
        })
    }
    const jieshuchixudingwei = () => {
        stopAmapLocation({}, res => {
            console.log(`停止持续定位结果：${JSON.stringify(res)}`)
            appendLog(`停止持续定位: ${JSON.stringify(res)}`)
            uni.showToast({
                title: `停止持续定位结果:${JSON.stringify(res)}`,
                icon: 'none'
            })
        })
    }

    // ========== 搜索功能 ==========
    const searchPoi = () => {
        appendLog('正在搜索POI...')
        searchAmapPoisWithKeywords('餐厅', '北京', (res : UTSJSONObject) => {
            console.log('POI搜索结果:', JSON.stringify(res))
            const errCode = res['errCode']
            if (errCode == 0) {
                const pois = res['pois'] as Array<UTSJSONObject> | null
                if (pois != null && pois.length > 0) {
                    appendLog(`POI搜索: 找到 ${pois.length} 个结果`)
                    for (let i = 0; i < Math.min(5, pois.length); i++) {
                        const poi = pois[i]
                        appendLog(`  ${i + 1}. ${poi['name']}`)
                    }
                } else {
                    appendLog('POI搜索: 未找到结果')
                }
            } else {
                appendLog(`POI搜索失败: ${errCode}`)
            }
        })
    }

    const searchNearby = () => {
        appendLog('正在搜索周边...')
        searchAmapPoisNearby(currentLat.value, currentLon.value, 1000, (res : UTSJSONObject) => {
            console.log('周边搜索结果:', JSON.stringify(res))
            const errCode = res['errCode']
            if (errCode == 0) {
                const pois = res['pois'] as Array<UTSJSONObject> | null
                if (pois != null && pois.length > 0) {
                    appendLog(`周边搜索: 找到 ${pois.length} 个POI`)
                    for (let i = 0; i < Math.min(5, pois.length); i++) {
                        const poi = pois[i]
                        appendLog(`  ${i + 1}. ${poi['name']}`)
                    }
                } else {
                    appendLog('周边搜索: 周边无POI')
                }
            } else {
                appendLog(`周边搜索失败: ${errCode}`)
            }
        })
    }

    const searchGeocode = () => {
        appendLog('正在进行地理编码...')
        searchAmapGeocode('天安门', '北京', (res : UTSJSONObject) => {
            console.log('地理编码结果:', JSON.stringify(res))
            const errCode = res['errCode']
            if (errCode == 0) {
                const addressList = res['addressList'] as Array<UTSJSONObject> | null
                if (addressList != null && addressList.length > 0) {
                    const addr = addressList[0]
                    const lat = addr['lat'] ?? ''
                    const lon = addr['lon'] ?? ''
                    const name = addr['name'] ?? ''
                    appendLog(`地理编码成功: ${name}, 经度: ${lon}, 纬度: ${lat}`)
                } else {
                    appendLog('地理编码: 未找到结果')
                }
            } else {
                appendLog(`地理编码失败: ${errCode}`)
            }
        })
    }

    const searchRegeocode = () => {
        appendLog('正在进行逆地理编码...')
        searchAmapRegeocode(currentLat.value, currentLon.value, (res : UTSJSONObject) => {
            console.log('逆地理编码结果:', JSON.stringify(res))
            const errCode = res['errCode']
            if (errCode == 0) {
                const address = res['address'] ?? ''
                const city = res['city'] ?? ''
                const district = res['district'] ?? ''
                appendLog(`逆地理编码成功: ${address}, 城市: ${city}, 区县: ${district}`)
            } else {
                appendLog(`逆地理编码失败: ${errCode}`)
            }
        })
    }

    // ========== 工具功能 ==========
    const calcDistance = () => {
        // 计算当前位置到天安门的距离
        const tiananmenLat = 39.9087
        const tiananmenLon = 116.3975
        const distance = amapLineDistance(currentLat.value, currentLon.value, tiananmenLat, tiananmenLon)
        appendLog(`当前位置到天安门的直线距离: ${distance.toFixed(2)} 米`)
    }

    const calcArea = () => {
        // 计算一个区域的面积（左上角到右下角）
        const lat1 = 39.92
        const lng1 = 116.38
        const lat2 = 39.90
        const lng2 = 116.42
        const area = amapCaculateArea(lat1, lng1, lat2, lng2)
        appendLog(`区域面积: ${area.toFixed(2)} 平方米`)
    }

    const convertCoord = () => {
        // GPS坐标转高德坐标示例
        const gpsLat = 39.9087
        const gpsLon = 116.3975
        const result = amapCoordFromOtherCoord('gps', gpsLat, gpsLon)
        const newLat = result['lat']
        const newLon = result['lon']
        appendLog(`GPS坐标转换: 原坐标: ${gpsLon}, ${gpsLat} -> 高德坐标: ${newLon}, ${newLat}`)
    }

    const calcDriveDistance = () => {
        // 驾车距离测量示例：当前位置到天安门
        const tiananmenLat = 39.9087
        const tiananmenLon = 116.3975
        appendLog('正在测量驾车距离...')

        searchAmapDriveDistance(currentLat.value, currentLon.value, tiananmenLat, tiananmenLon, (res : UTSJSONObject) => {
            console.log('驾车距离测量结果:', JSON.stringify(res))
            const errCode = res['errCode']
            if (errCode == 0) {
                const distance = res['distance'] as Number | null
                const duration = res['duration'] as Number | null
                let text = `驾车距离测量成功: 起点(${currentLon.value}, ${currentLat.value}) -> 终点(${tiananmenLon}, ${tiananmenLat})`
                if (distance != null) {
                    text += `, 距离: ${distance}米`
                }
                if (duration != null) {
                    const minutes = Math.floor(duration / 60)
                    const seconds = duration! % 60
                    text += `, 耗时: ${minutes}分${seconds}秒`
                }
                appendLog(text)
            } else {
                appendLog(`驾车距离测量失败: ${res['errMsg'] ?? errCode}`)
            }
        })
    }

    const goToMap = () => {
        uni.navigateTo({
            url: './map'
        })
    }

    const goToNavi = () => {
        uni.navigateTo({
            url: './navi'
        })
    }

    const goToCruise = () => {
        uni.navigateTo({
            url: './cruise'
        })
    }

    // ========== TTS 语音播报 ==========
    const inputTTSText = (e : InputEvent) => {
        ttsText.value = e.detail.value
    }

    const readTTS = () => {
        if (ttsText.value == '') {
            uni.showToast({
                title: '请输入播放文字',
                icon: 'error'
            })
            return
        }
        amapTTS(ttsText.value)
        appendLog(`正在播放: ${ttsText.value}`)

        // setTimeout(() => {
        //  //测试后台播报，延迟期间把 app退到后台
        //  amapTTS(ttsText.value)
        //  appendLog(`正在播放: ${ttsText.value}`)
        // }, 5000)
    }
</script>

<style lang="scss">
    .title {
        font-size: 18px;
        font-weight: bold;
        color: #000;
        margin-top: 20px;
        margin-left: 10px;
    }

    .container {
        display: flex;
        flex-direction: column;
        width: 750rpx;
        height: 100%;
    }

    .scroll-area {
        flex: 1;
    }

    .content {
        margin-top: 10px;
        display: flex;
        flex-direction: row;
        align-items: center;
        width: 100%;
        flex-wrap: wrap;
    }

    .btn {
        margin-left: 10px;
        margin-top: 5px;
    }

    .switch-label {
        margin-left: 10px;
    }

    .switch-item {
        margin-left: 10px;
    }

    .voice-input {
        flex: 1;
        border-radius: 4px;
        border-width: 1px;
        border-style: solid;
        border-color: #ccc;
        margin-top: 10px;
        margin-left: 10px;
        margin-right: 10px;
        padding: 8px;
        font-size: 14px;
    }

    .result-area {
        height: 100px;
        background-color: #f5f5f5;
        padding: 10px;
        overflow: hidden;
    }

    .result-text {
        font-size: 14px;
        color: #333;
        line-height: 1.6;
    }
</style>

地图功能

<template>
    <view class="container">
        <pow-amapx ref="mapRef" class="native-map" :center='mapCenter' :zoomLevel='mapZoomLevel' @load="onMapLoad"
            @mapLoaded="onMapLoaded" @mapRendered="onMapRendered" @markerClick="onMarkerClick"
            @markerDrag="onMarkerDrag" @cameraChange="onCameraChange"
            @cameraChangeStart="onCameraChangeStart" @massPointClick="onMassPointClick"
            @mapClick="onMapClick" @mapLongPress="onMapLongPress"></pow-amapx>

        <!-- 按钮区域可滚动 -->
        <scroll-view class="controls-area" scroll-y="true">
            <!-- 地图控制按钮 -->
            <view class="section">
                <text class="section-title">地图控制</text>
                <view class="btns">
                    <button class="btn" size="mini" type="primary" @click="moveCenter">移动中心点</button>
                    <button class="btn" size="mini" type="primary" @click="zoomIn">放大</button>
                    <button class="btn" size="mini" type="primary" @click="zoomOut">缩小</button>
                    <button class="btn" size="mini" type="primary" @click="getMapInfo">获取地图信息</button>
                    <button class="btn" size="mini" type="warn" @click="locateToCurrent">归位</button>
                </view>
                <view class="btns">
                    <button class="btn" size="mini" type="default" @click="setMapTypeNormal">普通地图</button>
                    <button class="btn" size="mini" type="default" @click="setMapTypeSatellite">卫星地图</button>
                    <button class="btn" size="mini" type="default" @click="setMapTypeNight">夜间地图</button>
                    <button class="btn" size="mini" type="default" @click="setMapTypeNavi">导航地图</button>
                </view>
                <view class="btns">
                    <button class="btn" size="mini" :type="trafficEnabled ? 'warn' : 'primary'"
                        @click="toggleTraffic">{{trafficEnabled ? '关闭路况' : '开启路况'}}</button>
                    <button class="btn" size="mini" :type="compassEnabled ? 'warn' : 'primary'"
                        @click="toggleCompass">{{compassEnabled ? '隐藏指南针' : '显示指南针'}}</button>
                    <button class="btn" size="mini" :type="scaleEnabled ? 'warn' : 'primary'"
                        @click="toggleScale">{{scaleEnabled ? '隐藏比例尺' : '显示比例尺'}}</button>
                </view>
                <view class="btns">
                    <button class="btn" size="mini" :type="zoomControlsEnabled ? 'warn' : 'primary'"
                        @click="toggleZoomControls">{{zoomControlsEnabled ? '隐藏缩放按钮' : '显示缩放按钮'}}</button>
                </view>
            </view>

            <!-- 绘制功能按钮 -->
            <view class="section">
                <text class="section-title">绘制功能</text>
                <view class="btns">
                    <button class="btn" size="mini" type="primary" @click="drawPolyline">画折线</button>
                    <button class="btn" size="mini" type="warn" @click="removePolyline">删除折线</button>
                    <button class="btn" size="mini" type="primary" @click="drawCircle">画圆形</button>
                    <button class="btn" size="mini" type="warn" @click="removeCircle">删除圆形</button>
                </view>
                <view class="btns">
                    <button class="btn" size="mini" type="primary" @click="drawPolygon">画多边形</button>
                    <button class="btn" size="mini" type="warn" @click="removePolygon">删除多边形</button>
                    <button class="btn" size="mini" type="primary" @click="drawTexturedPolyline">画纹理线</button>
                    <button class="btn" size="mini" type="default" @click="clearAllOverlays">清除所有</button>
                </view>
            </view>

            <!-- Marker 功能按钮 -->
            <view class="section">
                <text class="section-title">Marker 功能</text>
                <view class="btns">
                    <button class="btn" size="mini" type="primary" @click="addMarkers">添加Markers</button>
                    <button class="btn" size="mini" type="warn" @click="removeAllMarkers">删除所有Markers</button>
                    <button class="btn" size="mini" type="default" @click="zoomToFitMarkers">缩放包含所有Markers</button>
                </view>
                <view class="btns">
                    <button class="btn" size="mini" type="primary" @click="addMoveAnimation">点平滑移动</button>
                </view>
            </view>

            <!-- 手势控制按钮 -->
            <view class="section">
                <text class="section-title">手势控制</text>
                <view class="btns">
                    <button class="btn" size="mini" :type="zoomGestureEnabled ? 'warn' : 'primary'"
                        @click="toggleZoomGesture">{{zoomGestureEnabled ? '禁止缩放' : '允许缩放'}}</button>
                    <button class="btn" size="mini" :type="scrollGestureEnabled ? 'warn' : 'primary'"
                        @click="toggleScrollGesture">{{scrollGestureEnabled ? '禁止拖拽' : '允许拖拽'}}</button>
                </view>
                <view class="btns">
                    <button class="btn" size="mini" :type="rotateGestureEnabled ? 'warn' : 'primary'"
                        @click="toggleRotateGesture">{{rotateGestureEnabled ? '禁止旋转' : '允许旋转'}}</button>
                    <button class="btn" size="mini" :type="tiltGestureEnabled ? 'warn' : 'primary'"
                        @click="toggleTiltGesture">{{tiltGestureEnabled ? '禁止倾斜' : '允许倾斜'}}</button>
                </view>
            </view>

            <!-- 位置功能按钮 -->
            <view class="section">
                <text class="section-title">位置功能</text>
                <view class="btns">
                    <button class="btn" size="mini" :type="myLocationEnabled ? 'warn' : 'primary'"
                        @click="toggleMyLocation">{{myLocationEnabled ? '隐藏位置' : '显示位置'}}</button>
                    <button class="btn" size="mini" :type="followMode ? 'warn' : 'primary'"
                        @click="toggleFollowMode">{{followMode ? '取消跟随' : '跟随模式'}}</button>
                </view>
            </view>

            <!-- 路径规划按钮 -->
            <view class="section">
                <text class="section-title">路径规划</text>
                <view class="btns">
                    <button class="btn" size="mini" type="primary" @click="searchDriveRoute">驾车路径规划</button>
                    <button class="btn" size="mini" type="primary" @click="searchRideRoute">骑行路径规划</button>
                    <button class="btn" size="mini" type="primary" @click="searchWalkRoute">步行路径规划</button>
                    <button class="btn" size="mini" type="warn" @click="clearRoutePolyline">清除规划路线</button>
                </view>
            </view>

            <!-- 热力图按钮 -->
            <view class="section">
                <text class="section-title">热力图</text>
                <view class="btns">
                    <button class="btn" size="mini" type="primary" @click="showHeatMap">显示热力图</button>
                    <button class="btn" size="mini" type="warn" @click="hideHeatMap">隐藏热力图</button>
                </view>
            </view>

            <!-- 海量点图层按钮 -->
            <view class="section">
                <text class="section-title">海量点图层</text>
                <view class="btns">
                    <button class="btn" size="mini" type="primary" @click="showMassPoints">显示海量点</button>
                    <button class="btn" size="mini" type="warn" @click="hideMassPoints">隐藏海量点</button>
                </view>
            </view>

            <!-- 结果显示区域 -->
            <view class="result-area">
                <text class="result-text">{{resultText}}</text>
            </view>
        </scroll-view>
    </view>
</template>

<script>
    import lineTextureData from '../../static/linetexture.json'
    import { searchAmapDriveRoute, searchAmapRideRoute, searchAmapWalkRoute, getAmapLocation, getFileLocalPath } from '@/uni_modules/pow-amapx'

    export default {
        data() {
            return {
                mapCenter: '116.398111,39.91054',
                mapZoomLevel: 12,
                resultText: '点击按钮测试地图控制功能...',
                trafficEnabled: false,
                compassEnabled: false,
                scaleEnabled: true,
                zoomControlsEnabled: true,
                // 手势控制状态
                zoomGestureEnabled: true,
                scrollGestureEnabled: true,
                rotateGestureEnabled: true,
                tiltGestureEnabled: true,
                // 位置功能状态
                myLocationEnabled: false,
                followMode: false,
                // 热力图状态
                heatMapShown: false,
                // 海量点图层状态
                massPointsShown: false,
                // 路径规划起终点
                routeStartPoint: { lat: 39.909187, lng: 116.397455 },  // 天安门
                routeEndPoint: { lat: 39.984120, lng: 116.307484 },    // 北京大学
                routePolylineId: 'route_polyline_001',
                // 绘制数据
                polylineData: {
                    id: 'polyline001',
                    points: [
                        '116.362209,39.887487',
                        '116.422897,39.878002',
                        '116.372105,39.90651',
                        '116.428945,39.89663'
                    ],
                    width: 10,
                    color: '#FF0000',
                    isDottedLine: false
                },
                circleData: {
                    id: 'circle001',
                    lat: 39.91054,
                    lng: 116.398111,
                    radius: 1000,
                    lineWidth: 5,
                    strokeColor: '#FF0000',
                    fillColor: '#50FF0000'
                },
                polygonData: {
                    id: 'polygon001',
                    points: [
                        '116.404,39.915',
                        '116.408,39.917',
                        '116.412,39.919',
                        '116.412,39.921',
                        '116.410,39.923',
                        '116.406,39.923',
                        '116.404,39.921'
                    ],
                    lineWidth: 5,
                    strokeColor: '#0000FF',
                    fillColor: '#500000FF'
                },
                texturedPolylineData: {
                    id: 'texturedPolyline001',
                    points: [
                        '116.352209,39.897487',
                        '116.402897,39.888002',
                        '116.362105,39.91651',
                        '116.418945,39.90663',
                        '116.438945,39.92663'
                    ],
                    width: 20,
                    texture: lineTextureData.imageBase64
                },
                markersData: [
                    {
                        id: 'marker001',
                        lat: 39.909187,
                        lng: 116.397455,
                        title: '天安门',
                        subtitle: '北京市中心',
                        anchor: 'bottomCenter',
                        icon: 'https://s11.ax1x.com/2023/03/17/ppGtKhD.png', //支持网络图片和 base64 字符串，免费生成网络图片的地址 imgse.com
                        draggable: true,
                        rotate: 45,
                        iconWidth: 40,
                        iconHeight: 40,
                        callout: {
                            content: '天安门广场',
                            textColor: '#ffffff',
                            fontSize: 14,
                            borderRadius: 8,
                            borderColor: '#007AFF',
                            borderWidth: 1,
                            bgColor: '#007AFF',
                            padding: 8,
                            leftIcon: {
                                url: 'https://a.amap.com/jsapi_demos/static/demo-center/icons/dir-marker.png',
                                width: 16,
                                height: 16
                            }
                        }
                    },
                    {
                        id: 'marker002',
                        lat: 39.915,
                        lng: 116.404,
                        title: '故宫',
                        anchor: 'center',
                        callout: {
                            content: '故宫博物院',
                            textColor: '#333333',
                            fontSize: 12,
                            borderRadius: 5,
                            bgColor: '#FFD700',
                            padding: 5,
                            rightIcon: {
                                url: 'https://a.amap.com/jsapi_demos/static/demo-center/icons/dir-via-marker.png',
                                width: 16,
                                height: 16
                            }
                        }
                    },
                    {
                        id: 'marker003',
                        lat: 39.905,
                        lng: 116.410,
                        title: '圆角图标示例',
                        anchor: 'center',
                        icon: 'https://s41.ax1x.com/2026/01/05/pZaq0a9.jpg',
                        iconWidth: 50,
                        iconHeight: 50,
                        iconRadius: 25  // 设置圆角半径，值为图标宽高一半时显示为圆形
                    }
                ],
                moveAnimationPoints: [
                    '116.37,39.91',
                    '116.380298,39.907771',
                    '116.38,39.90',
                    '116.385298,39.907771',
                    '116.40,39.90',
                    '116.40772,39.909252',
                    '116.41,39.89',
                    '116.423857,39.889498',
                    '116.422312,39.899639',
                    '116.425273,39.902273'
                ],
                moveAnimationPolylineId: 'move_polyline_001',
                moveAnimationMarkerId: 'move_marker_001'
            }
        },
        methods: {
            // ========== 地图事件 ==========
            onMapLoad() {
                console.log('地图组件加载完成1')
                this.resultText = '地图组件加载完成'
            },
            onMapLoaded(e : UniNativeViewEvent) {
                console.log('地图已加载')
                this.resultText = '地图已加载'
            },
            onMapRendered(e : UniNativeViewEvent) {
                console.log('地图已渲染')
                this.resultText = '地图已渲染'
            },

            // ========== 地图控制 ==========
            moveCenter() {
                const lat = 39.9 + Math.random() * 0.1
                const lon = 116.3 + Math.random() * 0.2
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('updateCenter', `${lon},${lat}`)
                }
                this.resultText = `中心点移动到: ${lon.toFixed(6)}, ${lat.toFixed(6)}`
            },
            zoomIn() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    const zoom = mapRef.$callMethod('getZoomLevel') as number
                    const nextZoom = Math.min(20, zoom + 1)
                    mapRef.$callMethod('updateZoomLevel', nextZoom)
                    this.resultText = `缩放级别: ${nextZoom.toFixed(1)}`
                }
            },
            zoomOut() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    const zoom = mapRef.$callMethod('getZoomLevel') as number
                    const nextZoom = Math.max(3, zoom - 1)
                    mapRef.$callMethod('updateZoomLevel', nextZoom)
                    this.resultText = `缩放级别: ${nextZoom.toFixed(1)}`
                }
            },
            getMapInfo() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    const center = mapRef.$callMethod('getCenter') as UTSJSONObject
                    const zoom = mapRef.$callMethod('getZoomLevel') as number
                    const lat = center['lat'] as number
                    const lon = center['lon'] as number
                    this.resultText = `当前地图信息:\n中心点: ${lon.toFixed(6)}, ${lat.toFixed(6)}\n缩放级别: ${zoom.toFixed(1)}`
                }
            },
            setMapTypeNormal() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('setMapType', 1)
                    this.resultText = '已切换到普通地图'
                }
            },
            setMapTypeSatellite() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('setMapType', 2)
                    this.resultText = '已切换到卫星地图'
                }
            },
            setMapTypeNight() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('setMapType', 3)
                    this.resultText = '已切换到夜间地图'
                }
            },
            setMapTypeNavi() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('setMapType', 4)
                    this.resultText = '已切换到导航地图'
                }
            },
            toggleTraffic() {
                this.trafficEnabled = !this.trafficEnabled
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('showTraffic', this.trafficEnabled)
                    this.resultText = this.trafficEnabled ? '已开启实时路况' : '已关闭实时路况'
                }
            },
            toggleCompass() {
                this.compassEnabled = !this.compassEnabled
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('setCompassEnabled', this.compassEnabled)
                    this.resultText = this.compassEnabled ? '已显示指南针' : '已隐藏指南针'
                }
            },
            toggleScale() {
                this.scaleEnabled = !this.scaleEnabled
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('setScaleControlsEnabled', this.scaleEnabled)
                    this.resultText = this.scaleEnabled ? '已显示比例尺' : '已隐藏比例尺'
                }
            },
            toggleZoomControls() {
                this.zoomControlsEnabled = !this.zoomControlsEnabled
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('setZoomControlsEnabled', this.zoomControlsEnabled)
                    this.resultText = this.zoomControlsEnabled ? '已显示缩放按钮' : '已隐藏缩放按钮'
                }
            },

            // ========== 绘制功能 ==========
            drawPolyline() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('drawPolyline', JSON.stringify(this.polylineData))
                    this.resultText = '已绘制折线'
                }
            },
            removePolyline() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('removePolyline', '{"id":"polyline001"}')
                    this.resultText = '已删除折线'
                }
            },
            drawCircle() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('drawCircle', JSON.stringify(this.circleData))
                    this.resultText = '已绘制圆形'
                }
            },
            removeCircle() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('removeCircle', '{"id":"circle001"}')
                    this.resultText = '已删除圆形'
                }
            },
            drawPolygon() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('drawPolygon', JSON.stringify(this.polygonData))
                    this.resultText = '已绘制多边形'
                }
            },
            removePolygon() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('removePolygon', '{"id":"polygon001"}')
                    this.resultText = '已删除多边形'
                }
            },
            drawTexturedPolyline() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('drawTexturedPolyline', JSON.stringify(this.texturedPolylineData))
                    this.resultText = '已绘制纹理折线'
                }
            },
            clearAllOverlays() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('removeAllPolylines')
                    mapRef.$callMethod('removeAllCircles')
                    mapRef.$callMethod('removeAllPolygons')
                    this.resultText = '已清除所有覆盖物'
                }
            },

            // ========== Marker 功能 ==========
            addMarkers() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    // 获取本地图片路径的方法，从插件导入使用
                    getFileLocalPath(
                        '../../static/ball.png',  //资源在 hbx 中的相对路径
                        (localIconPath : string) => { //获取到的资源原生本地路径
                            const marker004 = {
                                id: 'marker004',
                                lat: 39.925,
                                lng: 116.395,
                                title: '本地图标示例',
                                anchor: 'center',
                                icon: localIconPath, //只能支持原生用的本地路径
                                iconWidth: 40,
                                iconHeight: 40
                            }
                            const markersDataWithLocal = [...this.markersData, marker004]
                            mapRef.$callMethod('addMarkers', JSON.stringify(markersDataWithLocal))
                            this.resultText = '已添加Markers（marker004使用本地图片）'
                        },
                        (err : any) => {
                            this.resultText = '获取本地图片路径失败: ' + JSON.stringify(err)
                        }
                    )
                }
            },
            removeAllMarkers() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('removeAllMarkers')
                    this.resultText = '已删除所有Markers'
                }
            },
            addMoveAnimation() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('updateZoomLevel', 13)
                    mapRef.$callMethod('drawPolyline', JSON.stringify({
                        id: this.moveAnimationPolylineId,
                        points: this.moveAnimationPoints,
                        width: 8,
                        color: '#FF0000',
                        isDottedLine: false
                    }))
                    getFileLocalPath(
                        '../../static/ball.png',
                        (localIconPath : string) => {
                            const options = {
                                id: this.moveAnimationMarkerId,
                                points: this.moveAnimationPoints,
                                duration: 10,
                                icon: localIconPath,
                                iconWidth: 40,
                                iconHeight: 40,
                                anchor: 'center',
                                removeMarkerWhenFinish: false
                            }
                            mapRef.$callMethod('addMoveAnimation', JSON.stringify(options))
                            this.resultText = '开始点平滑移动'
                        },
                        (err : any) => {
                            this.resultText = '获取本地图片路径失败: ' + JSON.stringify(err)
                        }
                    )
                }
            },
            onMarkerClick(e : UniNativeViewEvent) {
                console.log('Marker点击:', JSON.stringify(e.detail))
                this.resultText = 'Marker点击: ' + JSON.stringify(e.detail)
            },
            onMarkerDrag(e : UniNativeViewEvent) {
                console.log('Marker拖拽:', JSON.stringify(e.detail))
                this.resultText = 'Marker拖拽: ' + JSON.stringify(e.detail)
            },
            // ========== 海量点点击回调 ==========
            onMassPointClick(e : UniNativeViewEvent) {
                console.log('海量点点击:', JSON.stringify(e.detail))
                // 解析点击的海量点数据
                try {
                    const detailStr = e.detail['detail'] as string
                    if (detailStr != null) {
                        const detail = JSON.parseObject(detailStr)
                        if (detail != null) {
                            const lat = detail['lat'] as number
                            const lon = detail['lon'] as number
                            const name = detail['name'] as string | null
                            const deviceId = detail['deviceId'] as string | null
                            let text = `海量点点击:\n经度: ${lon?.toFixed(6)}\n纬度: ${lat?.toFixed(6)}`
                            if (name != null) text += `\n名称: ${name}`
                            if (deviceId != null) text += `\n设备ID: ${deviceId}`
                            this.resultText = text
                        }
                    }
                } catch (err) {
                    console.log('解析海量点点击数据失败:', err)
                    this.resultText = '海量点点击: ' + JSON.stringify(e.detail)
                }
            },
            // ========== 视角改变回调 ==========
            onCameraChange(e : UniNativeViewEvent) {
                console.log('视角改变完成:', JSON.stringify(e.detail))
                // 解析回调数据
                try {
                    const detailStr = e.detail['detail'] as string
                    if (detailStr != null) {
                        const detail = JSON.parseObject(detailStr)
                        if (detail != null) {
                            const centerLat = detail['centerLat'] as number
                            const centerLng = detail['centerLng'] as number
                            const zoomLevel = detail['zoomLevel'] as number
                            const rotation = detail['rotation'] as number
                            const pitch = detail['pitch'] as number
                            this.resultText = `视角改变完成:\n中心点: ${centerLng.toFixed(6)}, ${centerLat.toFixed(6)}\n缩放: ${zoomLevel.toFixed(1)}\n旋转: ${rotation.toFixed(1)}°\n俯仰: ${pitch.toFixed(1)}°`
                        }
                    }
                } catch (err) {
                    console.log('解析视角数据失败:', err)
                }
            },
            onCameraChangeStart(e : UniNativeViewEvent) {
                console.log('视角开始改变:', JSON.stringify(e.detail))
            },
            // ========== 地图点击回调 ==========
            onMapClick(e : UniNativeViewEvent) {
                console.log('地图点击:', JSON.stringify(e.detail))
                // 解析点击的坐标数据
                try {
                    const detailStr = e.detail['detail'] as string
                    if (detailStr != null) {
                        const detail = JSON.parseObject(detailStr)
                        if (detail != null) {
                            const latLng = detail['latLng'] as UTSJSONObject
                            if (latLng != null) {
                                const lat = latLng['lat'] as number
                                const lng = latLng['lng'] as number
                                this.resultText = `地图点击:\n经度: ${lng.toFixed(6)}\n纬度: ${lat.toFixed(6)}`
                            }
                        }
                    }
                } catch (err) {
                    console.log('解析地图点击数据失败:', err)
                    this.resultText = '地图点击: ' + JSON.stringify(e.detail)
                }
            },
            // ========== 地图长按回调 ==========
            onMapLongPress(e : UniNativeViewEvent) {
                console.log('地图长按:', JSON.stringify(e.detail))
                // 解析长按的坐标数据
                try {
                    const detailStr = e.detail['detail'] as string
                    if (detailStr != null) {
                        const detail = JSON.parseObject(detailStr)
                        if (detail != null) {
                            const latLng = detail['latLng'] as UTSJSONObject
                            if (latLng != null) {
                                const lat = latLng['lat'] as number
                                const lng = latLng['lng'] as number
                                this.resultText = `地图长按:\n经度: ${lng.toFixed(6)}\n纬度: ${lat.toFixed(6)}`
                            }
                        }
                    }
                } catch (err) {
                    console.log('解析地图长按数据失败:', err)
                    this.resultText = '地图长按: ' + JSON.stringify(e.detail)
                }
            },
            // ========== 缩放以包含 Markers ==========
            zoomToFitMarkers() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    // 构造参数，包含所有 marker 的坐标
                    const params = {
                        markers: this.markersData,  // 使用已添加的 markers 数据
                        paddingTop: 5,  // 上边距，单位像素
                        paddingBottom: 5,  // 下边距
                        paddingLeft: 5,  // 左边距
                        paddingRight: 5,  // 右边距
                        animated: true  // 是否使用动画
                    }
                    mapRef.$callMethod('setVisibleIncludeMarkers', JSON.stringify(params))
                    this.resultText = '已缩放地图以包含所有Markers'
                }
            },

            // ========== 手势控制 ==========
            toggleZoomGesture() {
                this.zoomGestureEnabled = !this.zoomGestureEnabled
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('setZoomGesturesEnabled', this.zoomGestureEnabled)
                    this.resultText = this.zoomGestureEnabled ? '已允许缩放手势' : '已禁止缩放手势'
                }
            },
            toggleScrollGesture() {
                this.scrollGestureEnabled = !this.scrollGestureEnabled
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('setScrollGesturesEnabled', this.scrollGestureEnabled)
                    this.resultText = this.scrollGestureEnabled ? '已允许拖拽手势' : '已禁止拖拽手势'
                }
            },
            toggleRotateGesture() {
                this.rotateGestureEnabled = !this.rotateGestureEnabled
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('setRotateGesturesEnabled', this.rotateGestureEnabled)
                    this.resultText = this.rotateGestureEnabled ? '已允许旋转手势' : '已禁止旋转手势'
                }
            },
            toggleTiltGesture() {
                this.tiltGestureEnabled = !this.tiltGestureEnabled
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('setTiltGesturesEnabled', this.tiltGestureEnabled)
                    this.resultText = this.tiltGestureEnabled ? '已允许倾斜手势' : '已禁止倾斜手势'
                }
            },

            // ========== 位置功能 ==========
            toggleMyLocation() {
                this.myLocationEnabled = !this.myLocationEnabled
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    const params = {
                        show: this.myLocationEnabled,
                        updatingMapCenter: this.followMode
                    }
                    mapRef.$callMethod('showMyLocation', JSON.stringify(params))
                    this.resultText = this.myLocationEnabled ? '已显示自身位置' : '已隐藏自身位置'
                }
            },
            toggleFollowMode() {
                this.followMode = !this.followMode
                // 如果位置已显示，更新跟随模式
                if (this.myLocationEnabled) {
                    const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                    if (mapRef != null) {
                        const params = {
                            show: true,
                            updatingMapCenter: this.followMode
                        }
                        mapRef.$callMethod('showMyLocation', JSON.stringify(params))
                    }
                }
                this.resultText = this.followMode ? '已开启跟随模式（地图跟随位置移动）' : '已关闭跟随模式'
            },

            // ========== 路径规划功能 ==========
            logRouteResult(result: UTSJSONObject, routeType: string) {
                const errCode = result['errCode'] as number
                const errMsg = result['errMsg'] as string
                const distance = result['distance'] as number
                const duration = result['duration'] as number
                const taxiCost = result['taxiCost'] as number
                const polyline = result['polyline'] as string[]
                const steps = result['steps'] as UTSJSONObject[]
                const summary = {
                    errCode: errCode,
                    errMsg: errMsg,
                    distance: distance,
                    duration: duration,
                    taxiCost: taxiCost,
                    polylineCount: polyline != null ? polyline.length : 0,
                    stepsCount: steps != null ? steps.length : 0
                }
                console.log(`${routeType}路径规划结果: ` + JSON.stringify(summary))
            },
            searchDriveRoute() {
                this.resultText = '正在搜索驾车路线...'
                let latStart = this.routeStartPoint['lat'] as number
                let lngStart = this.routeStartPoint['lng'] as number
                let latEnd = this.routeEndPoint['lat'] as number
                let lngEnd = this.routeEndPoint['lng'] as number
                searchAmapDriveRoute(
                    latStart,
                    lngStart,
                    latEnd,
                    lngEnd,
                    0,  // strategy: 0-速度优先
                    (result : UTSJSONObject) => {
                        this.logRouteResult(result, '驾车')
                        this.handleRouteResult(result, '驾车')
                    }
                )
            },
            searchRideRoute() {
                this.resultText = '正在搜索骑行路线...'
                let latStart = this.routeStartPoint['lat'] as number
                let lngStart = this.routeStartPoint['lng'] as number
                let latEnd = this.routeEndPoint['lat'] as number
                let lngEnd = this.routeEndPoint['lng'] as number
                searchAmapRideRoute(
                    latStart,
                    lngStart,
                    latEnd,
                    lngEnd,
                    (result : UTSJSONObject) => {
                        this.logRouteResult(result, '骑行')
                        this.handleRouteResult(result, '骑行')
                    }
                )
            },
            searchWalkRoute() {
                this.resultText = '正在搜索步行路线...'
                let latStart = this.routeStartPoint['lat'] as number
                let lngStart = this.routeStartPoint['lng'] as number
                let latEnd = this.routeEndPoint['lat'] as number
                let lngEnd = this.routeEndPoint['lng'] as number
                searchAmapWalkRoute(
                    latStart,
                    lngStart,
                    latEnd,
                    lngEnd,
                    (result : UTSJSONObject) => {
                        this.logRouteResult(result, '步行')
                        this.handleRouteResult(result, '步行')
                    }
                )
            },
            handleRouteResult(result : UTSJSONObject, routeType : string) {
                const errCode = result['errCode'] as number
                if (errCode !== 0) {
                    this.resultText = `${routeType}路径规划失败，错误码: ${errCode}`
                    return
                }

                const distance = result['distance'] as number
                const duration = result['duration'] as number
                const polyline = result['polyline'] as string[]
                const taxiCost = result['taxiCost'] as number

                // 显示规划结果信息
                let info = `${routeType}路径规划成功\n距离: ${(distance / 1000).toFixed(2)} 公里\n预计耗时: ${Math.ceil(duration / 60)} 分钟`
                if (taxiCost != null && taxiCost > 0) {
                    info += `\n预估打车费: ¥${taxiCost.toFixed(0)}`
                }
                info += `\n路线点数: ${polyline.length}`
                this.resultText = info

                // 在地图上绘制路线
                if (polyline.length > 0) {
                    this.drawRouteOnMap(polyline, routeType)
                }
            },
            drawRouteOnMap(polyline : string[], routeType : string) {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef == null) return

                // 根据路线类型设置不同颜色
                let color = '#3498db'  // 默认蓝色
                if (routeType === '驾车') {
                    color = '#e74c3c'  // 红色
                } else if (routeType === '骑行') {
                    color = '#2ecc71'  // 绿色
                } else if (routeType === '步行') {
                    color = '#9b59b6'  // 紫色
                }

                // 先删除之前的路线和起终点marker
                mapRef.$callMethod('removePolyline', JSON.stringify({ id: this.routePolylineId }))
                mapRef.$callMethod('removeSomeMarkers', JSON.stringify([{ id: 'route_start_marker' }, { id: 'route_end_marker' }]))

                // 绘制新路线
                const routeData = {
                    id: this.routePolylineId,
                    points: polyline,
                    width: 12,
                    color: color,
                    isDottedLine: false
                }
                mapRef.$callMethod('drawPolyline', JSON.stringify(routeData))

                // 添加起终点marker
                let latStart = this.routeStartPoint['lat'] as number
                let lngStart = this.routeStartPoint['lng'] as number
                let latEnd = this.routeEndPoint['lat'] as number
                let lngEnd = this.routeEndPoint['lng'] as number
                const routeMarkers = [
                    {
                        id: 'route_start_marker',
                        lat: latStart,
                        lng: lngStart,
                        title: '起点',
                        icon: 'https://webapi.amap.com/theme/v1.3/markers/n/start.png',
                        iconWidth: 19,
                        iconHeight: 31,
                        anchor: 'bottomCenter'
                    },
                    {
                        id: 'route_end_marker',
                        lat: latEnd,
                        lng: lngEnd,
                        title: '终点',
                        icon: 'https://webapi.amap.com/theme/v1.3/markers/n/end.png',
                        iconWidth: 19,
                        iconHeight: 31,
                        anchor: 'bottomCenter'
                    }
                ]
                mapRef.$callMethod('addMarkers', JSON.stringify(routeMarkers))

                // 延迟设置可视区域，确保 markers 已添加完成后再调整视野
                if (polyline.length >= 2) {
                    setTimeout(() => {
                        const mapRefInner = this.$refs['mapRef'] as ComponentPublicInstance
                        if (mapRefInner != null) {
                            const params = {
                                markers: routeMarkers,
                                paddingTop: 80,
                                paddingBottom: 80,
                                paddingLeft: 40,
                                paddingRight: 40,
                                animated: true
                            }
                            mapRefInner.$callMethod('setVisibleIncludeMarkers', JSON.stringify(params))
                        }
                    }, 300)
                }
            },
            clearRoutePolyline() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef != null) {
                    mapRef.$callMethod('removePolyline', JSON.stringify({ id: this.routePolylineId }))
                    mapRef.$callMethod('removeSomeMarkers', JSON.stringify([{ id: 'route_start_marker' }, { id: 'route_end_marker' }]))
                    this.resultText = '已清除规划路线'
                }
            },

            // ========== 热力图功能 ==========
            showHeatMap() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef == null) return
                if (this.heatMapShown) {
                    this.resultText = '热力图已显示'
                    return
                }

                // 生成热力图数据点
                const points : UTSJSONObject[] = []
                const centerX = 39.909187
                const centerY = 116.397455

                // 生成多个热力点
                for (let i = 0; i < 50; i++) {
                    const offsetX = (Math.random() - 0.5) * 0.1
                    const offsetY = (Math.random() - 0.5) * 0.1
                    const intensity = Math.random()
                    const point = new UTSJSONObject()
                    point.set('lat', centerX + offsetX)
                    point.set('lng', centerY + offsetY)
                    point.set('intensity', intensity)
                    points.push(point)
                }

                // 热力图渐变配置
                const gradient = new UTSJSONObject()
                gradient.set('colors', ['#0000FF', '#00FF00', '#FFFF00', '#FF0000'])  // 蓝→绿→黄→红
                gradient.set('startPoints', [0.1, 0.3, 0.6, 1.0])

                // 构建热力图参数
                const heatMapParams = new UTSJSONObject()
                heatMapParams.set('id', 'heatmap_001')
                heatMapParams.set('points', points)
                heatMapParams.set('gradient', gradient)

                mapRef.$callMethod('showHeatMap', JSON.stringify(heatMapParams))
                this.heatMapShown = true
                this.resultText = '已显示热力图（50个随机点）'
            },

            hideHeatMap() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef == null) return
                if (!this.heatMapShown) {
                    this.resultText = '热力图已隐藏'
                    return
                }
                mapRef.$callMethod('hideHeatMap', JSON.stringify({ id: 'heatmap_001' }))
                this.heatMapShown = false
                this.resultText = '已隐藏热力图'
            },

            // ========== 海量点图层功能 ==========
            showMassPoints() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef == null) return
                if (this.massPointsShown) {
                    this.resultText = '海量点已显示'
                    return
                }

                // 生成海量点数据点（带自定义数据，点击时返回）
                const points : UTSJSONObject[] = []
                const centerX = 39.909187
                const centerY = 116.397455

                // 生成多个海量点（模拟设备分布，每个点有自定义数据）
                for (let i = 0; i < 200; i++) {
                    const offsetX = (Math.random() - 0.5) * 0.15
                    const offsetY = (Math.random() - 0.5) * 0.15
                    const point = new UTSJSONObject()
                    point.set('lat', centerX + offsetX)
                    point.set('lon', centerY + offsetY)
                    // 添加自定义数据，点击时会在回调中返回
                    point.set('deviceId', `device_${i}`)
                    point.set('name', `设备${i + 1}`)
                    point.set('status', i % 3 === 0 ? 'online' : 'offline')
                    point.set('battery', Math.floor(Math.random() * 100))
                    points.push(point)
                }

                // 获取本地图片路径（和 marker004 一样的方式）
                getFileLocalPath(
                    '../../static/ball.png',
                    (localIconPath : string) => {
                        // 构建海量点图层参数
                        const massPointsParams = new UTSJSONObject()
                        massPointsParams.set('id', 'masspoints_001')
                        massPointsParams.set('points', points)
                        massPointsParams.set('zIndex', 1)
                        massPointsParams.set('visible', true)
                        // 设置图标（支持本地路径和 http 链接）
                        massPointsParams.set('icon', localIconPath)
                        massPointsParams.set('iconWidth', 20)
                        massPointsParams.set('iconHeight', 20)
                        massPointsParams.set('anchor', 'center')

                        mapRef.$callMethod('addMassPoints', JSON.stringify(massPointsParams))
                        this.massPointsShown = true
                        this.resultText = '已显示海量点图层（200个随机点，带自定义数据，点击测试回调）'
                    },
                    (err : any) => {
                        this.resultText = '获取本地图片路径失败: ' + JSON.stringify(err)
                    }
                )
            },

            hideMassPoints() {
                const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                if (mapRef == null) return
                if (!this.massPointsShown) {
                    this.resultText = '海量点已隐藏'
                    return
                }
                mapRef.$callMethod('hideMassPoints', JSON.stringify({ id: 'masspoints_001' }))
                this.massPointsShown = false
                this.resultText = '已隐藏海量点图层'
            },

            // ========== 归位功能 ==========
            locateToCurrent() {
                this.resultText = '正在获取当前位置...'
                getAmapLocation({
                    needAddress: true,
                    desiredAccuracy: 100,
                }, (res : UTSJSONObject) => {
                    const lat = res['lat'] as number | null
                    const lon = res['lon'] as number | null
                    if (lat != null && lon != null) {
                        // 调用地图组件的 updateCenter 方法设置中心点
                        const mapRef = this.$refs['mapRef'] as ComponentPublicInstance
                        if (mapRef != null) {
                            mapRef.$callMethod('updateCenter', `${lon},${lat}`)
                        }
                        const address = res['address'] as string | null
                        const city = res['city'] as string | null
                        let text = `已归位到当前位置: ${lon.toFixed(6)}, ${lat.toFixed(6)}`
                        if (city != null) text += `\n城市: ${city}`
                        if (address != null) text += `\n地址: ${address}`
                        this.resultText = text
                    } else {
                        this.resultText = '定位失败，请检查定位权限'
                    }
                })
            }
        }
    }
</script>

<style>
    .section {
        padding: 10rpx 20rpx;
        background-color: #f8f8f8;
        margin-top: 10rpx;
    }

    .section-title {
        font-size: 28rpx;
        color: #666;
        margin-bottom: 10rpx;
    }

    .btn {
        margin-left: 10rpx;
        margin-top: 10rpx;
    }

    .btns {
        width: 100%;
        display: flex;
        flex-direction: row;
        flex-wrap: wrap;
        padding-top: 10rpx;
        padding-bottom: 10rpx;
    }

    .container {
        display: flex;
        flex-direction: column;
        height: 100%;
        width: 100%;
    }

    .native-map {
        height: 750rpx;
        width: 750rpx;
    }

    .controls-area {
        flex: 1;
    }

    .result-area {
        flex: 1;
        background-color: #fff;
        padding: 20rpx;
        margin: 10rpx;
        border-radius: 10rpx;
        border: 1px solid #eee;
    }

    .result-text {
        font-size: 26rpx;
        color: #333;
        line-height: 1.6;
    }
</style>

导航组件方法说明

路线规划参数说明

{
  "startLat": 39.909187,    // 起点纬度
  "startLng": 116.397455,   // 起点经度
  "endLat": 39.917839,      // 终点纬度
  "endLng": 116.397029,     // 终点经度
  "naviType": "drive",      // 导航类型: drive/walk/ride/truck
  "naviMode": "gps",        // 导航模式: gps/emulator
  "strategy": 0,            // 路线策略(可选)
  // 货车专用参数(仅 naviType 为 truck 时有效)
  "truckSize": 2,           // 车型: 1-微型, 2-轻型, 3-中型, 4-重型
  "truckHeight": 2.5,       // 车高(米)
  "truckWidth": 2.0,        // 车宽(米)
  "truckLoad": 5.0,         // 载重(吨)
  "truckWeight": 10.0,      // 车重(吨)
  "truckAxis": 2            // 轴数
}

导航回调事件说明

平台差异说明

注意：鸿蒙端 AMap SDK 1.0 版本暂不支持步行和骑行导航，选择这两种类型时会自动切换为驾车导航并给出提示。
