更新记录

1.0.0（2026-08-30）

• 发布插件

平台兼容性

uni-app(5.24)

uni-app x(5.24)

温馨提示 如何调用插件

import {
  init,
  startScreenStream,
  stopScreenStream,
  isStreaming
} from "@/uni_modules/yuange-screenrtmp"

开始录屏推流

startScreenStream({
  rtmpUrl: 'rtmp://192.168.1.100:1935/live/livestream', // 必填
  width: 1280,            // 可选，默认 1280
  height: 720,            // 可选，默认 720
  videoBitrate: 2000000,  // 可选，视频码率，默认 2Mbps
  fps: 30,                // 可选，默认 30
  iframeInterval: 2,      // 可选，I帧间隔秒，默认 2
  audioEnabled: true,     // 可选，是否采集麦克风，默认 true
  audioBitrate: 128000,   // 可选，默认 128kbps
  audioSampleRate: 44100, // 可选，默认 44100
  audioChannels: 1,       // 可选，默认单声道
  notificationTitle: '屏幕推流',     // 可选，通知栏标题
  notificationContent: '正在录屏推流' // 可选，通知栏内容
}, {
  onCallback(res) {
    console.log(JSON.stringify(res));
    // 成功: {code:0, msg:'推流已启动', data:{rtmpUrl, width, height, audioEnabled}}
    // 失败: {code:-4, msg:'屏幕录制权限被拒绝', data:{}} 等
  }
});

停止推流

stopScreenStream({
  onCallback(res) {
    console.log(JSON.stringify(res));
    // {code:0, msg:'推流已停止', data:{}}
  }
});

查询推流状态

isStreaming({
  onCallback(res) {
    console.log(JSON.stringify(res));
    // {code:0, msg:'推流中', data:{streaming, connected, durationMs, bytesSent, frameCount, fps}}
  }
});

错误码

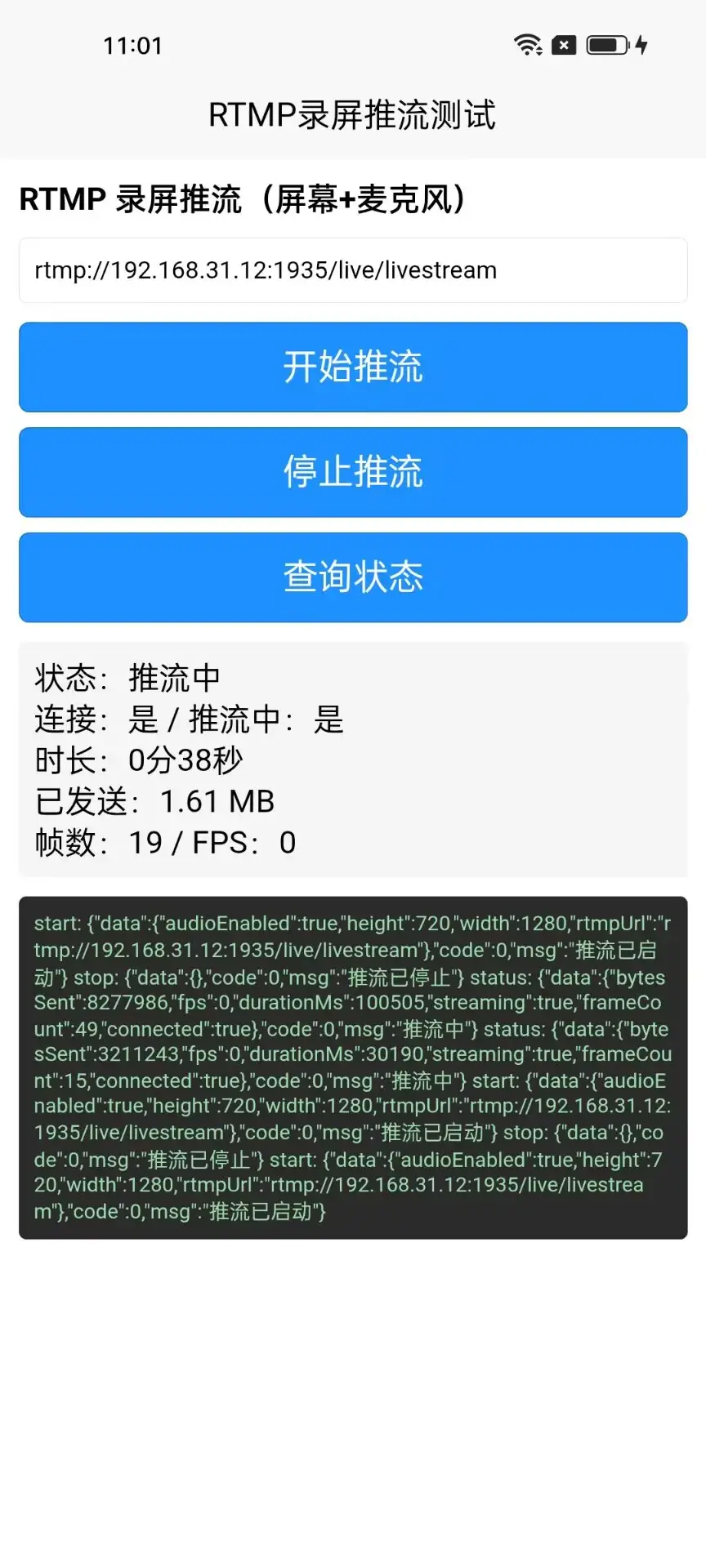

完整Demo示例

<template>
  <view class="page">
    <view class="title">RTMP 录屏推流（屏幕+麦克风）</view>
    <input class="input" v-model="rtmpUrl" placeholder="请输入 rtmp:// 推流地址" />
    <button @click="start_" class="button">开始推流</button>
    <button @click="stop_" class="button">停止推流</button>
    <button @click="query_" class="button">查询状态</button>
    <view class="stats">
      <text>状态：{{ statusText }}</text>
      <text>连接：{{ connectedText }} / 推流中：{{ streamingText }}</text>
      <text>时长：{{ durationText }}</text>
      <text>已发送：{{ sizeText }}</text>
      <text>帧数：{{ frameCountText }} / FPS：{{ fpsText }}</text>
    </view>
    <view class="log">{{ log }}</view>
  </view>
</template>

<script>
  import {
    startScreenStream,
    stopScreenStream,
    isStreaming
  } from "@/uni_modules/yuange-screenrtmp"

  export default {
    data() {
      return {
        rtmpUrl: 'rtmp://192.168.31.12:1935/live/livestream',
        log: '',
        stats: null,
        timer: null
      }
    },
    computed: {
      statusText() {
        if (!this.stats) return '未查询';
        return this.stats.msg;
      },
      streamingText() {
        return (this.stats && this.stats.data && this.stats.data.streaming) ? '是' : '否';
      },
      connectedText() {
        return (this.stats && this.stats.data && this.stats.data.connected) ? '是' : '否';
      },
      durationText() {
        const ms = (this.stats && this.stats.data && this.stats.data.durationMs) || 0;
        const s = Math.floor(ms / 1000);
        const mm = Math.floor(s / 60);
        const ss = s % 60;
        return mm + '分' + ss + '秒';
      },
      sizeText() {
        const bytes = (this.stats && this.stats.data && this.stats.data.bytesSent) || 0;
        return (bytes / 1024 / 1024).toFixed(2) + ' MB';
      },
      frameCountText() {
        return (this.stats && this.stats.data && this.stats.data.frameCount) || 0;
      },
      fpsText() {
        return (this.stats && this.stats.data && this.stats.data.fps) || 0;
      }
    },
    onUnload() {
      this.stopPolling();
    },
    methods: {
      appendLog(msg) {
        this.log = msg + '\n' + this.log;
      },
      start_() {
        let that = this;
        startScreenStream({
          rtmpUrl: that.rtmpUrl,
          width: 1280,
          height: 720,
          videoBitrate: 2000000,
          fps: 30,
          iframeInterval: 2,
          audioEnabled: true,
          audioBitrate: 128000,
          audioSampleRate: 44100,
          audioChannels: 1,
          notificationTitle: '屏幕推流',
          notificationContent: '正在录屏推流'
        }, {
          onCallback(res) {
            that.appendLog('start: ' + JSON.stringify(res));
            if (res.code == 0) {
              that.startPolling();
            }
          }
        });
      },
      stop_() {
        let that = this;
        stopScreenStream({
          onCallback(res) {
            that.appendLog('stop: ' + JSON.stringify(res));
            that.stopPolling();
          }
        });
      },
      query_() {
        let that = this;
        isStreaming({
          onCallback(res) {
            that.appendLog('status: ' + JSON.stringify(res));
            that.stats = res;
          }
        });
      },
      startPolling() {
        let that = this;
        this.stopPolling();
        this.timer = setInterval(() => {
          isStreaming({
            onCallback(res) {
              that.stats = res;
              if (!res.data || !res.data.streaming) {
                that.stopPolling();
              }
            }
          });
        }, 2000);
      },
      stopPolling() {
        if (this.timer) {
          clearInterval(this.timer);
          this.timer = null;
        }
      }
    }
  }
</script>

<style>
  .page {
    padding: 20rpx;
  }
  .title {
    font-size: 34rpx;
    font-weight: bold;
    margin-bottom: 20rpx;
  }
  .input {
    border: 1rpx solid #ddd;
    border-radius: 8rpx;
    padding: 16rpx;
    margin-bottom: 20rpx;
    font-size: 26rpx;
  }
  .button {
    background-color: dodgerblue;
    color: white;
    margin-bottom: 16rpx;
  }
  .stats {
    margin-top: 20rpx;
    padding: 16rpx;
    background-color: #f5f5f5;
    border-radius: 8rpx;
    display: flex;
    flex-direction: column;
  }
  .log {
    margin-top: 20rpx;
    padding: 16rpx;
    background-color: #2b2b2b;
    color: #9cdca9;
    font-size: 22rpx;
    min-height: 200rpx;
    border-radius: 8rpx;
    word-break: break-all;
  }
</style>
