更新记录

1.2.1(2020-12-05)

  • 修复 用户管理 uni-forms 校验 switch 类型错误 bug
  • 登录页 token 失效后,重新登录 navigateTo -> redirect
  • 菜单管理增加提示

1.2.0(2020-12-04)

  • uni-id-roles 表内置 admin 角色,旧版 admin 升级到 admin1.2.0+ 版本需做向下兼容,在 uni-id-roles 表中添加如下一条记录:
    [{
    "role_id": "admin",
    "role_name": "超级管理员",
    "permission": [],
    "comment": "超级管理员拥有所有权限",
    "create_date": 0
    }]
  • 更新内置组件 uni-forms、uni-forms-item
  • 新增内置组件 uni-easyinput、uni-data-checkbox、uni-load-more
查看更多

云函数类插件通用教程

使用云函数类插件的前提是:使用HBuilderX 2.9+


uniCloud admin 基础框架

什么是 uniCloud admin

uniCloud admin 基础框架,是基于 uni-app 和 uniCloud 的应用后台管理框架。HBuilderX 2.9.5+ 支持,请更新到最新版本使用。

  • 它使用 uni-app 的宽屏适配,可自动适配 PC 宽屏和手机各端。了解宽屏适配
  • 它基于 uniCloud,是 serverless 的云开发。了解uniCloud
  • 它基于 uni-id,admin 框架使用的是 uni-id 的用户账户、权限系统。了解uni-id

内置的功能

  • 管理员账户初始化、登录、修改密码
  • 顶部 topWindow 的设置:比如 logo 更换、右上角部分链接更换。详见项目根目录的admin.config.js文件
  • 左侧 leftWindow 的菜单设置:菜单包括两类,一类是动态菜单,具备业务和权限功能;另一类是静态菜单,不会根据登录用户角色变化
  • 开发模式下的 debug 功能,帮助开发者及时发现报错和搜索错误信息,可在admin.config.js文件中配置

uniCloud admin 是一个框架,具体业务需要开发者自己开发或从插件市场导入相关插件

支持响应式布局

uniCloud admin 同时支持 PC 端 和移动端。

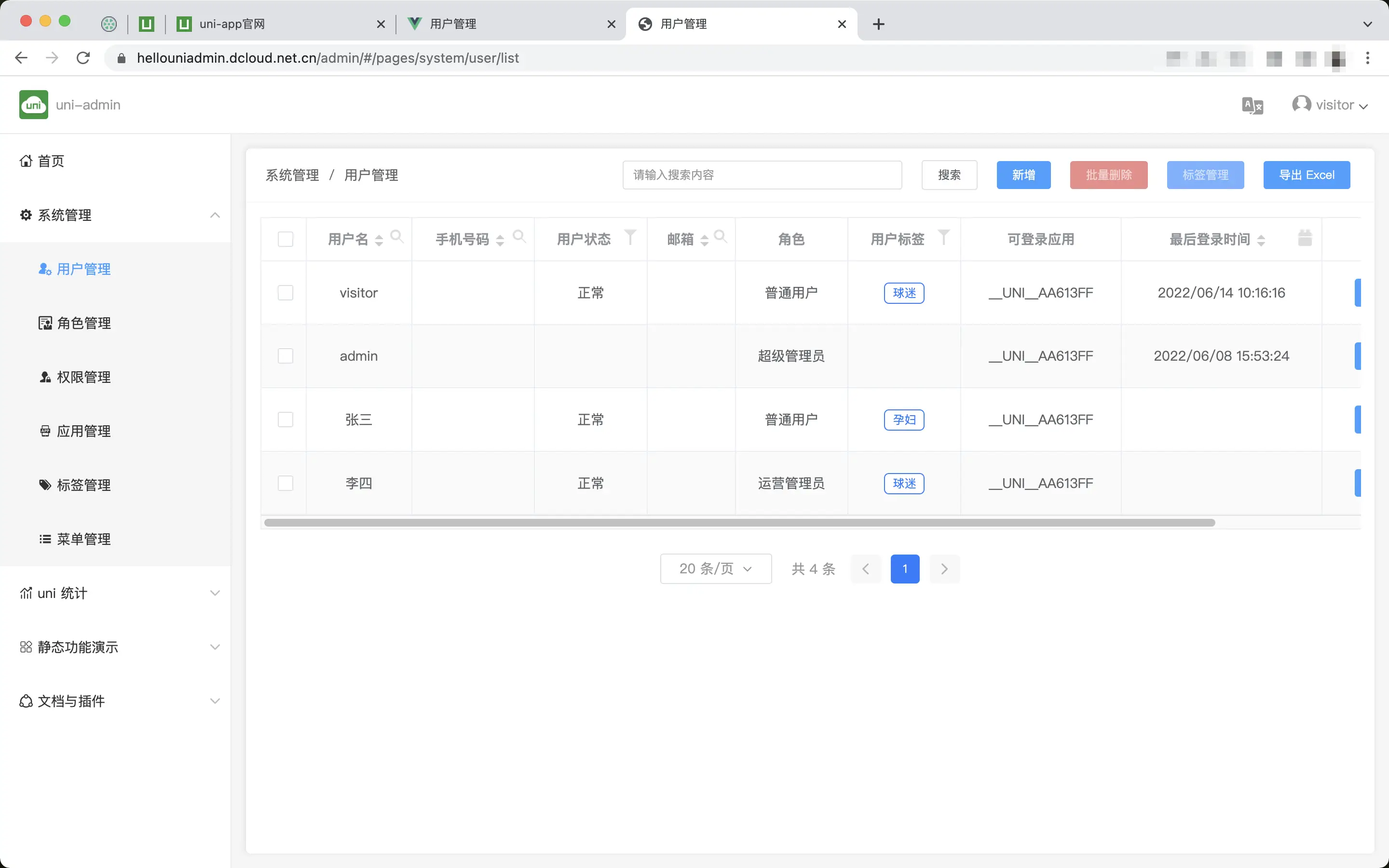

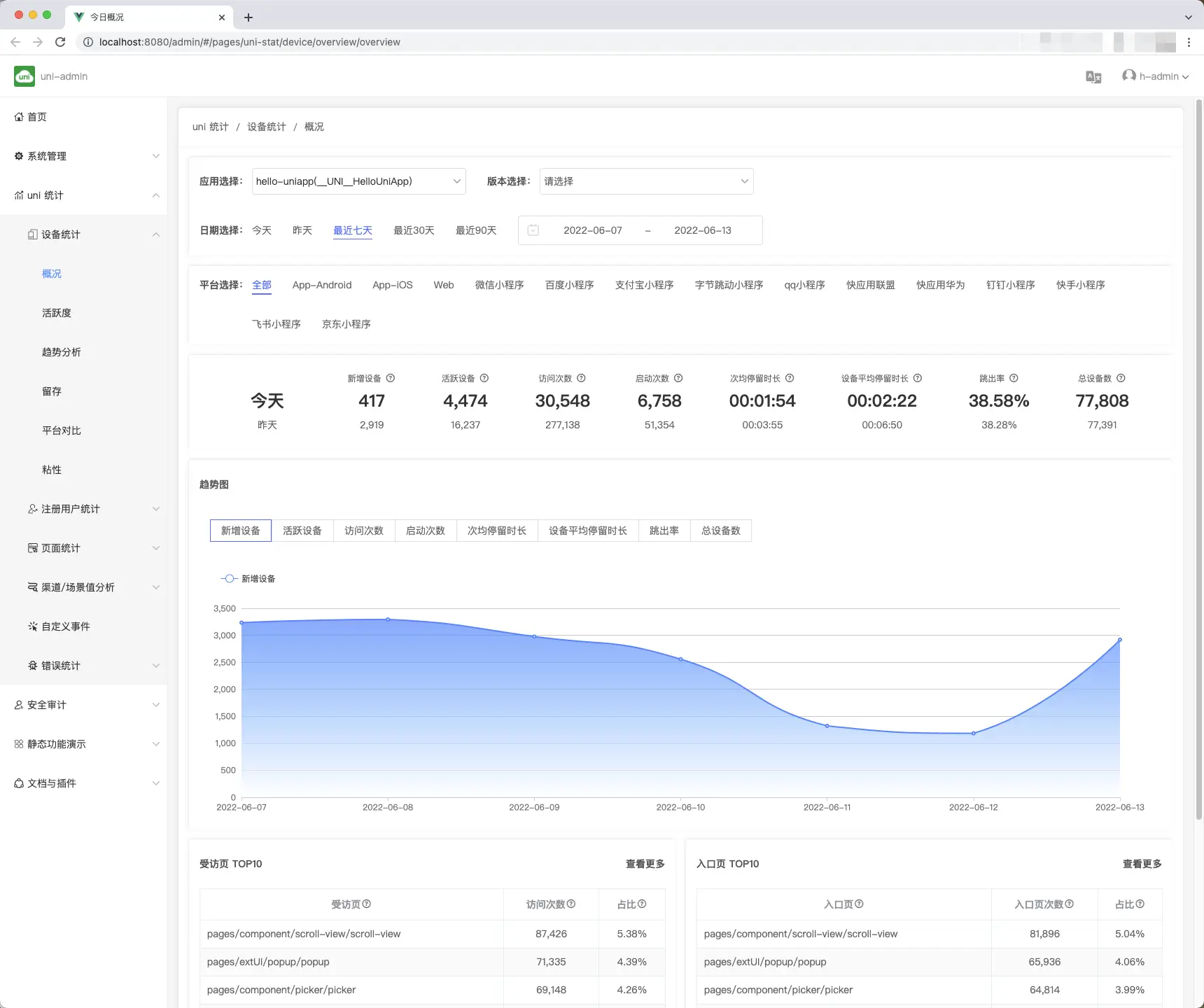

PC 端如下图:

pc

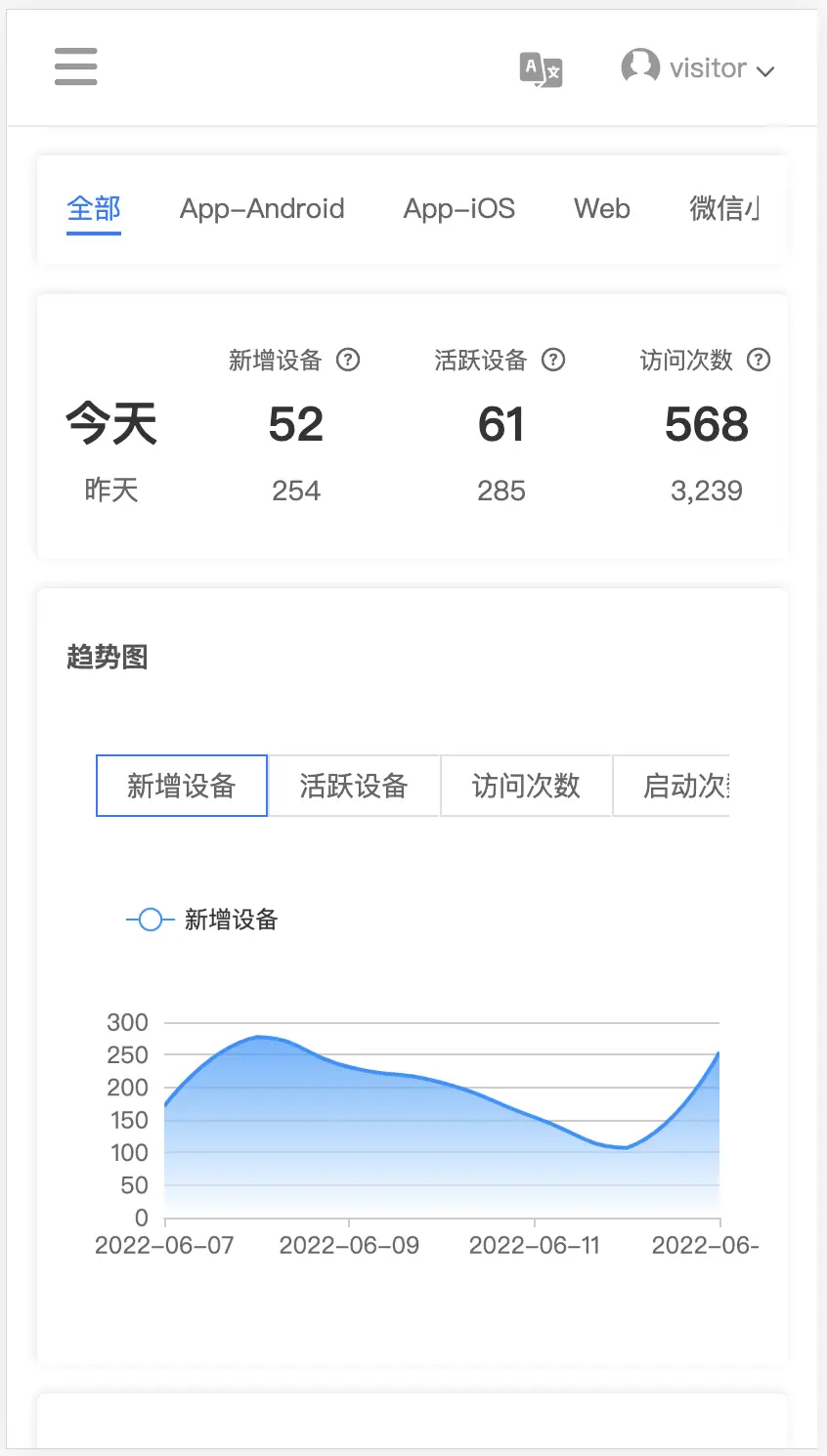

移动端如下图:

使用

创建

HBuilderX 2.9.5+版本新建 uni-app 项目,选择 uniCloud admin 项目模板,如下图

download-admin

创建完成后,可以跟随云服务空间初始化向导初始化项目,创建并绑定云服务空间

download-admin

运行

  1. 进入 admin 项目
  2. 在/cloudfunctions-aliyun/common/uni-id/config.json 文件中填写 passwordSecret 字段 (用于加密密码入库的密钥) 和 tokenSecret 字段 (为生成token需要的密钥)
  3. 右键 cloudfuntions 运行云服务空间初始化向导(如已创建并绑定云服务空间,则跳过此步)
  4. 点击工具栏的运行 -> 运行到浏览器
  5. 登录页面底部进入创建管理员页面(仅允许注册一次管理员账号)

注意:手机端报 request:fail,需要去云服务空间的跨域配置配置跨域域名,需带端口

目录结构

├── cloudfunctions              # 云函数
├── common
│   │── uni.css                 # 公共样式
│   └── uni-icons.css           # icon样式
├── components                  # 自定义组件
├── js_sdk                      # js sdk
├── pages                       # 页面
│   │── index                   # 首页
│   └── login                   # 登录页
├── static
├── store                       # vuex
├── windows
│   │── component               # 项目中使用的组件
│   │── leftWindow.vue          # 左侧窗口(菜单栏)
│   └── topWindow.vue           # 顶部窗口(导航栏)
├── admin.config.js             # 系统配置(配置导航,菜单等)
├── App.vue
├── main.js
├── mainfest.json
├── pages.json
├── postcss.config.js           # postcss 配置(浏览器兼容性)
└── uni.scss

登录页

首次使用,可以通过登录页面底部链接创建一个超级管理员(仅允许创建一次),该接口会判断系统里如果有admin角色的用户,就不再允许添加新的超级管理员。

注意:注册完毕后,建议从登录页面移除该链接

login

分栏窗体介绍

登录后我们会看到如下窗体, 窗体分为三个部分,topWindow 顶部窗口(导航栏),leftwindow 左侧窗口(菜单栏),右侧的内容主窗体

index

顶部窗口(导航栏)

顶部窗口默认在左侧展示系统Logo、右侧显示导航链接,效果如上图。展示内容可通过项目根目录下的admin.config.js文件进行配置,如下为示例:

# admin.config.js
export default {
  navBar: {// 顶部导航
    logo:"https://www.example.com/logo.png",//左侧 Logo
    links: [ // 右侧链接
      {
        text: "Admin框架文档",
        url: "https://uniapp.dcloud.net.cn/uniCloud/admin",
      },
      {
        text: "浏览更多Admin插件",
        url: "https://ext.dcloud.net.cn/?cat1=7&cat2=74",
      }
    ],
  },
};

顶部导航栏的样式,可通过项目根目录下的uni.scss进行自定义,如下:

# uni.scss
$top-window-bg-color: #fff; /* 背景色 */
$top-window-text-color: #999; /* 文字颜色 */

左侧窗口(菜单栏)

左侧窗口内主要是菜单,菜单包含静态菜单和动态菜单,支持无限层级嵌套,但建议层级不要超过三级

  • 静态菜单: 所有登录用户角色都能看到
  • 动态菜单: 根据角色的权限自动生成

    用户登录时,会根据用户的 角色 去查找其拥有的 权限 ,再根据 权限 去查找对应的 菜单

管理静态菜单

通过 admin.config.js 配置侧边栏内容,所有用户都能看到静态菜单。

export default {
  // 侧边栏
  sideBar: {
    // 配置静态菜单列表(放置在用户被授权的菜单列表下边)
    staticMenu: [
      {
        menu_id: "demo",
        name: "静态功能演示",
        icon: "uni-icons-list",
        children: [
          {
            menu_id: "icons",
            name: "图标",
            url: "/pages/demo/icons/icons",
          },
          {
            menu_id: "table",
            name: "表格",
            url: "/pages/demo/table/table",
          }
        ]
      },
    ],
  },
};
管理动态菜单

在云后台数据库的 opendb-admin-menus 表中管理菜单, 对菜单增删改查。如下图:

add-menu

菜单字段解释:

字段 类型 必填 描述
menu_id Object ID 菜单 Id
name String 菜单文字
icon String 菜单图标
url String 菜单对应的页面链接(只有没有子菜单的菜单项可以配置)
sort Integer 在同级菜单中的排序,数组越大越靠后
parent_id String 父级菜单 Id
permission Array 菜单权限(只有没有子菜单的菜单项可以配置)
enable Boolean 菜单状态:false 禁用 true 启用
create_date Timestamp 创建时间

添加菜单记录需要注意:

  • 无子菜单,则需 url 字段不能为空,该菜单才能在页面显示
  • 有子菜单,则需至少一个子菜单的 url 字段不能为空,该菜单才能在页面显示

例如,如需增加如下菜单:

订单管理                  # 父菜单
└── 手机                 # 子菜单

step 1:添加一条父菜单记录

菜单的 parent_id 字段为空, 即为一级菜单

{
  "menu_id": "order",
  "name": "订单管理",
  "icon": "uni-icons-cart-filled",
  "url": "",
  "sort": 2,
  "parent_id": "",
  "permission": [],
  "enable": true,
  "create_date": "1602662469396"
}

step 2:添加一条子菜单记录

将子菜单的 parent_id 指向父菜单的 menu_id即可,孙菜单就是将子菜单的 menu_id 当做父菜单

{
  "menu_id": "phone",
  "name": "手机",
  "icon": "uni-icons-phone",
  "url": "pages/phone",
  "sort": 3,
  "parent_id": "order",
  "permission": [],
  "enable": true,
  "create_date": "1602662469492"
}
侧边栏样式管理

通过 uni.scss 配置侧边栏样式

调整菜单颜色时,只需设置菜单背景色 $menu-bg-color,自行搭配文字前景色即可

$left-window-bg-color: #fff; /* 左侧窗口背景色 */
$menu-bg-color: #fff; /* 一级菜单背景色 */
$sub-menu-bg-color: darken($menu-bg-color, 8%); /* 二级以下菜单背景色 */
$menu-bg-color-hover: darken($menu-bg-color, 15%); /* 菜单 hover 背景颜色 */
$menu-text-color: #333; /* 菜单前景色 */
$menu-text-color-actived: #409eff; /* 菜单激活前景色 */

右侧窗口(内容主窗体)

右侧窗口是内容主窗体,和 uni-app 保持一致,用户登录后看到的第一个页面,默认是 pages 数组中第一项表示应用启动页。

如果想将自己开发的页面调到登录后首页,可在 page.json 调整。

icon 图标

admin 框架内置了一套icon图标,在静态功能演示-图标菜单中,点击图标即可复制图标的class定义,或者直接到common/uni-icons.css中查看定义,然后以如下方式使用:

<view class="uni-icons-gear"></view>

当然,你也可以使用三方icon库。以使用 elementUI 的图标为例,在 app.vue 中导入图标库的样式文件:

<style>
  /* 注意此处仅为 icon 使用示例,建议引入纯净图标库,避免增加不必要的 css */
  @import 'https://unpkg.com/element-ui/lib/theme-chalk/index.css';
</style>

在标签上使用图标的 class 名称,即:

<view class="el-icon-s-tools"></view>

用户-角色-权限

uniCloud admin 框架基于 uni-id,复用 uni-id 的用户、角色、权限系统,详见uni-id

需要注意的是,admin框架的动态菜单同样依赖uni-id的权限表(uni-id-permissions)。

菜单表(opendb-admin-menus)定义如下:

字段 类型 必填 描述
menu_id Object ID 菜单 Id
name String 菜单文字
icon String 菜单图标
url String 菜单对应的页面链接(只有没有子菜单的菜单项可以配置)
sort Integer 在同级菜单中的排序,数组越大越靠后
parent_id String 父级菜单 Id
permission Array 菜单权限(只有没有子菜单的菜单项可以配置)
enable Boolean 菜单状态:false 禁用 true 启用
create_date Timestamp 创建时间

admin 提供了两个内置方法,方便在页面中鉴定登录用户权限和角色:

方法 作用 入参 返回值
$hasPermission 鉴定登录用户是否具有某权限 String Boolean
$hasRole 鉴定登录用户是否具有某角色 String Boolean
<template>
  <view>
    <!-- 包含 user/add 权限的用户可以看到新增按钮 -->
    <button v-if="$hasPermission('USER_ADD')">新增</button>
    <!-- 包含 admin 角色的用户可以看到删除按钮 -->
    <button v-if="$hasRole('admin')">删除</button>
  </view>
</template>

新增页面

新增页面可以自己开发页面,也可以从插件市场下载插件。页面如需添加菜单,参见上文的菜单管理

开发页面不局限开发方式:

  • 可以新增普通的页面,在前端 callfunction,后台搭配云函数操作
  • 可以使用 uni-clientdb,在前端直接操作数据库,后台配置 db schema 进行权限和格式校验
  • 可以使用云函数单文件路由,在项目中默认包含了一个uni-cloud-router 的单文件路由,也可以使用插件市场的其他单文件路由

注意:在搭配云函数操作,controller 下的文件夹和文件,不要命名相同,例如:app/room 这个写法目前分辨不了 app 是文件 app.js,还是文件夹 app

自己开发页面

admin 中开发页面,和 uni-app 开发 vue 页面是一致的。

从插件市场下载插件,并注册到 admin 菜单

uniCloud admin 管理项目-权限管理插件为例

使用步骤:

  1. 插件市场导入插件
  2. 在 HBuilder X 2.9.5 中选择添加插件的项目
  3. 覆盖项目的 db_init.json 文件, 点击“确定覆盖”
  4. 在 db_init.json 文件上右键,点击“初始化云数据库”
  5. 刷新 admin 即可在菜单栏看到新增的菜单

---------------------------------- 分割线 ----------------------------------------

插件开发

我们不仅是插件的使用者,也可以是插件的开发者,那么如何开发一款插件呢?参考 DCloud 插件开发指南汇总 及其中的 admin 插件部分.

使用三方组件库

uniCloud admin 支持所有三方的 Vue UI 库,包括 elementUI 等非 uni-app 的 UI 库,但注意这些 for h5 的 ui 库只能在浏览器中使用,无法适配 App 和小程序,按如下操作。

以使用 element-ui 框架为例:

  1. 安装 UI 框架

    npm i element-ui -S

  2. 在 main.js 中引用

    import elementUI from "element-ui";
    import "element-ui/lib/theme-chalk/index.css";

    Vue.use(elementUI);
