更新记录

1.0.0(2019-11-14)

  1. 补充cmd-progress进度条组件中,圈型绘制空白的情况。
  2. 采用canvas绘制

Circle 进度圈

进度圈组件,组件名:cmd-circle,代码块: cmdCircle。

使用方式:

script 中引用组件

import cmdCircle from "@/components/cmd-circle/cmd-circle.vue"
export default {
    components: {cmdCircle}
}

用法:
使用canvas基础圈绘制,实现圆弧进度图、仪表盘功能
代码注释完整,结构清晰,尽可能自定义
非H5端正常绘制无卡顿,H5端只要动态值才显示有卡顿
更多需求功能图表实现,请使用uCharts高性能跨全端图表,

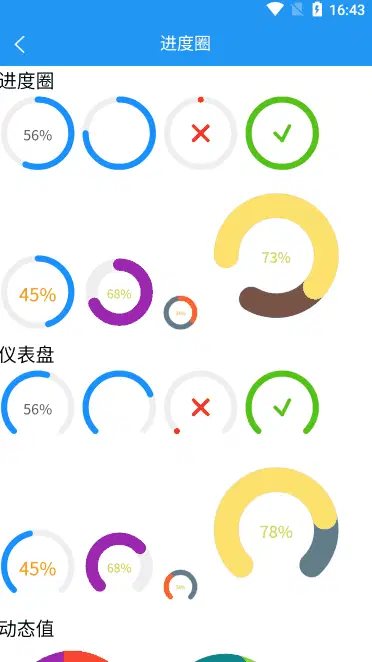

<view>进度圈</view>
<cmd-circle cid="circle10" type="circle" :percent="56"></cmd-circle>
<cmd-circle cid="circle11" type="circle" :percent="75" :showInfo="false"></cmd-circle>
<cmd-circle cid="circle12" type="circle" :percent="30" status="exception"></cmd-circle>
<cmd-circle cid="circle13" type="circle" :percent="89" status="success"></cmd-circle>
<cmd-circle cid="circle14" type="circle" :percent="45" font-color="#ff9800" :font-size="18"></cmd-circle>
<cmd-circle cid="circle15" type="circle" :percent="68" font-color="#cddc39" :font-size="12" stroke-width="12" stroke-color="#9c27b0"></cmd-circle>
<cmd-circle cid="circle16" type="circle" :percent="34" font-color="#cddc39" :font-size="5" width="40" stroke-width="5" stroke-shape="round" stroke-color="#ff5722" stroke-background="#607d8b"></cmd-circle>
<cmd-circle cid="circle17" type="circle" :percent="73" font-color="#cddc39" :font-size="14" width="150" stroke-width="24" stroke-shape="round" stroke-color="#fde16d" stroke-background="#795548" gap-degree="300" gap-position="left"></cmd-circle>

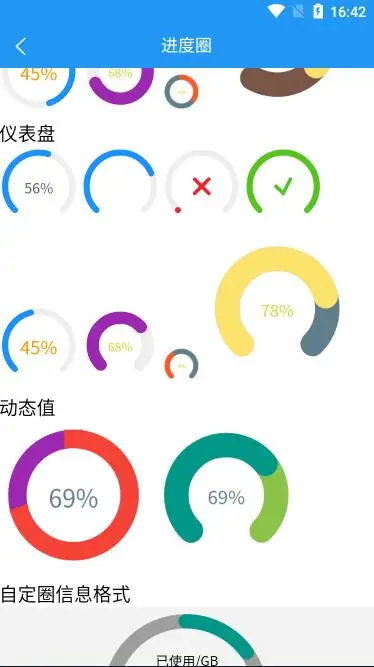

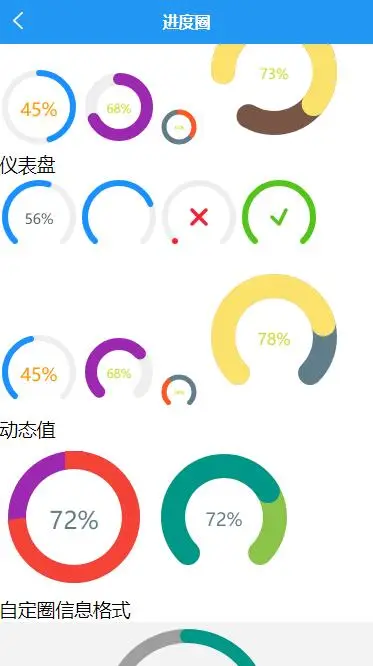

<view>仪表盘</view>
<cmd-circle cid="circle30" type="dashboard" :percent="56"></cmd-circle>
<cmd-circle cid="circle31" type="dashboard" :percent="75" :showInfo="false"></cmd-circle>
<cmd-circle cid="circle32" type="dashboard" :percent="30" status="exception"></cmd-circle>
<cmd-circle cid="circle33" type="dashboard" :percent="89" status="success"></cmd-circle>
<cmd-circle cid="circle34" type="dashboard" :percent="45" font-color="#ff9800" :font-size="18"></cmd-circle>
<cmd-circle cid="circle35" type="dashboard" :percent="68" font-color="#cddc39" :font-size="12" stroke-width="12" stroke-color="#9c27b0"></cmd-circle>
<cmd-circle cid="circle36" type="dashboard" :percent="34" font-color="#cddc39" :font-size="5" width="40" stroke-width="5" stroke-shape="round" stroke-color="#ff5722" stroke-background="#607d8b"></cmd-circle>
<cmd-circle cid="circle37" type="dashboard" :percent="78" font-color="#cddc39" :font-size="16" width="150" stroke-width="24" stroke-shape="round" stroke-color="#fde16d" stroke-background="#607d8b"></cmd-circle>
<view>动态值</view>
<cmd-circle cid="circle18" type="circle" :percent="p" font-color="#607d8b" :font-size="24" width="150" stroke-width="18" stroke-shape="square" stroke-color="#f44336" stroke-background="#9c27b0"></cmd-circle>
<cmd-circle cid="circle38" type="dashboard" :percent="p" font-color="#607d8b" :font-size="18" width="150" stroke-width="24" stroke-shape="round" stroke-color="#009688" stroke-background="#8bc34a"></cmd-circle>
<view>自定圈信息格式</view>
<view style="display: flex;justify-content: center;position: relative;background: #f3f3f3;height: 360rpx;overflow: hidden;">
  <cmd-circle cid="circle19" type="circle" :percent="3 /20 * 100" :showInfo="false" width="180" stroke-width="14" stroke-shape="round" stroke-color="#009688" stroke-background="#9e9e9e"></cmd-circle>
  <view style="position: absolute;text-align: center;top: 25%;">
    <view style="font-size: 28rpx;">已使用/GB</view>
    <view style="font-size: 42rpx;font-weight: bold;padding-bottom: 28rpx;">3.33GB</view>
    <view style="font-size: 28rpx;">总流量畅享</view>
  </view>
</view>
<view style="display: flex;justify-content: center;position: relative;height: 360rpx;overflow: hidden;">
  <cmd-circle cid="circle39" type="dashboard" :percent="19.45 /20 * 100" :showInfo="false" width="200" stroke-width="14" stroke-shape="round" stroke-color="#ff9800" stroke-background="#f5f5f5"></cmd-circle>
  <view style="position: absolute;text-align: center;top: 30%;">
    <view style="font-size: 32rpx;">亲,流量告急</view>
    <view style="font-size: 64rpx;font-weight: bold;">19.45</view>
    <view style="font-size: 36rpx;">GB</view>
  </view>
</view>

属性说明:

属性名 类型 默认值 说明
cid String defaultCanvas 画布编号
type String circle 进度圈类型 - 圆圈形:circle、仪表盘:dashboard
percent Number 0 进度圈百分比值 - 显示范围0-100 ,可能数比较大就需要自己转成百分比的值
show-info Boolean true 进度圈进度状态信息 - 显示进度数值或状态
font-color String #595959 进度圈文字信息颜色
font-size Number 14 进度圈文字信息大小
status String normal 进度圈状态 - 正常:normal、完成:success、失败:exception
stroke-width Number 6 进度圈线条宽度 - 建议在条线的宽度范围:1-50,与进度条显示宽度有关
stroke-color String 进度圈的颜色 - 改变status状态无效
stroke-background String #eeeeee 进度圈的底圈颜色
stroke-shape String round 进度圈两端的形状 - 圆:round、方直角:square
width Number 80 进度圈布宽度
gap-degree Number 0 进度圈形缺口角度 - 可取值 0 ~ 360,仅支持类型:circle
gap-position String top 进度圈形缺口位置 - 可取值'top', 'bottom', 'left', 'right',仅支持类型:circle

隐私、权限及商业化声明

1. 本插件需要申请的手机端权限列表:

2. 本插件采集的手机端数据、发送的服务器地址、以及数据用途说明:

3. 本插件是否包含广告,如包含需详细说明广告表达方式、展示频率:

无广告,易修改、清晰代码

使用中有什么不明白的地方,就向插件作者提问吧~ 我要提问
