wo-slider 滑块组件

采用touchstart、touchmove、touchend事件实现的滑块组件,支持H5、微信小程序(其他小程序未试过,可自行尝试) 参考文章:https://blog.csdn.net/qq_42278240/article/details/132423428

props属性

isShowEndSlider

是否显示结束滑块

isShowEndSlider: {
    type: Boolean,
    default: true,
},

height

滑道高度(rpx单位)

height: {
    type: Number,
    default: 80,
},

sliderSize

滑块大小

sliderSize: {
    type: Number,
    default: 80
},

round

圆角滑道

round: {
    type: Object,
    default: function () {
        return { show: false, style: '1rpx solid #C8C9CC' }
    }
},

border

边框样式

border: {
    type: Object,
    default: function () {
        return { show: true, style: '1rpx solid #C8C9CC' }
    }
}

插槽

起始滑块自定义

v-slot:begin

<wo-slider>
    <template v-slot:begin>
        <view style="background-color: #E5673B; height: 100%; display: flex; justify-content: center; align-items: center">
            <image style="height: 50rpx;width: 50rpx;" src="@/static/arrow-right-bold.svg"></image>
        </view>
    </template>
</wo-slider>

终点滑块自定义

v-slot:end

<wo-slider>
    <template v-slot:end>
        <view style="background-color: #1BA035; height: 100%; display: flex; justify-content: center; align-items: center">
            <image style="height: 50rpx;width: 50rpx;" src="@/static/select-bold.svg"></image>
        </view>
    </template>
</wo-slider>

滑道-初始态内容自定义

v-slot:init

可在此自定义滑动结束前的背景、内容信息等

<wo-slider>
    <template v-slot:init>
        <view style="background-color: #107BBA; color: #fff; height: 100%; display: flex; justify-content: center;align-items: center;">😀滑动解锁大礼包</view>
    </template>
</wo-slider>

滑道-成功态内容自定义

v-slot:isFinished

可在此自定义滑动结束后的成功态背景色、以及内容信息等.

一般结合@slideFinish事件动态设置滑动结束后的内容信息,这样可以做到滑动结束后才显示内容信息

<wo-slider @slideFinish="onFinish">
    <template v-slot:isFinished>
        <view style="height: 100%;background-color: #FF5F2F; color: #fff; display: flex; justify-content: center;align-items: center;">
            <view>
                {{content}}
            </view>
        </view>
    </template>
</wo-slider>
methods: {
    onFinish(e) {
        console.log('滑动完成', e);
        this.content = '😊验证成功'
    }
}

事件

@slideFinish

滑动结束后执行,

参数

  • status属性: 滑动结束标志,值为:success
  • resetFunc函数:重置函数,滑块回到原点

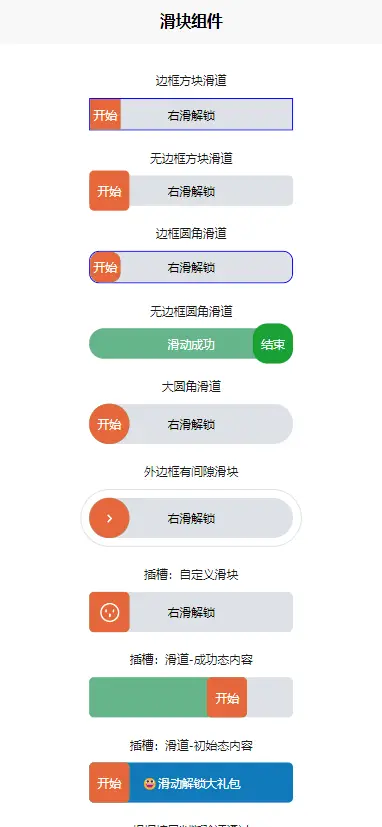

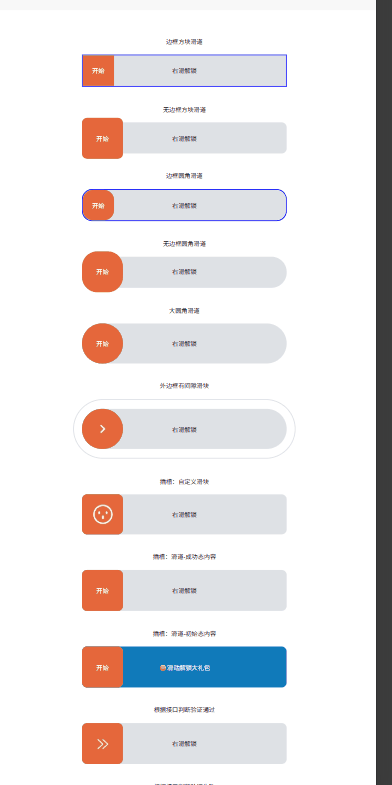

代码使用示例

<template>
    <view style="height: 100vh;font-size: 12rpx;margin-top: 20px;">
        <view v-for="(item, index) in compOptions" :key="index" style="display: flex; justify-content: center; align-items: center;padding: 10px;">
            <view style="width: 400rpx;">
                <view style="margin-bottom: 10px; text-align: center;">{{ item.title }}</view>
                <wo-slider
                 :height="item.height"
                 :round="item.round"
                 :border="item.border"
                 :slider-size="item.sliderSize"
                 @slideFinish="onFinish">
                </wo-slider>
            </view>
        </view>
        <view style="display: flex; justify-content: center; align-items: center; padding: 10px;">
            <view>
                <view style="margin-bottom: 10px; text-align: center;">
                    外边框有间隙滑块
                </view>
                <view style="border: 1rpx solid #DEE1E6; padding: 16rpx; border-radius: 80rpx;width: 400rpx;">
                    <wo-slider @slideFinish="onFinish" :is-show-end-slider="false" :round="{show: true, style: '80rpx'}">
                        <template v-slot:begin>
                            <view style="background-color: #E5673B; height: 100%; display: flex; justify-content: center; align-items: center">
                                <img style="height: 50rpx;width: 50rpx;" src="/static/right.png" alt="logo"></img>
                            </view>
                        </template>
                        <template v-slot:end>
                            <view style="background-color: #1BA035; height: 100%; display: flex; justify-content: center; align-items: center">
                                <image style="height: 50rpx;width: 50rpx;" src="../../static/select-bold.png"></image>
                            </view>
                        </template>
                    </wo-slider>
                </view>
            </view>
        </view>
        <view style="display: flex; justify-content: center; align-items: center; padding: 10px;">
            <view style="width: 400rpx;">
                <view style="margin-bottom: 10px; text-align: center;">
                    插槽:自定义滑块
                </view>
                <wo-slider @slideFinish="onFinish" :round="{show: true, style: '10rpx'}">
                    <template v-slot:begin>
                        <view style="background-color: #E5673B; height: 100%; display: flex; justify-content: center; align-items: center">
                            <image style="height: 50rpx;width: 50rpx;" src="/static/wow.png"></image>
                        </view>
                    </template>
                    <template v-slot:end>
                        <view style="background-color: #1BA035; height: 100%; display: flex; justify-content: center; align-items: center">
                            <image style="height: 50rpx;width: 50rpx;" src="/static/smile.png"></image>
                        </view>
                    </template>
                </wo-slider>
            </view>
        </view>
        <view style="display: flex; justify-content: center; align-items: center; padding: 10px;">
            <view style="width: 400rpx;">
                <view style="margin-bottom: 10px; text-align: center;">
                    插槽:滑道-成功态内容
                </view>
                <wo-slider
                 @slideFinish="onFinishSuccess" :round="{show: true, style: '10rpx'}">
                    <template v-slot:isFinished>
                        <view style="height: 100%;background-color: #65B58A; color: #fff; display: flex; justify-content: center;align-items: center;">
                            <view>
                                {{content}}
                            </view>
                        </view>
                    </template>
                </wo-slider>
            </view>
        </view>
        <view style="display: flex; justify-content: center; align-items: center; padding: 10px;">
            <view style="width: 400rpx;">
                <view style="margin-bottom: 10px; text-align: center;">
                    插槽:滑道-初始态内容
                </view>
                <wo-slider @slideFinish="onFinish" :round="{show: true, style: '10rpx'}">
                    <template v-slot:init>
                        <view style="background-color: #107BBA; color: #fff; height: 100%; display: flex; justify-content: center;align-items: center;">😀滑动解锁大礼包</view>
                    </template>
                </wo-slider>
            </view>
        </view>
        <view style="display: flex; justify-content: center; align-items: center; padding: 10px;">
            <view style="width: 400rpx;">
                <view style="margin-bottom: 10px; text-align: center;">
                    根据接口判断验证通过
                </view>
                <wo-slider
                 @slideFinish="onFinishOne" :round="{show: true, style: '10rpx'}">
                    <template v-slot:isFinished>
                        <view :style="{backgroundColor: loadingOne ? '#709bff' : signOne ? '#65B58A' : '#ed9576'}" style="height: 100%; color: #fff; display: flex; justify-content: center;align-items: center;">
                            <view>
                                {{resOne}}
                            </view>
                        </view>
                    </template>
                    <template v-slot:begin>
                        <view style="background-color: #E5673B; height: 100%; display: flex; justify-content: center; align-items: center">
                            <image style="height: 30rpx;width: 30rpx;" src="@/static/arrow-double-right.png"></image>
                        </view>
                    </template>
                    <template v-slot:end>
                        <view :style="{backgroundColor: loadingOne ? '#3370FF' : signOne ? '#1BA035' : '#E23E31'}" style=" height: 100%; display: flex; justify-content: center; align-items: center">
                            <view class="spinner" v-if="loadingOne">
                              <view class="double-bounce1"></view>
                              <view class="double-bounce2"></view>
                            </view>
                            <image v-else style="height: 30rpx;width: 30rpx;" :src="signOne ? successImg : closeImg"></image>
                        </view>
                    </template>
                </wo-slider>
            </view>
        </view>
        <view style="display: flex; justify-content: center; align-items: center; padding: 10px;">
            <view style="width: 400rpx;">
                <view style="margin-bottom: 10px; text-align: center;">
                    根据接口判断验证失败
                </view>
                <wo-slider
                 @slideFinish="onFinishTwo" :round="{show: true, style: '10rpx'}">
                    <template v-slot:isFinished>
                        <view :style="{backgroundColor: loading ? '#709bff' : sign ? '#65B58A' : '#ed9576'}" style="height: 100%; color: #fff; display: flex; justify-content: center;align-items: center;">
                            <view>
                                {{res}}
                            </view>
                        </view>
                    </template>
                    <template v-slot:begin>
                        <view style="background-color: #E5673B; height: 100%; display: flex; justify-content: center; align-items: center">
                            <image style="height: 50rpx;width: 50rpx;" src="@/static/right.png"></image>
                        </view>
                    </template>
                    <template v-slot:end>
                        <view :style="{backgroundColor: loading ? '#3370FF' : sign ? '#1BA035' : '#E23E31'}" style=" height: 100%; display: flex; justify-content: center; align-items: center">
                            <view class="spinner" v-if="loading">
                              <view class="double-bounce1"></view>
                              <view class="double-bounce2"></view>
                            </view>
                            <image v-else style="height: 50rpx;width: 50rpx;" :src="sign ? successImg : closeImg"></image>
                        </view>
                    </template>
                </wo-slider>
            </view>
        </view>
        <view style="padding-top: 100rpx;">
            <button @click="clickEvent">重置</button>
        </view>
    </view>
</template>

<script>
    import refreshImg from '../../static/refresh.png'
    import closeImg from '../../static/close.png'
    import successImg from '../../static/select-bold.png'
    export default {
        data() {
            return {
                content: '',
                res: '',
                loading: true,
                sign: false,
                resOne: '',
                loadingOne: true,
                signOne: false,
                resetFuncList: [],
                refreshImg: refreshImg,
                closeImg: closeImg,
                successImg: successImg,
                compOptions: [
                    {
                        title: '边框方块滑道',
                        height: 60,
                        sliderSize: 60,
                        width: 400,
                        round: {show: true, style: "0rpx"},
                        border: {show: true, style: '1rpx solid blue'}
                    },
                    {
                        title: '无边框方块滑道',
                        height: 60,
                        sliderSize: 80,
                        width: 400,
                        round: {show: true, style: "10rpx"},
                        border: {show: false, style: ''},
                    },
                    {
                        title: '边框圆角滑道',
                        height: 60,
                        sliderSize: 60,
                        width: 400,
                        round: {show: true, style: "20rpx"},
                        border: {show: true, style: '1rpx solid blue'}
                    },
                    {
                        title: '无边框圆角滑道',
                        height: 60,
                        sliderSize: 80,
                        width: 400,
                        round: {show: true, style: "30rpx"},
                        border: {show: false, style: ''}
                    },
                    {
                        title: '大圆角滑道',
                        height: 80,
                        sliderSize: 80,
                        width: 500,
                        round: {show: true, style: "40rpx"},
                        border: {show: false, style: ''}
                    }
                ]
            }
        },
        methods: {
            onFinish(e) {
                console.log('滑动完成', e);
                this.resetFuncList.push(e.resetFunc)
            },
            onFinishSuccess(e) {
                this.resetFuncList.push(e.resetFunc)
                this.content = '😊验证成功'
            },
            clickEvent() {
                this.resetFuncList.forEach((item) => {
                    item()
                })
                this.content = ''
            },
            onFinishOne(e) {
                this.resetFuncList.push(e.resetFunc)
                this.loadingOne = true
                this.resOne = '⏳验证中...'
                setTimeout(()=> {
                    this.signOne = true
                    this.loadingOne = false
                    this.resOne = '✅验证成功'
                }, 3000)
            },
            onFinishTwo(e) {
                this.resetFuncList.push(e.resetFunc)
                this.loading = true
                this.res = '⏳验证中...'
                setTimeout(()=> {
                    this.sign = false
                    this.loading = false
                    this.res = '⚠验证失败'
                }, 3000)
            }
        }
    }
</script>

<style>
    .content {
        display: flex;
        flex-direction: column;
        align-items: center;
        justify-content: center;
    }

    .logo {
        height: 200rpx;
        width: 200rpx;
        margin-top: 200rpx;
        margin-left: auto;
        margin-right: auto;
        margin-bottom: 50rpx;
    }

    .text-area {
        display: flex;
        justify-content: center;
    }

    .title {
        font-size: 36rpx;
        color: #8f8f94;
    }
    .spinner {
      width: 20px;
      height: 20px;

      position: relative;
      margin: 100px auto;
    }

    .double-bounce1, .double-bounce2 {
      width: 100%;
      height: 100%;
      border-radius: 50%;
      background-color: #fff;
      opacity: 0.6;
      position: absolute;
      top: 0;
      left: 0;

      -webkit-animation: sk-bounce 2.0s infinite ease-in-out;
      animation: sk-bounce 2.0s infinite ease-in-out;
    }

    .double-bounce2 {
      -webkit-animation-delay: -1.0s;
      animation-delay: -1.0s;
    }

    @-webkit-keyframes sk-bounce {
      0%, 100% { -webkit-transform: scale(0.0) }
      50% { -webkit-transform: scale(1.0) }
    }

    @keyframes sk-bounce {
      0%, 100% {
        transform: scale(0.0);
        -webkit-transform: scale(0.0);
      } 50% {
        transform: scale(1.0);
        -webkit-transform: scale(1.0);
      }
    }
</style>

隐私、权限声明

1. 本插件需要申请的系统权限列表:

2. 本插件采集的数据、发送的服务器地址、以及数据用途说明:

插件不采集任何数据

3. 本插件是否包含广告,如包含需详细说明广告表达方式、展示频率:

许可协议

MIT协议

使用中有什么不明白的地方,就向插件作者提问吧~ 我要提问
